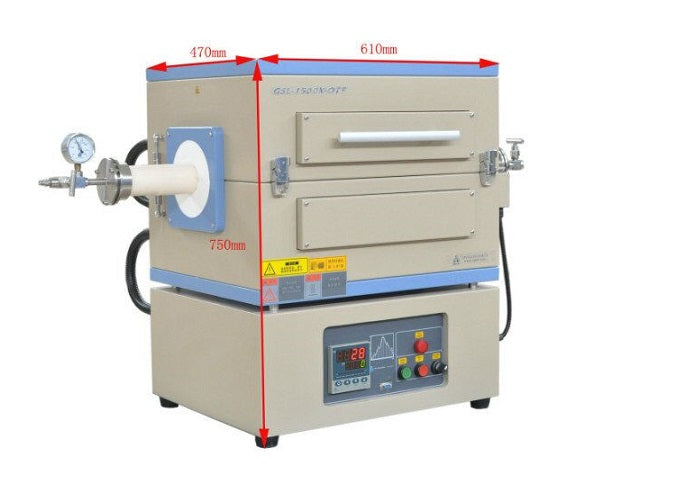

1600°C Split Tube Furnace w/ Vac. Flanges & Valves, Optional 60 or 80mm Alumina Tube - OTF-1600X-UL

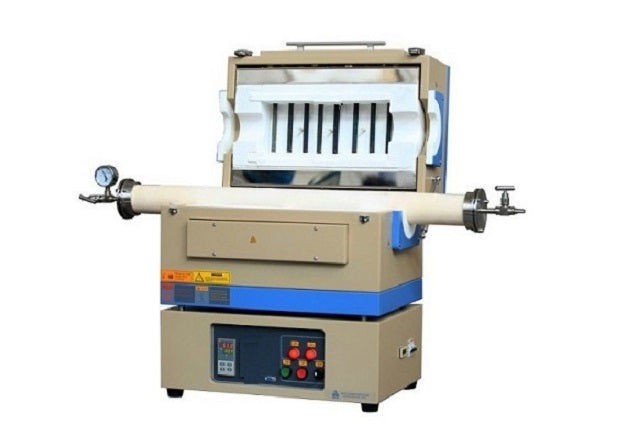

OTF-1600X-I series furnace is UL/TUV standard split-able alumina tube furnaces with Kanthal GLOBAR SG 1650 grade SiC Heating Elements . The furnace can install with 60 or 80mm O.D high-quality alumina tubes along with a pair of smart stainless steel vacuum sealing flanges that can take either a valve/gauge which allows for heating samples under vacuum or flowing gas conditions up to 1600°C. The precision temperature controller can provide 30 segments of heating and cooling steps with +/- 1°C accuracy.

SPECIFICATIONS

Options	OTF-1600X-60	OTF-1600X-80
Alumina Tube	O.D: 60 x I.D: 54 x L1000 mm (click underlined for specs)	O.D: 80 x I.D:74 mm x L 1000 mm (click underlined for specs)
Furnace Structure	Double-layer steel casing with air cooling to keep furnace surface temperature lower than 60°C. High purity fibrous alumina insulation for Max. Energy-saving. The special refractory coating on the furnace inner and heating element to increase furnace life. Two fibrous ceramic tube blocks are included for blocking heat radiation from inside the tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating)
Input Voltage	208 - 240VAC SINGLE PHASE, 50/60Hz
Power	6.0 KW
Heating Temperatures	Max. Heating temperature: 1550°C Continuously heating temperature: 1500°C ( without Vacuum) Continuously heating temperature: 1400°C ( under vacuum) Heating rate: 10°C /min Max.
Heating Zone	Total heating zone length: 390mm Constant temperature zone: 160mm (+/-1°C)

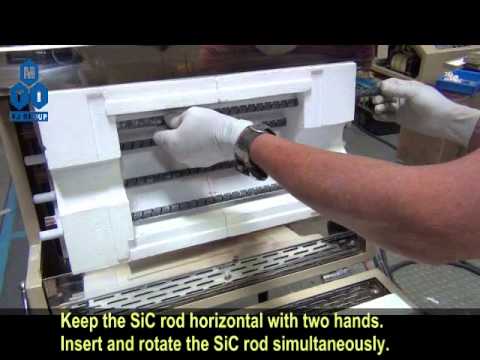

Heating Elements	16 pcs 1600 grade SiC Heating Element
Temperature Controller	FA-YD518P-AG temperature controller is included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 / PC communication port
Temperature controller (optional)	MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software package.  You may upgrade the temperature controller to the Eurotherm 3504 Temperature Controller which is entirely compatible with LabVIEW. This package includes a Eurotherm 3504 programmer, a communication cable (RS485 - USB), and a software CD. Click the pic below to view the full spec of the Eurotherm 3004 temperature controller.
Vacuum Sealing	Two stainless steel flanges with the vacuum gauge and valves. 1/4" pipe and KF25 adapters are installed in two ends respectively. For a fast & better vacuum, suggest you use stainless steel pipe ( click to order at extra cost ), as well as a digital vacuum gauge. Two pairs of fibrous ceramic tube blocks are included for blocking heat radiation from the inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating)
Vacuum Levels	10^-2 torr by the mechanical vacuum pump. 10^-5 torr by a molecular pump. Leak rate < 5 mtorr / min. The vacuum pump is not included, please click the picture1 choose . You may choose a gas delivery system ( Click Picture 3 )           Pic. 1Pic. 3  The vacuum pump is not included; please order separately at the related products section
Power Cable & Plug	10 feet long 10-3 AWG heavy duty UL approved power cable is included. Extra length cable can be ordered by clicking picture left The plug is not included. Browse our catalog for compatible plugs or obtain one from a local hardware store.
Laptop, software & WiFi Control (Optional)	Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial)  Labview Based Temperature Control System (MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, record, and plot data for MTI furnaces. A wireless remote control provides up to 300 meters of operating range. The above features are available upon request at an extra cost (up to $1,000).
Compliance	CE Certified NRTLor CSA certification is available at an extra cost.
Application Notes	Please click here to see our typical temperature profile calibration result at various temperatures. Temperature calibration is necessary for obtaining accurate temperature inside a tube furnace. Please, click here to review the details.
Warnings Click here to learn more about the installation of a gas regulator	The tube furnaces with alumina tube are designed for using under vacuum and low pressure < 0.02 MPa  Never use graphite crucible an alumina tube. Attention: A two-stage pressure regulator must be installed on a gas cylinder to limit the-the pressure to below 3 PSI for safe operation.

STANDARD PACKAGE

	Description	Qty	Pic	OTF-1600X-60	OTF-1600X-80
1	Alumina Foam Block for tube furnace	1 pair		F-T-block-52	F-T-block-70
2	Vacuum flanges	1 pair		FL-60	FL-80
3	Alumina tubing	1 unit		TA-60D-M1000	TA-80D-M1000

AVAILABLE OPTIONAL ACCESSORIES

Part No.	Description	Quick Link
KF-suite	KF-D25 series Vacuum Suite(vacuum pump, vacuum ball valve, vacuum bellows, quick clamps, KF adapter) Also you may buy individually.
CVM-211	Compact Digital Vacuum Gauge & Controller with Power Supply (Up to 10-4 Torr)
	High vacuum station (Mechanical pump + turbo molecular pump.)
	Gas mix station (Float flow meter / Mass flow meter)(2, 3, 4channels selectable)
	Compact Flow Meter (float flow meter / mass flow meter)
	Quartz tube block /heat insulating tube block
	Quartz Boats /crucible /container /sample holder
FM-Cart	Heavy Duty Mobile Car for All MTI Tube and Box Furnaces
	Vacuum flange fittings and assembly
