NIST Traceable Digital Convection Vacuum Gauge with Power Supply - Up to 1E-4 Torr - CVM211LD
  • NIST Traceable Digital Convection Vacuum Gauge with Power Supply - Up to 1E-4 Torr - CVM211LD
NIST Traceable Digital Convection Vacuum Gauge with Power Supply - Up to 1E-4 Torr - CVM211LD

NIST Traceable Digital Convection Vacuum Gauge with Power Supply - Up to 1E-4 Torr - CVM211LD

SKU: cvm211ld

Price: RFQ

Description

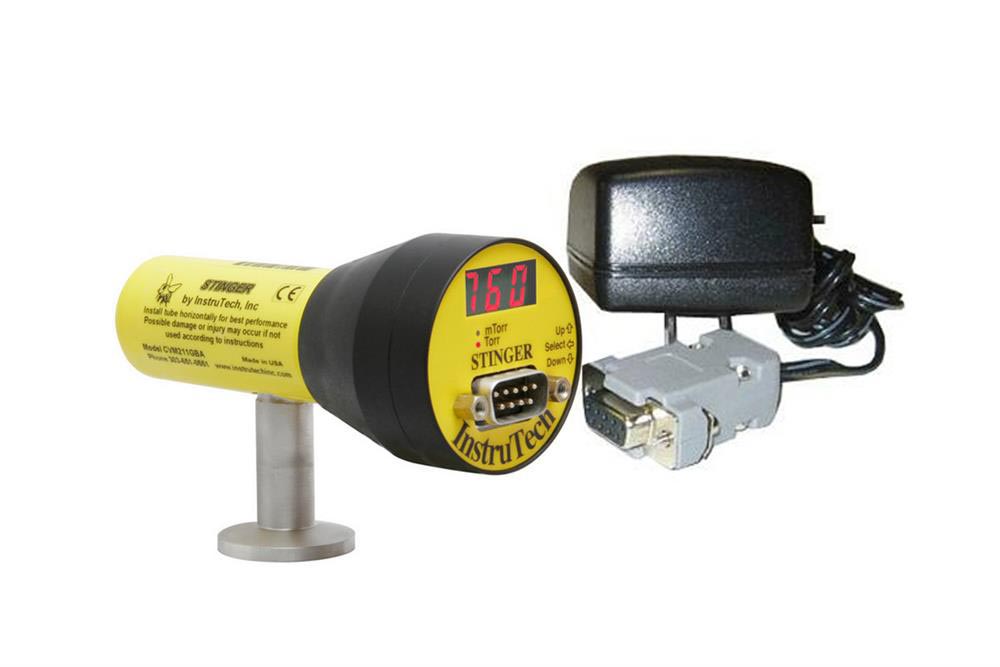

 The EQ-CVM-211 Stinger module provides the basic signal conditioning required to turn a convection vacuum gauge into a complete measuring instrument. A built-in display provides a convenient user interface for setup and operation of the vacuum gauge. Its platinum-plated tungsten sensor wire can resist most of aggressive gases such as H2S, Ammonia, HCl, etc. Note1: This is a NEW Anti-corrosive version, available since Dec. 2013 Note2: Update to KF16 Interface from Nov.09 2015 SPECIFICATIONS Features Convection enhanced the Pirani vacuum gauge module with an on-board controller. Wide measurement range 10 -4 to 1000 Torr. Bright LED digital display with measurement unit torr /mtorr Includes built-in digital display, set-point relay, analog output. Updated to KF-16 interface for Quick-Mount. 9 pins D connector and power supply adaptor is included Input Voltage for Power Adaptor 110V~220V, 1.1 m long cable Plug Type: Type A (US plug) Please use a plug converter to convert the plug type if used outside of the US. Working Voltage for the Gauge 11 to 30 Vdc, protected against power reversal, transients, and over-voltages Output 1) log-linear 1 to 8 Vdc , 1V/decade, or 2) non-linear analog S-curve 0.375 to 5.659 Vdc (Helix/GP compatible) Measurement Range (signal) 1x10E -4 to 1000 Torr click to see the conversion of the pressure unit This gauge is calibrated for direct readout of nitrogen or air. Do not attempt to use with other gases such as argon (Ar) or carbon dioxide (CO2) unless accurate conversion data (provided in the User Manual) for N2 to other gas is properly used. Display 3 digit LED (3 digits from 999 Torr to 10.0 mTorr), (2 digit LED from 9.9 mTorr to 1.0 mTorr), (1 digit LED from 0.9 mTorr to 0.1 mTorr) Materials Exposed to Gases Platinum-iridium alloy Operating Temperature 0 to +40ºC Digital Vacuum Gauge Dimensions Compliance CE certified Traceable to NIST standards in accordance with ISO/IEC 17025 Optional Fitting Connection (Please click pic to order) Quick Clamp with Rubber O-Ring for KF-D16 Vacuum adaptor M14 / 1/4 BSPP Male to KF-16 Adapter Options The vacuum gauge & controller can be connected with MTI flange easily.  ( click Picture -left to see details), and click the picture below -middle to choose a vacuum flange Please click the picture below right to order a complete control system for a processing tube Application Notes One 12V 500mA Dc power  and RS232 connector ( 9 pin D connector)  is included and ready to use You must calibrate "Zero Point" under 10 -4 Torr before measuring the vacuum system from 10 -4 - 10 -3 Torr, otherwise, the gauge may not display accurately in that range. For a detailed calibration procedure, please refer to the operation manual below. MTI can help customers finish the "Zero Point" calibration before shipping upon the customer's special request at an extra $100. Please consider using the EQ-PGC-554-LD for corrosive gases. Operation Manual Weight 136 g  (4.8 oz)


Features
  • Convection enhanced the Pirani vacuum gauge module with an on-board controller.
  • Wide measurement range 10-4 to 1000 Torr.
  • Bright LED digital display with measurement unit torr /mtorr
  • Includes built-in digital display, set-point relay, analog output.
  • Updated to KF-16 interface for Quick-Mount.
  • 9 pins D connector and power supply adaptor is included
Input Voltage for Power Adaptor 110V~220V, 1.1 m long cable
Plug Type: Type A (US plug)
Please use a plug converter to convert the plug type if used outside of the US.
Working Voltage for the Gauge 11 to 30 Vdc, protected against power reversal, transients, and over-voltages
Output

1) log-linear 1 to 8 Vdc , 1V/decade, or
2) non-linear analog S-curve 0.375 to 5.659 Vdc (Helix/GP compatible)

Measurement Range (signal)  		This gauge is calibrated for direct readout of nitrogen or air. Do not attempt to use with other gases such as argon (Ar) or carbon dioxide (CO2) unless accurate conversion data (provided in the User Manual) for N2 to other gas is properly used.
Display

3 digit LED (3 digits from 999 Torr to 10.0 mTorr),
(2 digit LED from 9.9 mTorr to 1.0 mTorr), (1 digit LED from 0.9 mTorr to 0.1 mTorr)
Materials Exposed to Gases

Platinum-iridium alloy
Operating Temperature

0 to +40ºC
Digital Vacuum Gauge Dimensions
Compliance
  • CE certified
  • Traceable to NIST standards in accordance with ISO/IEC 17025
Optional
Fitting Connection
(Please click pic to order)
  • Quick Clamp with Rubber O-Ring for KF-D16 Vacuum adaptor
  • M14 / 1/4 BSPP Male to KF-16 Adapter

Options
  • The vacuum gauge & controller can be connected with MTI flange easily.  ( click Picture -left to see details), and click the picture below -middle to choose a vacuum flange
  • Please click the picture below right to order a complete control system for a processing tube
           Stainless Steel Sealing Flange Assembly for 1"-11" Processing Tubes



Application Notes
  • One 12V 500mA Dc power  and RS232 connector ( 9 pin D connector)  is included and ready to use
  • You must calibrate "Zero Point" under 10-4 Torr before measuring the vacuum system from 10-4 - 10-3 Torr, otherwise, the gauge may not display accurately in that range. For a detailed calibration procedure, please refer to the operation manual below.
  • MTI can help customers finish the "Zero Point" calibration before shipping upon the customer's special request at an extra $100.
  • Please consider using the EQ-PGC-554-LD for corrosive gases.

Operation Manual
Weight 136 g  (4.8 oz)
