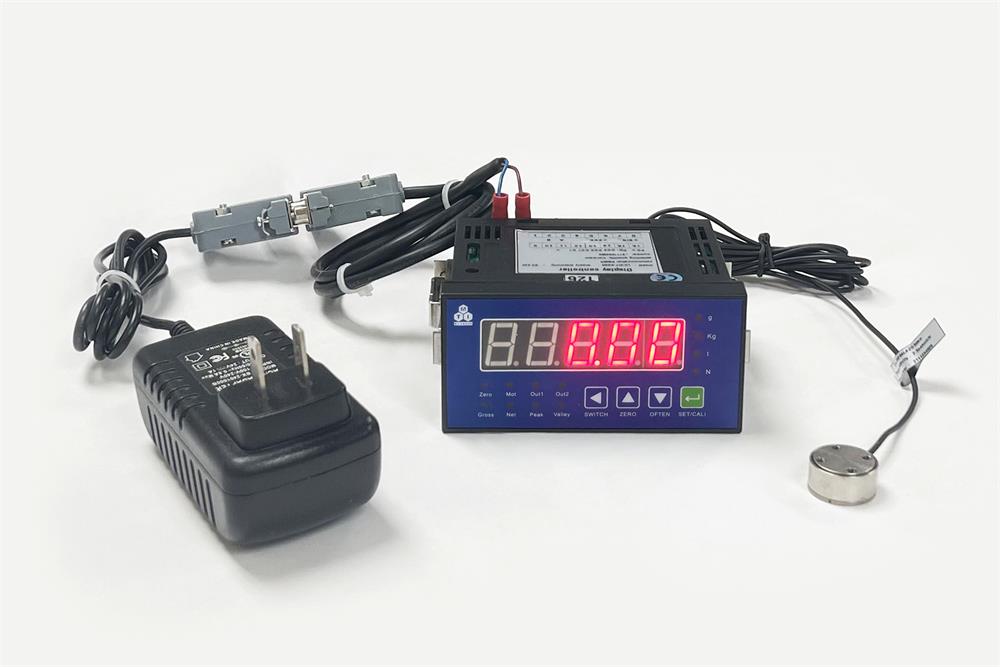

0- 100Kg Pressure Sensor Kit: Load cell+ + Digital Meter - EQ-LC-KIT-KG100

EQ-LC-KIT-KG100 is designed to measure low pressure up to 100 kg for a small jig and pressing machine. The Digital Panel Meter is capable of being an indicator or controller of the load cell with 4-digit standard LED display. The scaling capability of the meter also allows for displaying all engineering units. The wide DC current input ranges cover typical strain applications. The front panel includes several buttons to program, zero, and record the measurement.

Power Input	100 - 240VAC power adapter is pre-installed.
Output	2 mV/V nominal
Max Loading	100 Kg (1000N)
Repeatability	±0.10% - 0.30 FSO
Operating Temp Range	-20 to 80 °C (-65 to 250°F)
Ultimate Overload	200% of Capacity
Construction	Stainless Steel
Dimension
