Alumina Foam Block: 70 mm Diameter (one pair) for MTI's 80mm Tube Furnace -FTB70
  • Alumina Foam Block: 70 mm Diameter (one pair) for MTI's 80mm Tube Furnace -FTB70
Alumina Foam Block: 70 mm Diameter (one pair) for MTI's 80mm Tube Furnace -FTB70

Alumina Foam Block: 70 mm Diameter (one pair) for MTI's 80mm Tube Furnace -FTB70

SKU: ftb70

Price: RFQ

Description

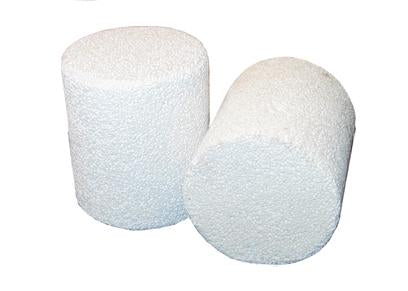

 MTI corporation provides the high-quality Alumina (Al 2 O 3 ) foam block for high-temperature tubing furnaces in universities, companies, and national labs. It comes with the specifications as the following: Max. working temperature: < 1700ºC Diameter: 70 mm (2.76") ± 2mm (0.08") Length: 50 mm (2") ± 2mm (0.08") The blocks must be put between the sample the and flange. Fit MTI's GSL1600-80X Bench-top High-Temperature Tubing Vacuum Furnace and GSL1700-80X Bench-top High-Temperature Tubing Vacuum Furnace. Application Note : To prevent dust falling issue and ensure a cleaning process, it is suggested to apply a thin layer of alumina adhesive material on the surface of the foam block. Please click underline to order. For direct delivery of precursor gasses over the heating zone, customer may drill a hole in the alumina block for sticking a 1/4" O.D. quartz (<1200ºC) or alumina (<1700ºC) tube to deliver gas into the furnace tube center. Porous alumina block is very soft and it can be hand-drilled through easily. Click to Watch the video “How to insert and remove foam block for MTI furnaces”. Click to Watch the video "How to modify the thermal blocks". Inspect your delivery: Please check package for damages before accepting delivery. Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI. No Warranty: Kindly note this item is a consumable part, and not covered by warranty. Make sure to inspect for defect(s) thoroughly before use.
