2-9 Channel Gas Control System with PLC Touch Panel and PC Operation Software - GSL-LCD
  • 2-9 Channel Gas Control System with PLC Touch Panel and PC Operation Software - GSL-LCD
  • 2-9 Channel Gas Control System with PLC Touch Panel and PC Operation Software - GSL-LCD
2-9 Channel Gas Control System with PLC Touch Panel and PC Operation Software - GSL-LCD

2-9 Channel Gas Control System with PLC Touch Panel and PC Operation Software - GSL-LCD

SKU: gsl-lcd

Price: RFQ

Specifications

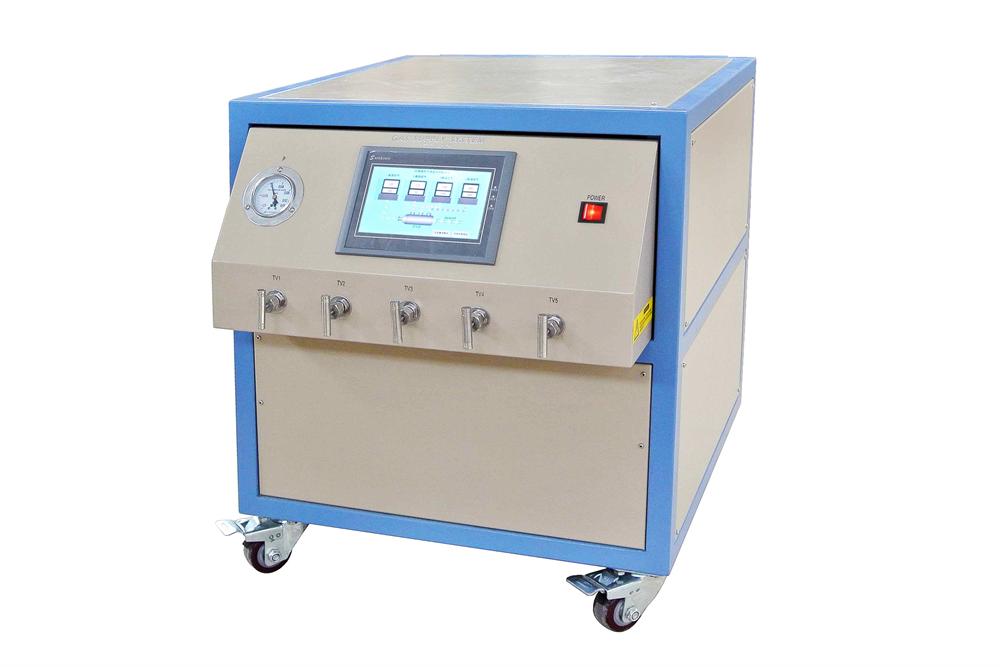

 GSL-LCD gas mixing station is designed for the control of 1-9 types of gasses flowing through vacuum-sealed tube furnaces at a low cost. It is installed in a heavy-duty mobile cart where the tube furnace can be placed on the top. LCD touch screen is integrated to provide easy control of the gas flow rate of each independent channel. Such a system is suitable for using with CVD furnaces to study the gas environmental influence on various materials. SPECIFICATIONS Function Two Channels Three Channels Four Channels Customized Four to Nine Channels Computerized Mass Flow Controller Note: Other range MFC can be customized at extra cost upon request Controlling Range: Controller 1: 1~199 SCCM Controller 2: 1~499 SCCM Controlling Range: Controller 1: 0~100 SCCM Controller 2: 1~199 SCCM Controller 3: 1~499 SCCM Controlling Range: Controller 1: 0~100 SCCM Controller 2: 1~199 SCCM Controller 3: 1~199 SCCM Controller 4: 1~499 SCCM Select Range from below to make Customized 4 to 9 Channels : 0~100 SCCM 1~200 SCCM 1~500 SCCM 1~1000 SCCM 1~2000 SCCM 1~5000 SCCM Accuracy, linearity, and repeatability Accuracy: ±1.5%FS Linearity: ±1%FS Repeatability: ±0.2%FS Working Temp and Pressure Working Temp. : 5~45 ºC Max. Pressure: 3x10 6 Pa Working Voltage AC 110 - 240V Single phase 50/60Hz Power 23W PLC Touch Screen 6" color touch screen control panel to make parameter setting at easy. Touchscreen Control and PC remote switchable, RS485 Port and a supplied software are included for remote operation by PC, not compatible with LabVIEW for now. Mechanical Pressure Gauge Measurement Range: - 0.1~0.15 MPa Needle Valve 316 Stainless Steel Gas Pipeline One stainless steel gas mixing tank is built-in Internal pipeline: 1/4" O.D stainless steel and 1/4" O.D PTFE External pipeline: 1/4" O.D PTFE Gas Mixing Tank Φ 80X120mm Stop Valve & Fittings 316 stainless steel needle valve, Φ 1/4” Swagelok Tube Fitting Dimensions 600mm(L) x 855mm(W) x 700mm(H) Compliance All components are CE certified The unit can pass TUV(UL61010) or CSA certification at extra cost. Warranty One year limited with lifetime support Oxygen Monitoring An Optional oxygen Sensor can be used to monitor the oxygen level of gas(es) used in CVD systems for preventing or reducing oxidation. Please click the picture below to learn more: Application Note Waiting for 15 minutes to warm up the gas mixer and start your gas supply to charge. Related Products CVD & PECVD Furnace Click picture below to order bubbler or evaporator for CVD

Function

Two Channels

Three Channels

Four Channels

Customized Four to Nine Channels

Computerized
Mass Flow Controller

Note: Other range MFC can be customized at extra cost upon request

 Controlling Range:
  • Controller 1: 1~199 SCCM
  • Controller 2: 1~499 SCCM
 Controlling Range:
  • Controller 1: 0~100 SCCM
  • Controller 2: 1~199 SCCM
  • Controller 3: 1~499 SCCM
 Controlling Range:
  • Controller 1: 0~100 SCCM
  • Controller 2: 1~199 SCCM
  • Controller 3: 1~199 SCCM
  • Controller 4: 1~499 SCCM
 Select Range from below to make Customized 4 to 9 Channels:
  • 0~100 SCCM
  • 1~200 SCCM
  • 1~500 SCCM
  • 1~1000 SCCM
  • 1~2000 SCCM
  • 1~5000 SCCM
Accuracy, linearity, and repeatability Accuracy: ±1.5%FS
Linearity: ±1%FS
Repeatability: ±0.2%FS
Working Temp and Pressure Working Temp. : 5~45 ºC
Max. Pressure: 3x106 Pa

Working Voltage

 AC 110 - 240V Single phase 50/60Hz

Power

 23W

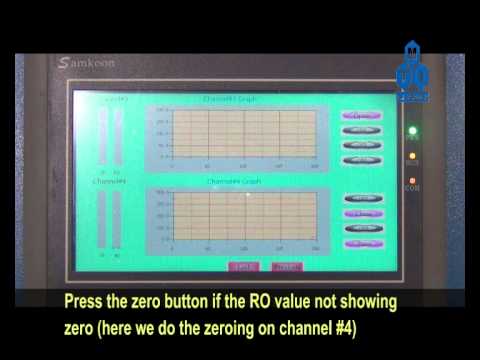

PLC Touch Screen
  • 6" color touch screen control panel to make parameter setting at easy.
  • Touchscreen Control and PC remote switchable, RS485 Port and a supplied software are included for remote operation by PC, not compatible with LabVIEW for now.
Mechanical Pressure Gauge Measurement Range: -0.1~0.15 MPa
Needle Valve 316 Stainless Steel
Gas Pipeline
  • One stainless steel gas mixing tank is built-in
  • Internal pipeline: 1/4" O.D stainless steel and 1/4" O.D PTFE
  • External pipeline: 1/4" O.D PTFE
Gas Mixing Tank Φ80X120mm

Stop Valve & Fittings		 316 stainless steel needle valve,
Φ1/4” Swagelok Tube Fitting
Dimensions 600mm(L) x 855mm(W) x 700mm(H)
Compliance
  • All components are CE certified
  • The unit can pass TUV(UL61010) or CSA certification at extra cost.
Warranty
 One year limited with lifetime support
Oxygen Monitoring
  • An Optional oxygen Sensor can be used to monitor the oxygen level of gas(es) used in CVD systems for preventing or reducing oxidation. Please click the picture below to learn more:
Application Note
  • Waiting for 15 minutes to warm up the gas mixer and start your gas supply to charge.
