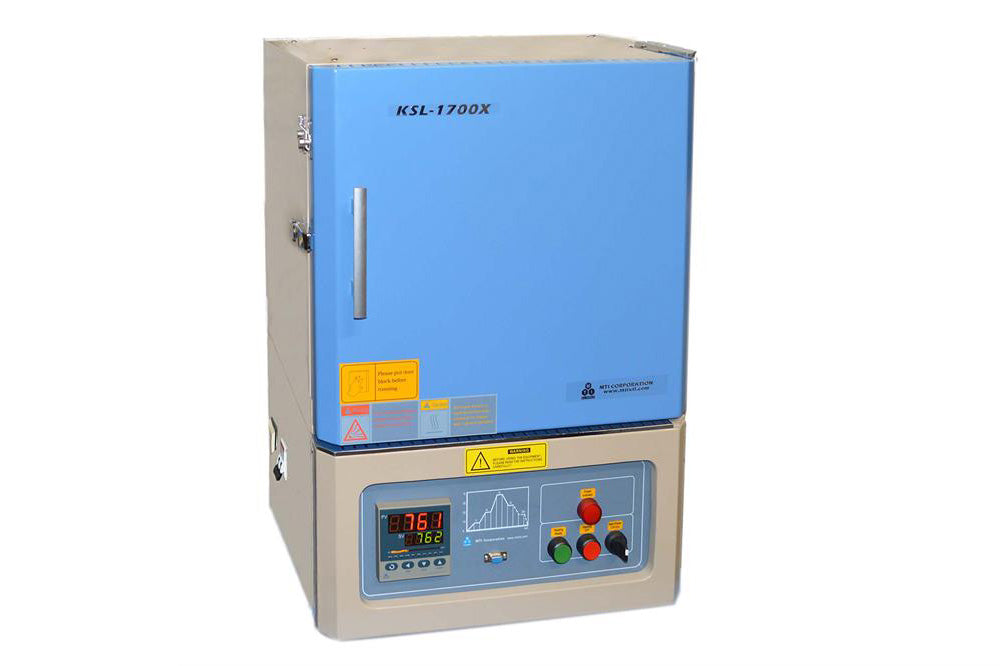

| Furnace Structure |
- Double shell steel case with cooling fan to keep case surface cool
- High purity alumina fiber insulation for max. energy saving
- All electriccomponents are UL or Met recognized and ready to pass any safety test worldwide
|
|
Power
|
4.8 KW
|
|
Voltage
|
AC 208V-240V single phase, 50/60 Hz (40A power outlet is recommended) |
|
Standard Working Temperature
|
1700° C or 3092° F (continuous)
|
|
Maximum Working Temperature
|
1750° C or 3180° F (< 3 hours)
|
|
Heating Rate
|
0~20°C / min (suggestion =< 10°C)
|
|
Temperature Accuracy
|
+/- 1° C
|
|
Temperature Uniformity
|
- +/- 5°C over 120 mm (5") @ 1700°C
- +/- 2°C over 80 mm (3") @ 1700°C
|
|
Heating Elements
|
Kanthal Super-1800 grade MoSi2 (4 pcs U shape) |
|
Thermocouple
|
B Type (Pt-Rh to Pt-Rh) with Alumina tube |
Temperature Controller
|
-
FA-YD518P-AG temperature controller is included.
- Proportional–integral–derivative control (PID control) and auto-tune function
- 30 segments programmed with ramping, cooling and dwelling steps
- Built-in over-temperature alarm and thermocouple failure alarm
- +/- 1 ºC temperature control accuracy
- Default DB9 PC communication port
- MET Certified
|
Temperature controller (optional)
|
- MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for the detail information about the MTS02-Y software kit.
- You may upgrade the temperature controller to the Eurotherm 3504 Temperature Controller which is fully compatible with LabVIEW. This package includes a Eurotherm 3504 programmer, a communication cable (RS485 - USB) and a software CD. Click the pic below to view the full spec of Eurotherm 3504 temperature controller.
|
Laptop, software (Optional)
|
- Brand new laptop with Microsoft Window 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
-
Labview Based Temperature Control System (MTS01)enables user to edit temperature profile, manage heat-treatment recipe, record and plot data for MTI furnaces.
- A wireless remote control provides up to 300 meters operating range.
|
| Power Cable & Plug |
|
| Compliance |
- CE Certified
- NRTL or CSA certification is available at extra cost.
|
|
Application Notes
|
- For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10 °C /min.
- The cooling rate shall also not exceed 10 °C /min.
- This furnace lacks vacuum sealing, toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision.
- Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
- Please click here to learn how to DIY gas purging system.
- The refractory block must be inserted before closing door.
|
