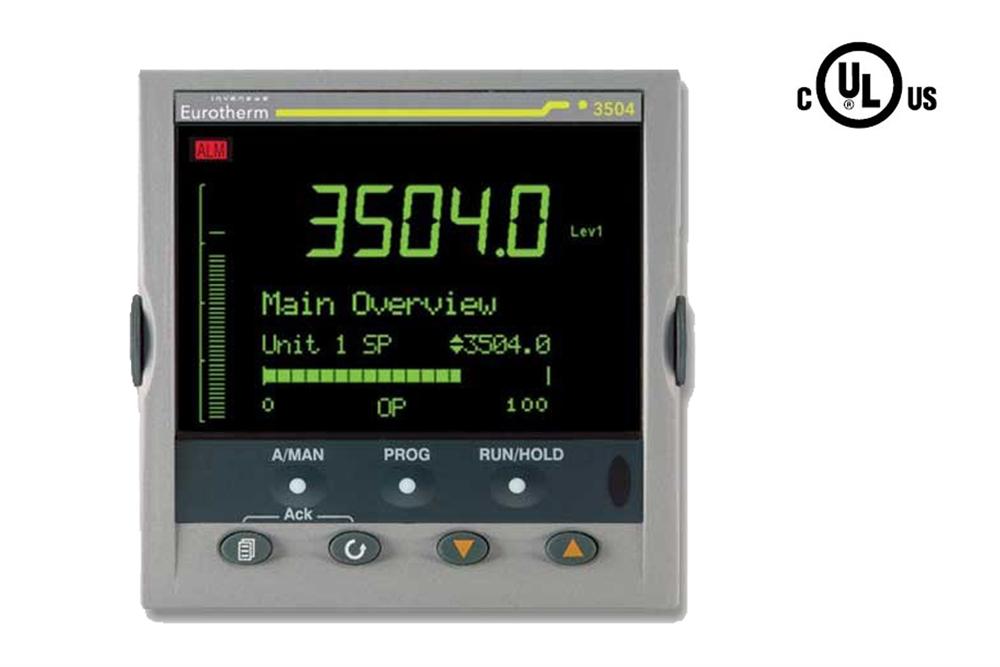

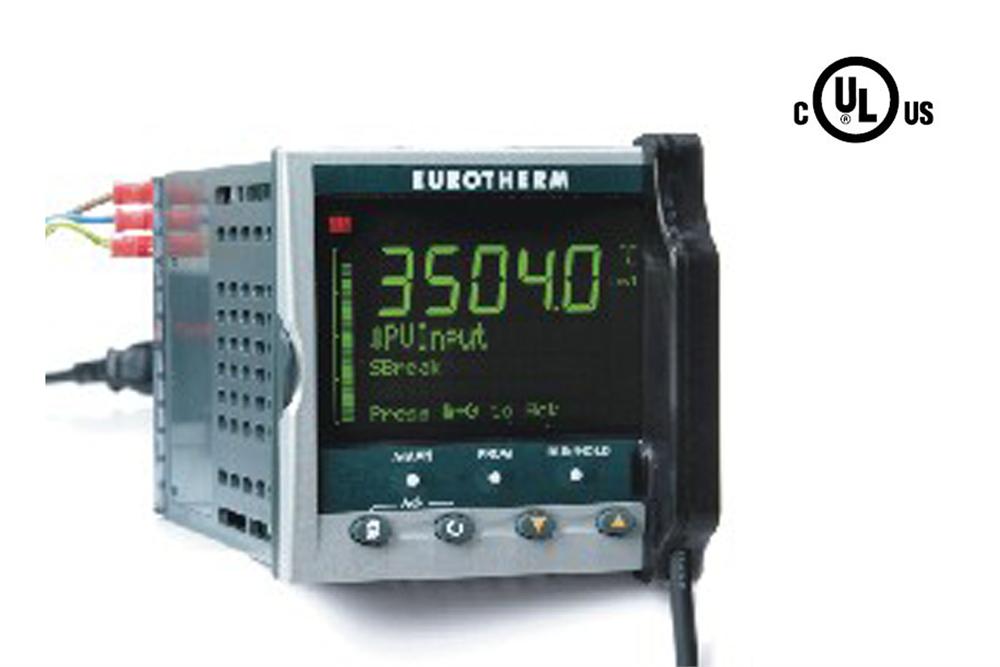

Eurotherm 3504 Programmable Temperature Controller - FA-Eurotherm-3504-LD
  • Eurotherm 3504 Programmable Temperature Controller - FA-Eurotherm-3504-LD
  • Eurotherm 3504 Programmable Temperature Controller - FA-Eurotherm-3504-LD
  • Eurotherm 3504 Programmable Temperature Controller - FA-Eurotherm-3504-LD
Eurotherm 3504 Programmable Temperature Controller - FA-Eurotherm-3504-LD

Eurotherm 3504 Programmable Temperature Controller - FA-Eurotherm-3504-LD

SKU: et3504

Price: RFQ

Specifications

 This is a UL Listed advanced process controller from Eurotherm® provide precision control of temperature and a host of other process variables together with an abundance of advanced options making it the most adaptable product in its class. It is suitable for using on the Furnaces (1250-1800C) with SCR & SiC/MoSi2 Heating Elements. SPECIFICATIONS Operating Voltage: 85-264VAC ¼ DIN instrument If you need to install the Eurotherm® for MTI three zone or 5-7 zone , please contact us for detail. 10 programs (500 segments) 1 DC Output: DC (0-5, 0-10VDC, 0-20, 4-20ma) Field configurable)(Output to Trigger or other SCR Device) 1 Alarm Relay: Form ‘C’ Digital Communications: EIA485 Temperature Accuracy:  ±  0.1ºC Recipes: Using a PC tool recipes can be created that can be used to change the operating parameters of the 3500 simply by selecting a new recipe via the HMI. This is very useful where multiple products are processed using the same controller but require different parameters to be set. A user-friendly Computer control interface can easily program heating steps. Each program can have Max. 50 Segment PID automatic control For more detailed product specs, please click underline to view - Eurotherm 3504 NOTE: ATTENTION: Due to the complexity of the hardware installation, we strongly suggest you purchase this PC control kit along with the furnace and our engineers will have the software & hardware pre-installed for you. Please note that this PC control kit is Replacement Part for Existing Customers individually. 3204 is used for MTI 1200C furnace 3504 is used for MTI 1500C and higher furnace

  • Operating Voltage: 85-264VAC
  • ¼ DIN instrument
  • If you need to install the Eurotherm® for MTI three zone or 5-7 zone, please contact us for detail.
  • 10 programs (500 segments)
  • 1 DC Output: DC (0-5, 0-10VDC, 0-20, 4-20ma)
  • Field configurable)(Output to Trigger or other SCR Device)
  • 1 Alarm Relay: Form ‘C’
  • Digital Communications: EIA485
  • Temperature Accuracy:  ±  0.1ºC
  • Recipes: Using a PC tool recipes can be created that can be used to change the operating parameters of the 3500 simply by selecting a new recipe via the HMI. This is very useful where multiple products are processed using the same controller but require different parameters to be set.

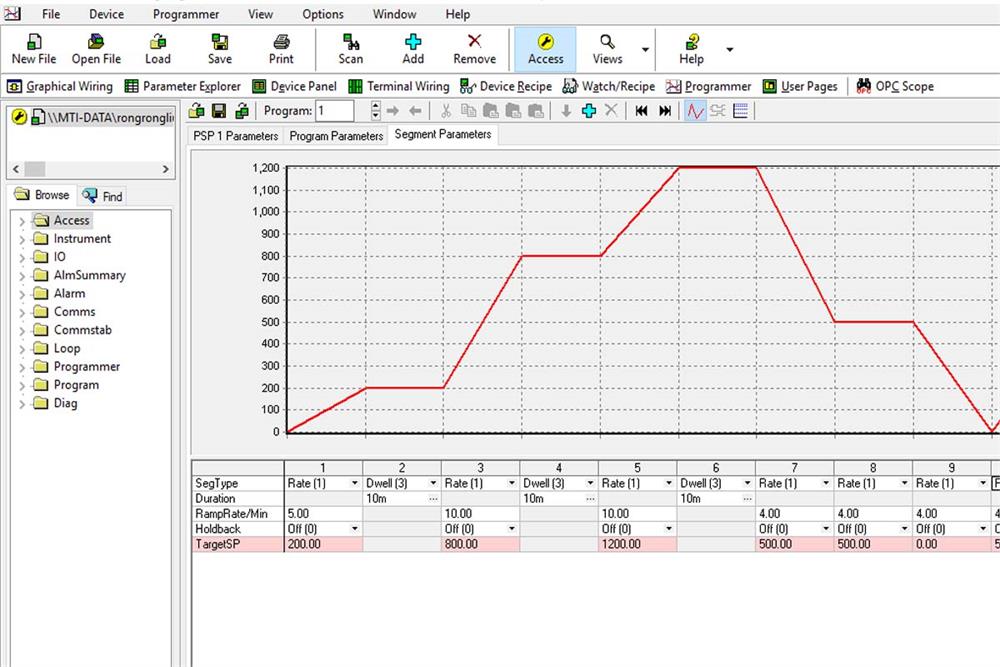

  • A user-friendly Computer control interface can easily program heating steps.
  • Each program can have Max. 50 Segment PID automatic control
