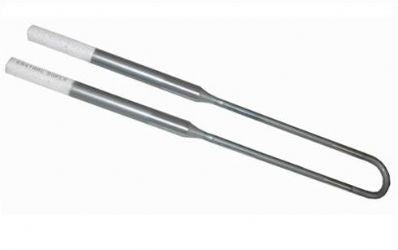

1750°C Kanthal Super MoSi2 H.E. 300mm L for 1750C Furnace - KSKSL-1800-M-LD

• Materials: MoSi2
• Max.  Surface Temperature: 1800 ºC
• Max Working Temperature for Furnace:  1750ºC (in Air)
• A  (Distance between two shanks) : 30 mm (1.18")
• D1 (Terminal Diameter) : 12 mm (0.47")
• D2  (Heating Zone Diameter): 6 mm (0.23")
• L1  (Terminal Length): 180 mm (6.69")
• L2  (Heating Zone Length): 120 mm (5.12")

Applications:

• Replacement for Bench-Top Muffle Furnace (1750C, 6"x6"x6", 3.6L) with Kathal Super-HT Heating Lement - KSL-1700X -KA
