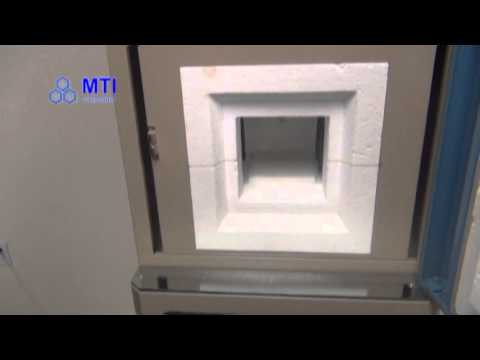

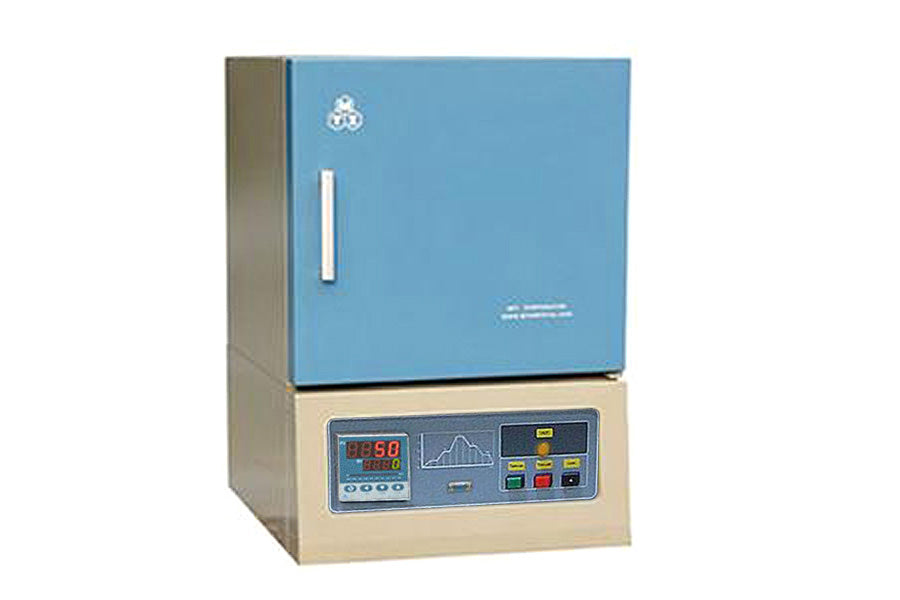

1750C Bench-Top Muffle Furnace (8" x 8" x 8", 8.4L) with Kanthal Super-1800 Heating Elements - KSL-1700X-KA2
  • 1750C Bench-Top Muffle Furnace (8" x 8" x 8", 8.4L) with Kanthal Super-1800 Heating Elements - KSL-1700X-KA2
  • 1750C Bench-Top Muffle Furnace (8" x 8" x 8", 8.4L) with Kanthal Super-1800 Heating Elements - KSL-1700X-KA2
1750C Bench-Top Muffle Furnace (8" x 8" x 8", 8.4L) with Kanthal Super-1800 Heating Elements - KSL-1700X-KA2

1750C Bench-Top Muffle Furnace (8" x 8" x 8", 8.4L) with Kanthal Super-1800 Heating Elements - KSL-1700X-KA2

SKU: ksl-1700x-ka2

Price: RFQ

Specifications

 KSL-1700X-KA2 is a bench-top ultra-high temperature muffle furnace built by the components UL recognized with a max. working temperature up to 1750°C. The furnace uses Kanthal Super- HT (1800C grade) MoSi2 heating elements and is controlled by a high precision SCR (Silicon Controlled Rectifier) digital controller with +/-1 °C accuracy and 30 segments that are programmable up to 1750°C. It is an ideal box furnace for sintering high purity ceramic materials at high temperatures without element contamination. SPECIFICATIONS Furnace Structure Double shell steel case with cooling fan to keep case surface cool High purity alumina fiber insulation for max. energy saving & long service life Power 6 KW (require > 40 Amp air breaker) Voltage AC 220-240 V single Phase 50/60 Hz Current 45 A Standard Working Temperature 1700°C (continuous) 1750°C (<3 hrs) Heating Rate 5°C / min Temperature Accuracy +/- 1°C Heating Elements Kanthal Super-1800 Grade MoSi 2 - 360mm L , 6pcs Thermocouple Double platinum-rhodium thermocouples (B type) Temperature Controller FA-YD518P-AG temperature controller is included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 PC communication port Temperature controller (optional) MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for the detail information about the MTS02-Y software kit. You may upgrade the temperature controller to the Eurotherm 3504 Temperature Controller which is fully compatible with LabVIEW. This package includes a Eurotherm 3504 programmer, a communication cable (RS485 - USB) and a software CD. Click the pic below to view the full spec of Eurotherm 3504 temperature controller. Laptop, software (Optional) Brand new laptop with Microsoft Window 10 and Microsoft Office 2013 (30 days free trial) for immediate use. Labview Based Temperature Control System ( MTS01 ) enables user to edit temperature profile, manage heat-treatment recipe, record and plot data for MTI furnaces. A wireless remote control provides up to 300 meters operating range. Power Cable & Plug 10 feet length 10-3 AWG heavy duty UL approved power cable is included Extra length cable can be ordered by click picture below The plug is not included. You can order from your local hardware store according to female plug in your lab, or order from link below (30A plug) (click here to order plugs from us) Compliance CE Certified NRTL or CSA certification is available at extra cost. Application Notes For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10 °C /min. The cooling rate shall also not exceed 10 °C /min. This furnace lacks vacuum sealing , toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating. Please click here to learn how to DIY gas purging system. The refractory block must be inserted before closing door. STANDARD PACKAGE N0. Name Qty Note KSL8-01 Kanthal Super-1800 Grade MoSi 2 - 360mm L 6 3 Double platinum-rhodium thermocouples (B type) 1 4 Al2O3 sample plate 1 5 Al2O3 door block 1 6 Manual 1 7 Crucible pliers 1

Furnace Structure
  • Double shell steel case with cooling fan to keep case surface cool
  • High purity alumina fiber insulation for max. energy saving & long service life
Power  6 KW (require > 40 Amp air breaker)
Voltage AC 220-240 V single Phase 50/60 Hz
Current 45 A
Standard Working Temperature 1700°C (continuous)
1750°C (<3 hrs)
Heating Rate 5°C / min
Temperature Accuracy +/- 1°C
Heating Elements Kanthal Super-1800 Grade MoSi2 - 360mm L , 6pcs
Thermocouple Double platinum-rhodium thermocouples (B type)
Temperature Controller
  • FA-YD518P-AG temperature controller is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • Default DB9 PC communication port
Temperature controller (optional)
  • MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for the detail information about the MTS02-Y software kit.
  • You may upgrade the temperature controller to the Eurotherm 3504 Temperature Controller which is fully compatible with LabVIEW. This package includes a Eurotherm 3504 programmer, a communication cable (RS485 - USB) and a software CD. Click the pic below to view the full spec of Eurotherm 3504 temperature controller.
Laptop, software (Optional)

  • Brand new laptop with Microsoft Window 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview Based Temperature Control System (MTS01)enables user to edit temperature profile, manage heat-treatment recipe, record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters operating range.
Power Cable & Plug
  • 10 feet length 10-3 AWG heavy duty UL approved power cable is included
  • Extra length cable can be ordered by click picture below
  • The plug is not included. You can order from your local hardware store according to female plug in your lab, or order from link below (30A plug)
Compliance
  • CE Certified
  • NRTL or CSA certification is available at extra cost.
Application Notes
  • For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10 °C /min.
  • The cooling rate shall also not exceed 10 °C /min.
  • This furnace lacks vacuum sealing, toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision.
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating.
  • Please click here to learn how to DIY gas purging system.
  • The refractory block must be inserted before closing door.
,

N0.

  Name

Qty

Note
KSL8-01
 Kanthal Super-1800 Grade MoSi2 - 360mm L

6
3
 Double platinum-rhodium thermocouples (B type)

1
4 Al2O3 sample plate

1
5 Al2O3 door block

1
6 Manual 1
7 Crucible pliers

1
