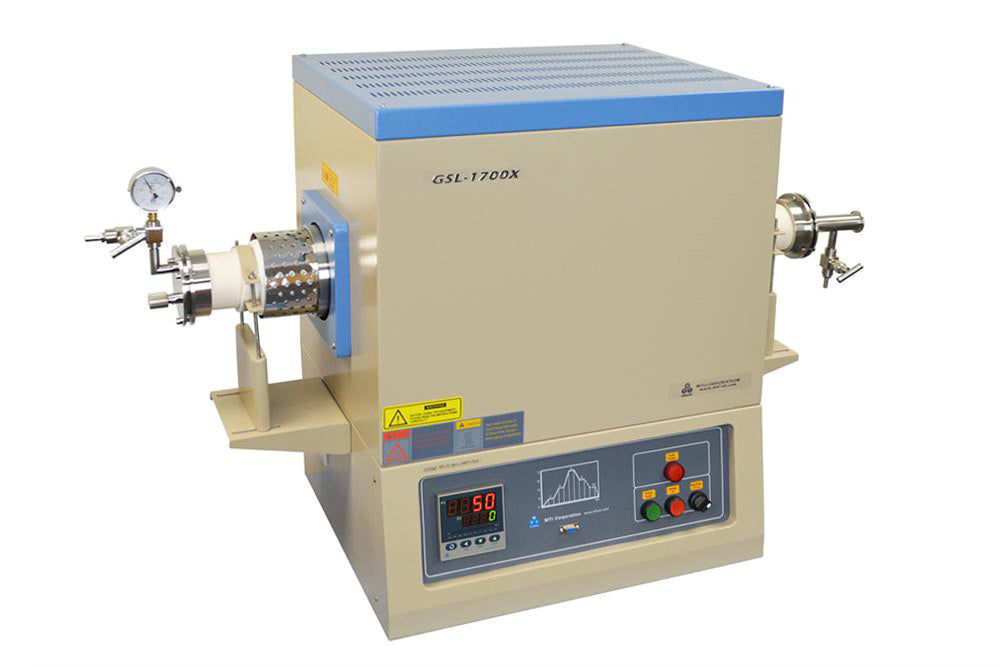

1750°C Bench-Top Vacuum and Atmosphere Tube Furnace ( 60mm OD) with Kathal Super-1800 Heating Elements - GSL-1750X-60

GSL-1750X-60 is a CE-certified compact tube furnace with Kathal Super-1800C Grade MoSi2 Heating Elements and high-quality alumina refractory board. Vacuum sealing flanges with valves, vacuum gauge, and an 80mm dia. A high purity alumina processing tube is included for immediate use. The temperature of the GSL-1750X-60 tube furnace is controlled by a 30 segment programmable high precision SCR (Silicon Controlled Rectifier) digital controller with an accuracy of +/-1 ºC. This tube furnace has a max. working temperature up to 1750 ºC. It is widely used in material & chemical research labs to sinter all types of new material samples under vacuum and other gas conditions.

SPECIFICATIONS

Furnace Structure	Double-layer steel casing with air cooling. Two cooling fans inside to keep case temperature < 60oC. High purity Alumina refractory chamber  Alumina tube, vacuum flange, gauge & valves are included.
Power Consumption	Max. 5.2KW
Input Voltage	Single Phase, 220V AC, 50/60 Hz (40A breaker required)
Working Temperature	Max. 1750ºC < 2 hours. Continuous: 1700ºC
Max. Heating / Cooling Rate	5ºC / min
Heating Zone	457 mm (18")
Constant Temperature Zone	150 mm (6")
Heating Elements	Kathal Super 1800C grade heating elements- 330mm L, 8pcs, made in Sweden

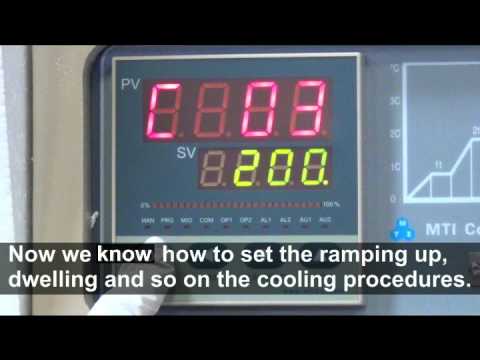

Temperature Controller	PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor. 30 programmable segments for precise control of heating rate, cooling rate, and dwell time. Please click here to learn why SCR is more accurate than SSC (Solid state relay). Built-in over-temperature alarm and protection allow for operation without attendance. +/- 1 ºC temperature accuracy. RS485 Communication Port. Optional: The furnace may be operated by PC by installing a control module. Please order a MTS-02 control module at extra cost. If you order the PC control module together with the furnace, we will install and test it before shipping. We recommend you to order a computer (laptop) from us to avoid software installation problems. For more information please click here.
Tube Materials	High purity Al2O3 ceramic, Purity > 99.9%
Processing Tube	Premier Grade alumina tube made in the USA 54mm ID x 60 mm OD x 1000 mm length. Four fibrous ceramic tube blocks are included for blocking heat radiation from inside the tube (Ceramic blocks must be fully inserted into the furnace chamber before heating). Quartz blocks (optional) are ideal for a cleaner processing environment and higher vacuum efficiency.
Sealing Flanges	One pair sealing flange with double silicone high-temperature O-ring is included Two SS needle valves and one dial vacuum gauge are installed with a flange for immediate use.  Vacuum pressure can reach 50 mTorr by a quality mechanical vacuum pump and 10^-5 torr by turbo molecular pump. Please click the picture below to see the flange assembly details.
Fitting Ports	Standard 1/4‘’ Barbed fittings with needle valves. For supplying high-pressure gas, you may replace the standard barbed hose fitting with the 304SS 1/4" Swagelok® Tube Fitting, please click underlined to order. Optional: In order to increase the throughput and achieve high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter, please click the underlined to order. Optional: You may also consider using the parts in below to increase the vacuum efficiency  Please click here to order a digital vacuum gauge for precision vacuum control up to 10-4 torr (see picture below and click to enlarge) You may click here to order flow meter and install in the tube flange (see picture below) KF25 Stainless steel Bellows  KF25 Quick Clamps
Vacuum Level	Limited by vacuum pump 50 mtorr can be achieved by the mechanical pump 10^-5 torr can be reached by molecular pump     The vacuum pump is not included, please order separately by clicking here
Power Cable & Plug	10 feet long 10-3 AWG heavy duty UL approved power cable is included. Extra length cable can be ordered by clicking picture below-left The plug is not included. You can order from your local hardware store according to the female plug in your lab, or order from the link below-right (30A plug) (click here to order plugs from us)
Compliance	CE Certified NRTL or CSA certification is available upon request at the extra cost

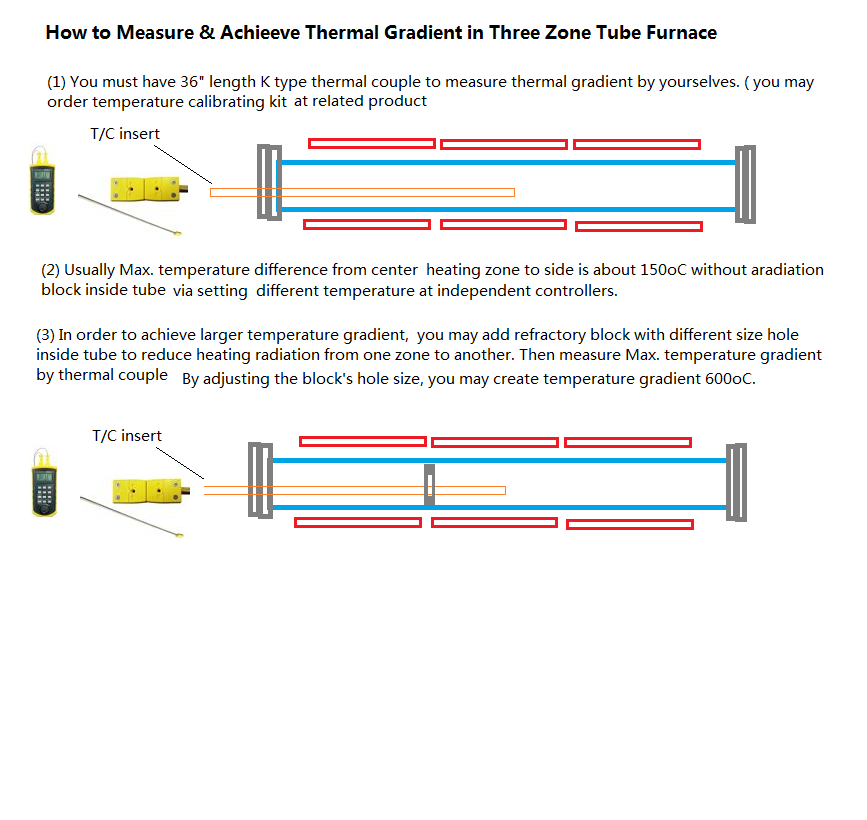

Application Notes	In order to obtain accurate temperature inside the tube furnace, you need to perform a temperature calibration before use, please click here to learn how. How to set up the ceramic tube and vacuum flange for MTI Tube furnace  Proper placement of tube blocks *Vacuum pressures may only be safely used up to 1500°C The tube furnaces with alumina tubes are designed for use under vacuum and low pressure < 0.12 MPa (absolute pressure) Attention: Due to the high-pressure gas output from the gas cylinder, it is necessary to install the gas pressure regulator with it to reduce the output pressure, avoid overpressurizing the furnace chamber and ensure a safe operation. Click here to learn about the installation of a gas regulator. The flow rate for gases should be limited to < 200 SCCM (or 200 ml/min) for reducing thermal shocks to the tube

STANDARD PACKAGE

Part NO.	Description	Quantity	Click to order extra
GSL68-01	Kathal Super 1800ºC grade heating elements - 330mm L, 8 pcs in the furnace	8
GSL68-02	Flanges (include one pair of flanges with 1/4 rubber hose fittings and vacuum gauge. 4 pcs of vacuum 0-Rings are included.)	1 set
GSL68-03	Thermal couple	1
GSL68-04	99.8%High purity Al2O3 Ceramic (made in US)	1
GSL68-05	Tube Blocks (70 mm Dia.)	4
GSL68-07	32A fuse	1
GSL68-08	4A fuse	1
GSL68-09	furnace handle hook	1

OPTIONAL PARTS

Part No.	Description	Quick Link
KF-suite	KF-D25 series Vacuum Suite(vacuum pump, vacuum ball valve, vacuum bellows, quick clamps, KF adapter) Also you may buy individually.
MTS02	Temperature Control System for controlling MTI's furnace by using a computer
CVM-211	Compact Digital Vacuum Gauge & Controller with Power Supply (Up to 10-4 Torr)
FM-Cart	Heavy Duty Mobile Car for All MTI Tube and Box Furnaces
	Gas mix station (Float flow meter / Mass flow meter) (2, 3, 4channels selectable)
	Vacuum flange fittings
	High vacuum station (Mechanical pump + turbo molecular pump.)
	Compact Flow Meter (float flow meter/mass flow meter)
	Ceramic Boat/Crucible
