Compact 1600C Tube Furnace with 50mm Alumina Tube & Vacuum Flanges / Valves - GSL1600X50
  • Compact 1600C Tube Furnace with 50mm Alumina Tube & Vacuum Flanges / Valves - GSL1600X50
  • Compact 1600C Tube Furnace with 50mm Alumina Tube & Vacuum Flanges / Valves - GSL1600X50
  • Compact 1600C Tube Furnace with 50mm Alumina Tube & Vacuum Flanges / Valves - GSL1600X50
Compact 1600C Tube Furnace with 50mm Alumina Tube & Vacuum Flanges / Valves - GSL1600X50

Compact 1600C Tube Furnace with 50mm Alumina Tube & Vacuum Flanges / Valves - GSL1600X50

SKU: gsl1600x50

Price: RFQ

Description

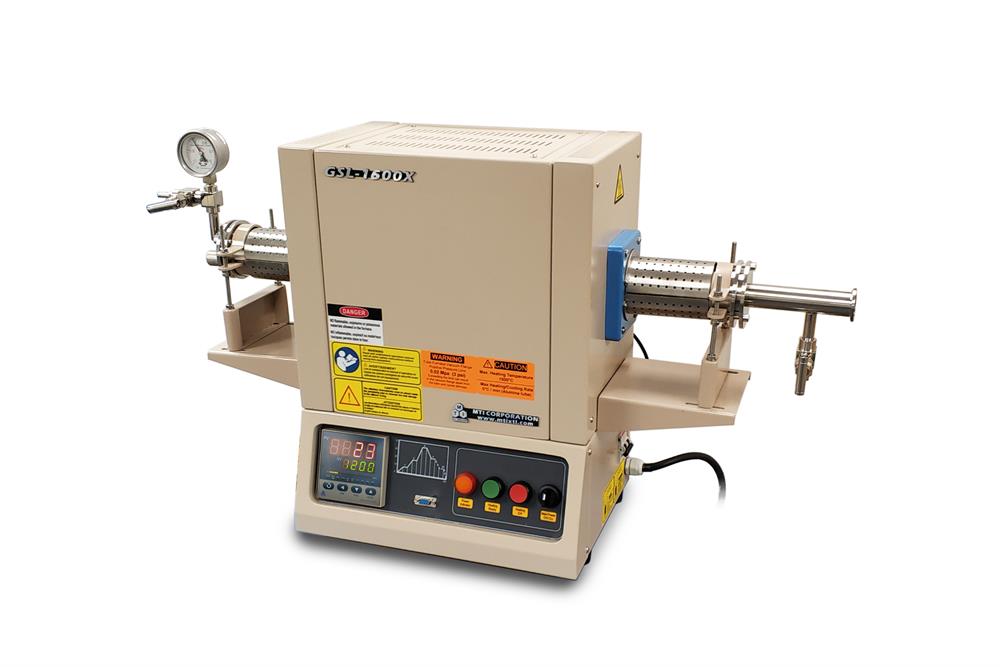

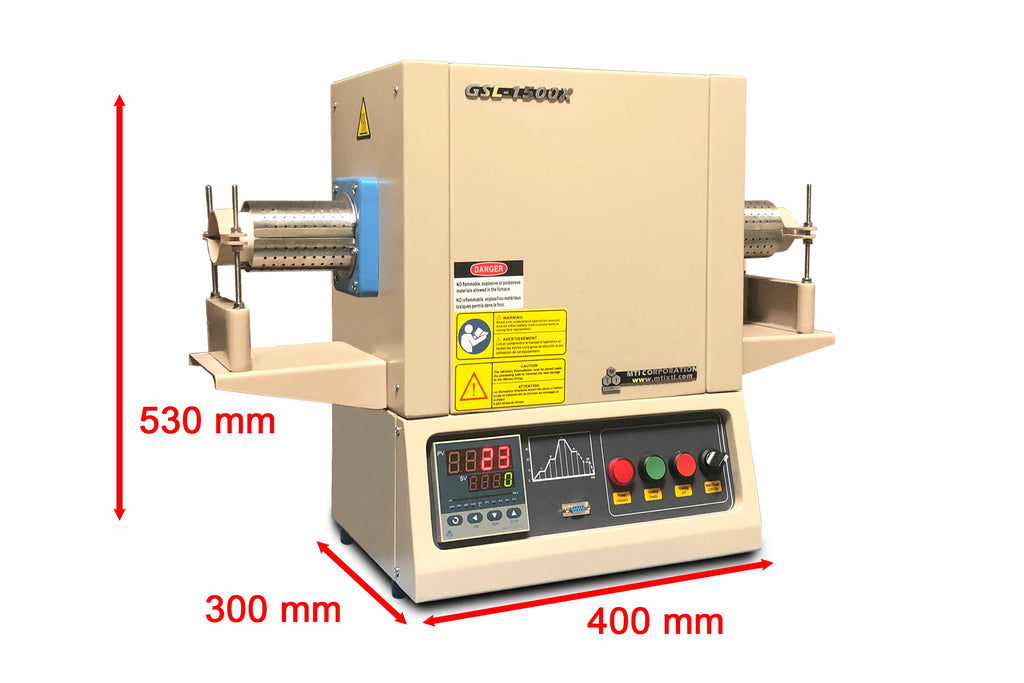

 GSL-1600X-50-UL is acompact 50mm (2") tube furnace with Kanthal 1650 o C Grade SiC Rods heating elements. It is widely used in material & chemical labs to sinter all types of new material samples under vacuum or other gas conditions up to 1600 o C. The temperature of the furnace is controlled by a 30 segment programmable high precision SCR (Silicon Controlled Rectifier) digital controller with the accuracy of +/-1 o C. High-quality alumina tube, vacuum flanges with valves, and pressure gauge are included for immediate use. The tube furnace can be placed into a glove box to process material in various atmospheres. SPECIFICATIONS Furnace Construction Dual-layer shell case with forced air cooling by two fans. 1800C grade fibrous alumina insulation for max. Energy-saving. Power 2.5 KW Max Voltage Single Phase, 208 - 240V AC, 50/60 Hz. Working Temperature 1600 ° C (less than one hr) 1500 ° C (continuous) Max. Heating Rate <5 o C / min Heating Zone Length 6" ( 152 mm) Constant Temperature Zone 80 mm (+/-1°C) Heating Elements Kanthal GLOBAR ® 1650 o C Grade SiC Rods , four pieces. The heating element is consumables. Please click the picture below for detailed specs and order spare. For SIC heating element, the Resistance change with life, please replace aging rod properly. Note: Kanthal SiC heating elements are very brittle. To avoid damages during the transit, the heating elements will be separated from the furnace. Customers are required to perform the heating element installation by themselves. MTI will provide video instruction. Thermal Couple S type Temperature Controller FA-YD518P-AG temperature controller included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 / PC communication port Temperature controller (optional) MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for the detail information about the MTS02-Y software package. You may upgrade the temperature controller to the Eurotherm 3004 Temperature Controller which is entirely compatible with LabVIEW. This package includes a Eurotherm 3004 programmer, a communication cable (RS485 - USB) and a software CD. Click the pic below to view the full spec of Eurotherm 3004 temperature controller. Tube and Flanges High purity Al 2 O 3 ceramic with Max. Working temperature. 50 mm O.D x 41.8mm I.D. x 700 mm Length. A pair of vacuum flanges with two valves and one pressure gauge is included. (click picture below to see detail) Two fibrous ceramic tube blocks are included for blocking heat radiation from the inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating) Fitting Ports One pair of SS 304 vacuum flange with KF-25 valves and double high-temperature silicone O-ring is Included Optional: You may also consider using the parts below to increase the vacuum efficiency Click here to order digital vacuum gauge for vacuum control up to 10 -4 torr You may click here to order flow-meter and install in tube flange (see picture below) KF25 Stainless Steel Bellows and KF25 Quick Clamps The Angle Valve is not included, please order at extra cost. Power Cable & Plug 10 feet length 10-3 AWG heavy UL approved power cable is included. Extra length cable can be ordered by click picture below-left The plug is not included. Browse our catalog for compatible plugs or obtain one from a local hardware store. software & WiFi Control (Optional) Brand new laptop with Microsoft Window 10 and Microsoft Office 2013 (30 days free trial) for immediate use. Labview Based Temperature Control System ( MTS01 ) enables user to edit temperature profile, manage heat-treatment recipe, record and plot data for MTI furnaces. A wireless remote control provides up to 300 meters operating range. Compliance CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost. Application Notes How to set up the ceramic tube and vacuum flange for MTI Tube Furnace. Proper placement of tube blocks To obtain accurate temperature inside tube furnace, you need to calibrate temperature before use, please click here to learn how. Please click here to review the typical temperature calibration curve. The tube furnaces with Alumina tube are designed for use under vacuum and low pressure < 0.2 Bar Related) Never use graphite crucible in the alumina tube. Never heat the furnace while the gas release valve is closed and a positive pressure condition exists within the furnace chamber. The pressure gauge must be used to closely monitor the chamber condition at all times during the heating process; please open the gas release valve immediately once the chamber pressure has reached over 3 PSI to prevent unforeseeable damages. The gas flow rate should be limited to < 200 SCCM ( or 200ml/min ) Vacuum limit definition for all alumina tube furnaces: * Vacuum pressures may only be safely used up to 1500°C STANDARD PACKAGE Part/No Description Quantity Picture GSL-34-01 Kanthal GLOBAR ® 1650 o C grade SiC rods4 pics in furnace 4 pcs GSL-34-02 A Pair of Vacuum Sealing Flanges Assembly with Valve and Gauge and 4 pcs of High-Temperature Vacuum Gasket included 1 sets GSL-34-03 Thermal Couples (S-Type) with Alumina Protective Tube 1 set GSL-34-04 Al2O3 Furnace Tube (OD: 50mm; ID: 41.8 mm) 1 pcs GSL-34-05 Foam Al2O3 Tube Block 4 pcs GSL-34-06 Stainless Steel Tube Protecting Cover installed 1 pair GSL-34-11 Stainless Steel Hook for moving the sample 1 pcs MF-Cart Optional: (at extra cost -- click picture to order) You may order a mobile cart to put the furnace on it and to make furnace easy to move 1 pcs

Furnace Construction
  • Dual-layer shell case with forced air cooling by two fans.
  • 1800C grade fibrous alumina insulation for max. Energy-saving.
Power
  • 2.5 KW Max
Voltage
  • Single Phase, 208 - 240V AC, 50/60 Hz.
Working Temperature
  • 1600 °C (less than one hr)
  • 1500°C (continuous)
Max. Heating Rate
  • <5 oC / min
Heating Zone Length
  • 6" ( 152 mm)
Constant Temperature Zone
  • 80 mm (+/-1°C)
Heating Elements
  • Kanthal GLOBAR®1650 oC Grade SiC Rods, four pieces.
  • The heating element is consumables. Please click the picture below for detailed specs and order spare.
  • For SIC heating element, the Resistance change with life, please replace aging rod properly.
  • Note: Kanthal SiC heating elements are very brittle. To avoid damages during the transit, the heating elements will be separated from the furnace. Customers are required to perform the heating element installation by themselves. MTI will provide video instruction.
Thermal Couple
S type

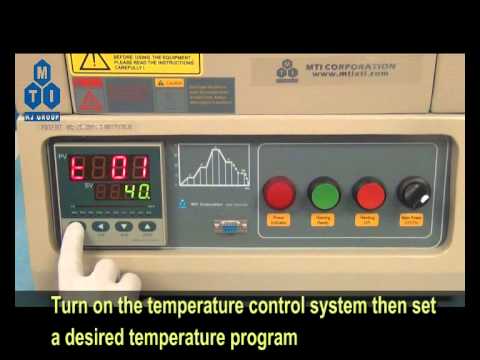

Temperature Controller
  • FA-YD518P-AG temperature controller included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • Default DB9 / PC communication port
Temperature controller (optional)
  • MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for the detail information about the MTS02-Y software package.
  • You may upgrade the temperature controller to the Eurotherm 3004 Temperature Controller which is entirely compatible with LabVIEW. This package includes a Eurotherm 3004 programmer, a communication cable (RS485 - USB) and a software CD. Click the pic below to view the full spec of Eurotherm 3004 temperature controller.
Tube and Flanges
  • High purity Al2O3 ceramic with Max. Working temperature.
  • 50 mm O.D x 41.8mm I.D. x 700 mm Length.
  • A pair of vacuum flanges with two valves and one pressure gauge is included. (click picture below to see detail)
  • Two fibrous ceramic tube blocks are included for blocking heat radiation from the inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating)
Fitting Ports
Power Cable & Plug
  • 10 feet length 10-3 AWG heavy UL approved power cable is included. Extra length cable can be ordered by click picture below-left
  • The plug is not included. Browse our catalog for compatible plugs or obtain one from a local hardware store.
software & WiFi Control
(Optional)
  • Brand new laptop with Microsoft Window 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
  • Labview Based Temperature Control System (MTS01)enables user to edit temperature profile, manage heat-treatment recipe, record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters operating range.
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available upon request at extra cost.
Application Notes
,
Part/No Description Quantity Picture

GSL-34-01

 Kanthal GLOBAR® 1650oC grade SiC rods4 pics in furnace 4 pcs

GSL-34-02

A Pair of Vacuum Sealing Flanges Assembly with Valve and Gauge and 4 pcs of High-Temperature Vacuum Gasket included

 1 sets

GSL-34-03

 Thermal Couples (S-Type) with Alumina Protective Tube 1 set

GSL-34-04

 Al2O3 Furnace Tube (OD: 50mm; ID: 41.8 mm) 1 pcs

GSL-34-05

 Foam Al2O3 Tube Block 4 pcs

GSL-34-06

 Stainless Steel Tube Protecting Cover installed 1 pair

GSL-34-11

 Stainless Steel Hook for moving the sample 1 pcs

MF-Cart

Optional: (at extra cost -- click picture to order) You may order a mobile cart to put the furnace on it and to make furnace easy to move

 1 pcs
