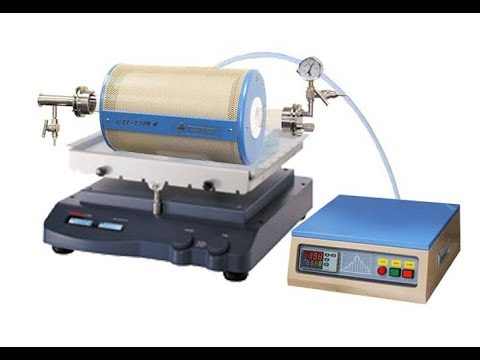

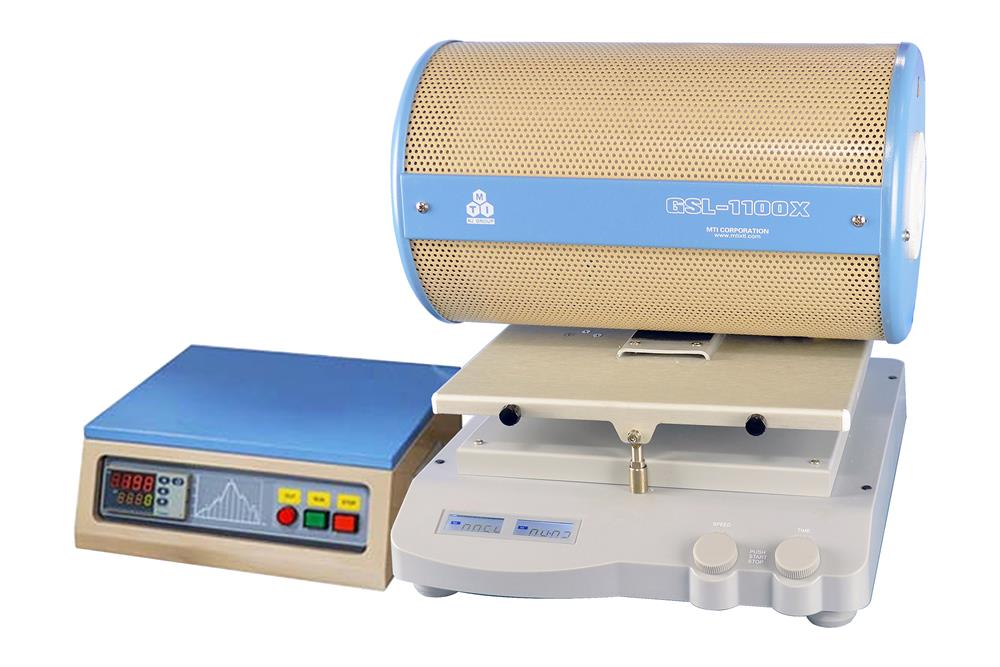

Rocking Tube Furnace with Quartz Tube & Vacuum Flange (Optional 1-2" ) - GSL1100XSK
  • Rocking Tube Furnace with Quartz Tube & Vacuum Flange (Optional 1-2" ) - GSL1100XSK
  • Rocking Tube Furnace with Quartz Tube & Vacuum Flange (Optional 1-2" ) - GSL1100XSK
  • Rocking Tube Furnace with Quartz Tube & Vacuum Flange (Optional 1-2" ) - GSL1100XSK
  • Rocking Tube Furnace with Quartz Tube & Vacuum Flange (Optional 1-2" ) - GSL1100XSK
  • Rocking Tube Furnace with Quartz Tube & Vacuum Flange (Optional 1-2" ) - GSL1100XSK
Rocking Tube Furnace with Quartz Tube & Vacuum Flange (Optional 1-2" ) - GSL1100XSK

Rocking Tube Furnace with Quartz Tube & Vacuum Flange (Optional 1-2" ) - GSL1100XSK

SKU: gsl-1100x-sk-ld

Price: RFQ

Specifications

 GSL-1100X-SK is a compact rocking quartz tube furnace (1~2" optional ), which is designed to stir samples during heating or melting to get a more uniform reaction. The rocking stage can set rocking frequency and time for automatically running. It is a useful tool for the preparation of thermoelectric material and growing 2D crystals. SPECIFICATIONS Furnace Structure Energy-saving high purity Al2O3 fibrous insulation liner Stainless steel shells with adjustable height Power AC 110V single-phase or AC 220V single phase (Please select the tube size and the rated voltage in the options bar) 1.2KW Working Temperature Max. Temperature: 1100 °C (< 1 hr) Continuous working temperature: 1000 °C Max. Heating Rate: 10°C /min Temperature Distribution Heating Zone Heating Zone Length: 12" (300mm) Constant Temperature Zone: 3.1" (80mm) Temperature Controller PID automatic control and auto-tune function. 30 programmable segments for precise thermal processing. Built-in protection for the over-heated and broken thermocouple. Temperature Accuracy: +/- 1 °C. K type thermocouple. Processing Tube 1" O.D x 0.87" I.D x 24" L Quartz tube or 2.0" O.D x 1.75" I.D x 24" L-quartz tube (Please select the tube size and the rated voltage in the options bar) Two fibrous ceramic tube blocks are included for blocking heat radiation generated from the tube center. Vacuum Flange Two choices of stainless steel flange with vacuum gauge and valves 2" default flange with 1/4'' Barbed fittings, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert) and a KF25 vacuum portclick bottom right picture to see details ) 1" flange has no thermocouple insert ( click the bottom left picture to see details ) 1" Flange Set 2" Flange Set Fitting Ports Both flanges will come standard with 3/8" barbed hose fittings In order to increase the throughput and achieve a high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter (please click the underline to order). For supplying high-pressure gas, you may replace the standard barbed hose fitting with the 304SS 1/4" Swagelok® Tube Fitting x 1/4" BSPP Male Connector (please click the underline to order). Vacuum Pressure (optional) 50 m-torr can be achieved by a mechanical pump 10^-5 torr can be reached by turbopump Please click the picture below to order a vacuum pump. Pressure Measurement Mechanical Vacuum Gauge (included as standard accessory), which measures within a pressure range of -0.1 to 0.15Mpa. Rocking Station DC motor, 40W LCD digital display with adjustable speed from 10 - 70 RPM Rocking angle: 9º max. Timer: 1-1199min or continuous running Compliance CE Certified NRTL (UL61010) or CSA certification is available at extra cost.

Furnace Structure
  • Energy-saving high purity Al2O3 fibrous insulation liner
  • Stainless steel shells with adjustable height

Power
  • AC 110V single-phase or AC 220V single phase
  • (Please select the tube size and the rated voltage in the options bar)
  • 1.2KW


Working Temperature
  • Max. Temperature: 1100 °C (< 1 hr)
  • Continuous working temperature: 1000 °C
  • Max. Heating Rate: 10°C /min

Temperature Distribution

Heating Zone
  • Heating Zone Length: 12" (300mm)
  • Constant Temperature Zone: 3.1" (80mm)



Temperature Controller
  • PID automatic control and auto-tune function.
  • 30 programmable segments for precise thermal processing.
  • Built-in protection for the over-heated and broken thermocouple.
  • Temperature Accuracy: +/- 1 °C.
  • K type thermocouple.


Processing Tube



Vacuum Flange

Two choices of stainless steel flange with vacuum gauge and valves
  • 2" default flange with 1/4'' Barbed fittings, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert) and a KF25 vacuum portclick bottom right picture to see details )
  • 1" flange has no thermocouple insert ( click the bottom left picture to see details )

    1" Flange Set  2" Flange Set
Fitting Ports
  • Both flanges will come standard with 3/8" barbed hose fittings
  • In order to increase the throughput and achieve a high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter (please click the underline to order).
  • For supplying high-pressure gas, you may replace the standard barbed hose fitting with the 304SS 1/4" Swagelok® Tube Fitting x 1/4" BSPP Male Connector (please click the underline to order).

Vacuum Pressure (optional)
  • 50 m-torr can be achieved by a mechanical pump
  • 10^-5 torr can be reached by turbopump
  • Please click the picture below to order a vacuum pump.


Pressure Measurement
  • Mechanical Vacuum Gauge (included as standard accessory), which measures within a pressure range of -0.1 to 0.15Mpa.

Rocking Station
  • DC motor, 40W
  • LCD digital display with adjustable speed from 10 - 70 RPM
  • Rocking angle: 9º max.
  • Timer: 1-1199min or continuous running
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available at extra cost.
