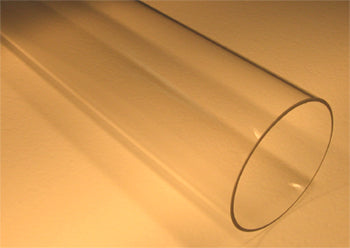

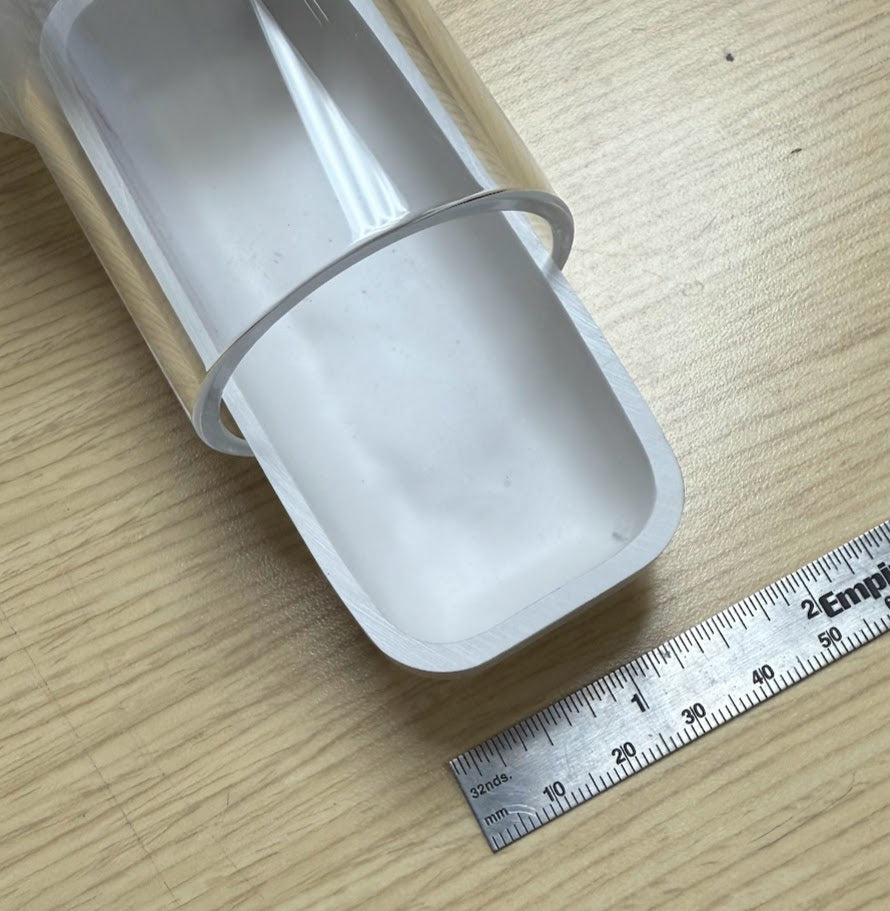

Quartz Tube: 50ODx44 IDx 600 L, mm (2"Dx24"L) for DIY Tube Furnace - TQ50D610
  • Quartz Tube: 50ODx44 IDx 600 L, mm (2"Dx24"L) for DIY Tube Furnace - TQ50D610
  • Quartz Tube: 50ODx44 IDx 600 L, mm (2"Dx24"L) for DIY Tube Furnace - TQ50D610
Quartz Tube: 50ODx44 IDx 600 L, mm (2"Dx24"L) for DIY Tube Furnace - TQ50D610

Quartz Tube: 50ODx44 IDx 600 L, mm (2"Dx24"L) for DIY Tube Furnace - TQ50D610

SKU: tq50d610

Price: RFQ

Specifications

 MTI Corporation provides the high purity quartz tube as a replacement part for high-temperature tube furnaces in universities, companies, and national labs. It can be used at operating temperature up to 1200ºC. Purchase Notes : Please make sure the specification of the tube meets your need before making a purchase. All tubes are not refundable, not exchangeable, nor covered under the warranty (Consumables), and  we do NOT accept return delivery of any tubes due to the fragile nature of the materials. We apologize for the inconvenience. Please check the package for damages before accepting the delivery. For more information or damaged upon arrival please contact us. SPECIFICATIONS O.D 50mm ±0.5mm (1.97") I.D 44mm ±0.5mm (1.73") Tube Length 600mm (24") Max. Operating Temperature 1200ºC Application Notes Vacuum pressures may only be safely used up to 1000°C The flow rate for gases should be limited to<200 SCCM (or 200ml/min) for reducing thermal shocks to the tube Quartz tubes are designed for using under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa In order to get longer tube service life, Please use quartz or alumina crucible to carry the sample, instead of loading the sample directly inside the tube, please click the picture below to choose one crucible boat: Inspect your delivery: Please check the package for damages before accepting delivery. Should damages be found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.

O.D 50mm ±0.5mm (1.97")
I.D 44mm ±0.5mm (1.73")
Tube Length 600mm (24")
Max. Operating Temperature 1200ºC
Application Notes
  • Vacuum pressures may only be safely used up to 1000°C
  • The flow rate for gases should be limited to<200 SCCM (or 200ml/min) for reducing thermal shocks to the tube
  • Quartz tubes are designed for using under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa
  • In order to get longer tube service life, Please use quartz or alumina crucible to carry the sample, instead of loading the sample directly inside the tube, please click the picture below to choose one crucible boat:
Ceramic Crucibles ( Alumina, Quartz and Zirconia etc )
