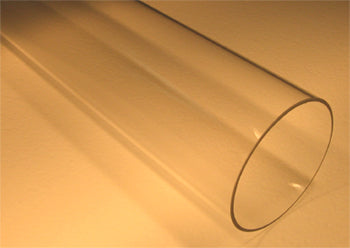

Quartz Tube: 25ODx20.5 IDx600 L mm (1"D x 24" L) for DIY Tube Furnace - TQ25D610
  • Quartz Tube: 25ODx20.5 IDx600 L mm (1"D x 24" L) for DIY Tube Furnace - TQ25D610
Quartz Tube: 25ODx20.5 IDx600 L mm (1"D x 24" L) for DIY Tube Furnace - TQ25D610

Quartz Tube: 25ODx20.5 IDx600 L mm (1"D x 24" L) for DIY Tube Furnace - TQ25D610

SKU: tq25d610

Price: RFQ

Specifications

 MTI Corporation provides the high purity quartz tube as the replacement part for high-temperature tube furnaces in universities, companies, and national labs. It can be used at operating temperatures up to 1200ºC . Purchase Notes: Please make sure the specification of the tube meets your needs before making a purchase. Since Nov 10, 2016, we no longer accept the return delivery of any tubes due to the fragile nature of the materials. All tubes are not refundable, not exchangeable, nor covered under the warranty (Consumables) . We apologize for the inconvenience. Please check the package for damages before accepting the delivery. For more information or damaged upon arrival please contact us . Click here for SDS SPECIFICATIONS O.D 25mm ±0.5mm (0.98") I.D 20.5mm ±0.75mm (0.81") Tube Length 600mm (23.6") Item Weight 0.54 lbs Max. Operating Temperature 1200 ºC Application Notes For vacuum sealing, please choose vacuum flanges at the related products below This quartz tube is excellent for our GSL-1100X tube furnace and DIY tube furnace below 1200° C Vacuum pressures may only be safely used up to 1000°C The flow rate for gases should be < 200 SCCM (or 200ml/min) for reducing thermal shocks to the tube Quartz tubes are designed for using under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa In order get longer tube service life, Please use quartz or alumina crucible to carry sample, instead of loading sample directly inside the tube, please click a picture below to choose one crucible boat: Inspect your delivery: Please check the package for damages before accepting delivery. Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.

O.D 25mm ±0.5mm (0.98")
I.D 20.5mm ±0.75mm (0.81")
Tube Length 600mm (23.6")
Item Weight 0.54 lbs
Max. Operating Temperature 1200ºC
Application Notes
  • For vacuum sealing, please choose vacuum flanges at the related products below
  • This quartz tube is excellent for our GSL-1100X tube furnace and DIY tube furnace below 1200°C
  • Vacuum pressures may only be safely used up to 1000°C
  • The flow rate for gases should be < 200 SCCM (or 200ml/min) for reducing thermal shocks to the tube
  • Quartz tubes are designed for using under vacuum and low pressure < 0.2 bars / 3 psi / 0.02 MPa
  • In order get longer tube service life, Please use quartz or alumina crucible to carry sample, instead of loading sample directly inside the tube, please click a picture below to choose one crucible boat:
Ceramic Crucibles ( Alumina, Quartz and Zirconia etc )
