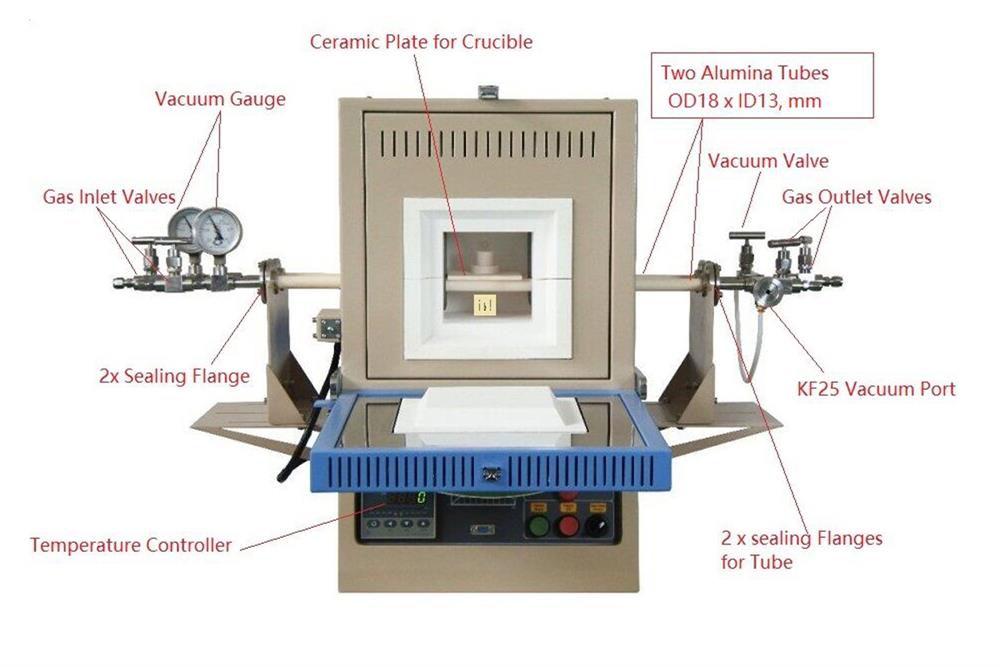

Furnace Structure
|
- 1800-grade fiber alumina with reflective coating -- maximum energy-saving design
- Steel structure with air cooling fan to keep the case's temperature below 60°C
- The built-in two alumina tubes with 13 mm ID for atmosphere-controlled processing
- The built-in two layers in box ( 50mm height each ) for sintering multi-sample in air
|
|
Power
|
- AC 208 - 240V, 50/60Hz, single phase
- Note: Plug is not included
- Maximum Power: 2.5 KW
- < 1 KWif heating rate is at 10°C/min
|
|
Processing Tube
&
Sealing Flanges
|
- Two Premier Grade corundum tubes
- Each Tube: 13 mm (I.D.) x 18 mm (O.D) x 600 mm length
- Flange Size: 20mm (I.D.)
- Four corundum tube blocks are included for blocking heat radiation from the inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating).
- One pair of sealing flange with double silicone high-temperature O-ring is included.
- Two SS needle valves and one dial vacuum gauge are installed with a flange for each tube.
- Limited by the vacuum pump
- 50 mtorr can be achieved by the mechanical pump
- 10^-5 torr can be reached by molecular pump
- The vacuum pump is not included, please order separately by clicking here
|
|
Heating Chamber Dimension
|

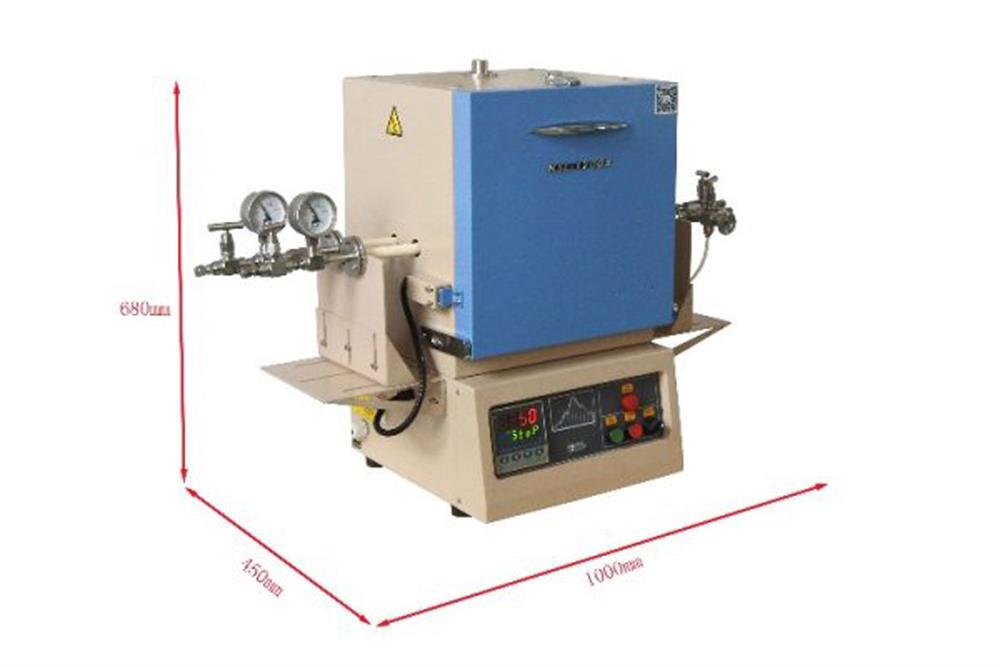

- Chamber: 120mm(L) x 120mm(W) x 120mm(H) ( 4.7" x 4.7" x 4.7")
- Capacity: 1.7 Liters
- One ceramic plat is put on alumia tube and divides the heater chamber intp twolayers, eachlayer has ~50 mm height.
|
|
Standard Working Temperature
|
- 1600°C or 2912°F (continuous)
|
|
Maximum Working Temperature
|
- 1700°C or 3092°F (< 1.0 hours)
|
|
Heating Rate
|
- 0 ~20 °C/min (≤10 °C/min recommended when the temperature ≤ 1400°C)
- 5 °C/min when the temperature 1400°C - 1600°C
|
|
Temperature Stability
|
|
|
Temperature Uniformity
|
- +/- 5 °C over 120 mm (5") @ 1700°C
- +/- 2 °C over 80 mm (3") @ 1700 °C
|
|
Heating Elements
|
|
|
Thermocouple
|
|
|
Temperature Controller
|
- The FA-YD518P-AG temperature controller is included.
- Proportional–integral–derivative control (PID control) and auto-tune function
- 30 segments programmed with ramping, cooling and dwelling steps
- Built-in over-temperature alarm and thermocouple failure alarm
- +/- 1 ºC temperature control accuracy
- Default DB9 PC communication port
- MET Certified
|
Temperature controller (optional)
|
- MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for the detail information about the MTS02-Y software kit.
- You may upgrade the temperature controller to the Eurotherm 3504 Temperature Controller which is fully compatible with LabVIEW. This package includes a Eurotherm 3504 programmer, a communication cable (RS485 - USB) and a software CD. Click the pic below to view the full spec of the Eurotherm 3504 temperature controller.
|
Laptop, software & WiFi Control(Optional)
|
- Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
-
Labview-Based Temperature Control System (MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
-
|
|
Optional Parts
|
- You may order an alumina crucible by clicking the picture below
|
| Compliance |
- CE Certified
- NRTL or CSA certification is available upon request at an extra cost.
-
|
|
Application Notes
|
- For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10 °C /min.
- The cooling rate shall also not exceed 10 °C /min.
- This furnace lacks vacuum sealing, and it is not recommended to use toxic or explosive gasses in this furnace without necessary safety controls and supervision.
- Small cracks may appear on the surface of the refractory ceramics with overuse. This is a normal occurrence and the cracks may be repaired with alumina coating.
- Please click here to learn how to DIY gas purging system.
- The refractory block must be inserted before closing the door (click the picture on left for details).
|
