1700C Bottom Loading Vertical Furnace (280Dx300H mm, 13L) with Dual Stages - VBF1600X-Z
  • 1700C Bottom Loading Vertical Furnace (280Dx300H mm, 13L) with Dual Stages - VBF1600X-Z
  • 1700C Bottom Loading Vertical Furnace (280Dx300H mm, 13L) with Dual Stages - VBF1600X-Z
  • 1700C Bottom Loading Vertical Furnace (280Dx300H mm, 13L) with Dual Stages - VBF1600X-Z
  • 1700C Bottom Loading Vertical Furnace (280Dx300H mm, 13L) with Dual Stages - VBF1600X-Z
  • 1700C Bottom Loading Vertical Furnace (280Dx300H mm, 13L) with Dual Stages - VBF1600X-Z
1700C Bottom Loading Vertical Furnace (280Dx300H mm, 13L) with Dual Stages - VBF1600X-Z

1700C Bottom Loading Vertical Furnace (280Dx300H mm, 13L) with Dual Stages - VBF1600X-Z

SKU: vbf1600x-z

Price: RFQ

Specifications

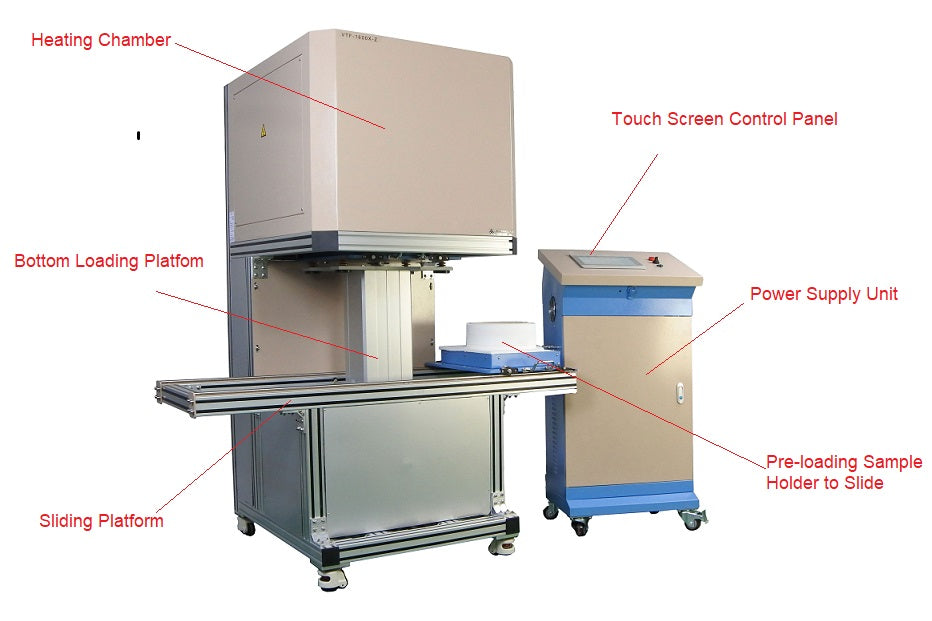

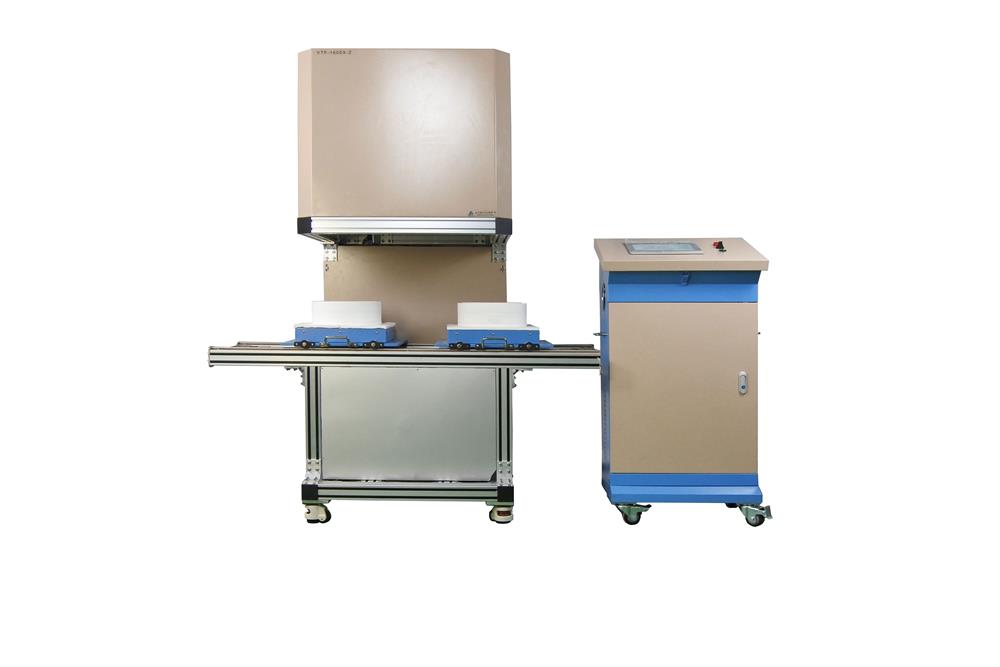

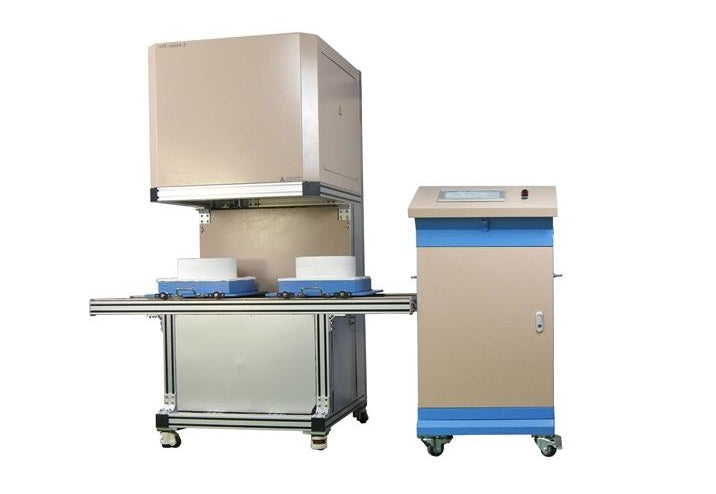

 VTF-1600X-Z is a vertical furnace with dual heating stages for fast sample loading and retrieving. It is a time-saving product for continuous thermal treatment for different batches of samples. It also features a rapid thermal process and a fast cooling procedure. Both of the stages are slid on the rails for easy and safe operation. The system can be fully automated at an extra cost. SPECIFICATIONS Furnace Features Dual sample stages for quick loading and retrieving on the bottom of the furnace Rapid thermal heating and cooling process. Stages are slid on the rails for easy operation. and Time-saving High-purity thermal insulation material for better energy saving Air-cold steel case for safe operation Working Temperature 1600 °C, continuously 1700 °C, < 1 hr Heating Chamber Cylindrical, 280 (ID) x 300 (H) mm Capacity: ~ 18 L Power 220 VAC, 50/60 Hz Max. Power: ~ 13 kW Heating Element MoSi2 ( 1750 grade ) Max. Heating Rate ≤ 10 °C/min (Recommended) Max Cooling Rate ≤ 20 °C/min (Recommended) Thermocouple Type B Temperature Control Touchscreen display unit for easy control. Max. 30 programmable segments. ± 1 ºC precise temperature control during the dwelling Overheat alarm, Deviation alarm, broken thermocouple alarm RS 485 communication port for remote control. PC software and interface are included Overheat alarm, electric leakage protection Temperature controller (optional) MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit. You may upgrade the temperature controller to the Eurotherm 3000 series Temperature Controller which provides ± 0.1 ºC precise temperature control during dwelling and is fully compatible with LabVIEW. This package includes a Eurotherm 3000 series temperature controller, a communication cable (RS485 - USB), and a software CD. Laptop, software & WiFi Control (Optional) Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30-day free trial) for immediate use. Labview-based Temperature Control System enables a user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces. file, manage heat-treatment recipes, and record and plot data for MTI furnaces. A wireless remote control provides up to 300 meters of operating range. The above features are available upon request at an extra cost (up to $1,000). Please contact us for more information. Compliance CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost. Application Notes To obtain accurate temperature inside the tube furnace, you shall calibrate the temperature before use, please click here to learn how.


Furnace Features
  • Dual sample stages for quick loading and retrieving on the bottom of the furnace
  • Rapid thermal heating and cooling process.
  • Stages are slid on the rails for easy operation. and Time-saving
  • High-purity thermal insulation material for better energy saving
  • Air-cold steel case for safe operation
Working Temperature
  • 1600 °C, continuously
  • 1700 °C, < 1 hr

Heating Chamber
  • Cylindrical, 280 (ID) x 300 (H) mm
  • Capacity: ~ 18 L

Power
  • 220 VAC, 50/60 Hz
  • Max. Power: ~ 13 kW

Heating Element
  • MoSi2 ( 1750 grade )

Max. Heating Rate
  • ≤ 10 °C/min (Recommended)

Max Cooling Rate
  • ≤ 20 °C/min (Recommended)

Thermocouple
  • Type B

Temperature Control
  • Touchscreen display unit for easy control.
  • Max. 30 programmable segments.
  • ± 1 ºC precise temperature control during the dwelling
  • Overheat alarm, Deviation alarm, broken thermocouple alarm
  • RS 485 communication port for remote control.
  • PC software and interface are included
  • Overheat alarm, electric leakage protection
Temperature controller (optional)
Laptop, software & WiFi Control (Optional)

  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30-day free trial) for immediate use.
  • Labview-based Temperature Control System enables a user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
  • file, manage heat-treatment recipes, and record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.
  • The above features are available upon request at an extra cost (up to $1,000). Please contact us for more information.

Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available upon request at extra cost.
