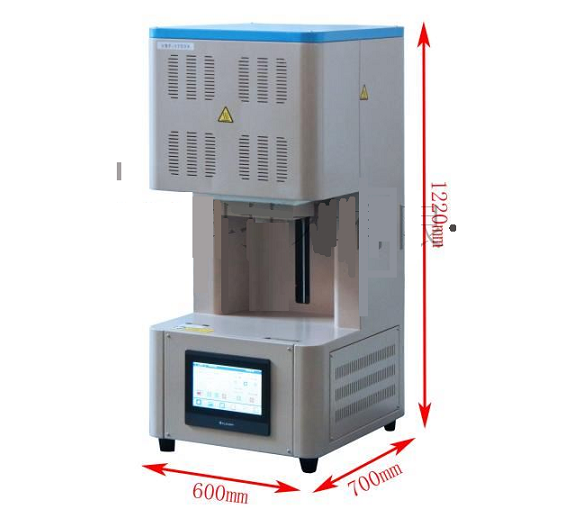

1700 Max Automated Box Furnace / Bottom Loading ( 8"x8"x8") - VBF-1700X-L8AX

1700 Max Automated Box Furnace / Bottom Loading ( 8"x8"x8") - VBF-1700X-L8AX

SKU: vbf-1700x-l8ax

Price: RFQ

Specifications

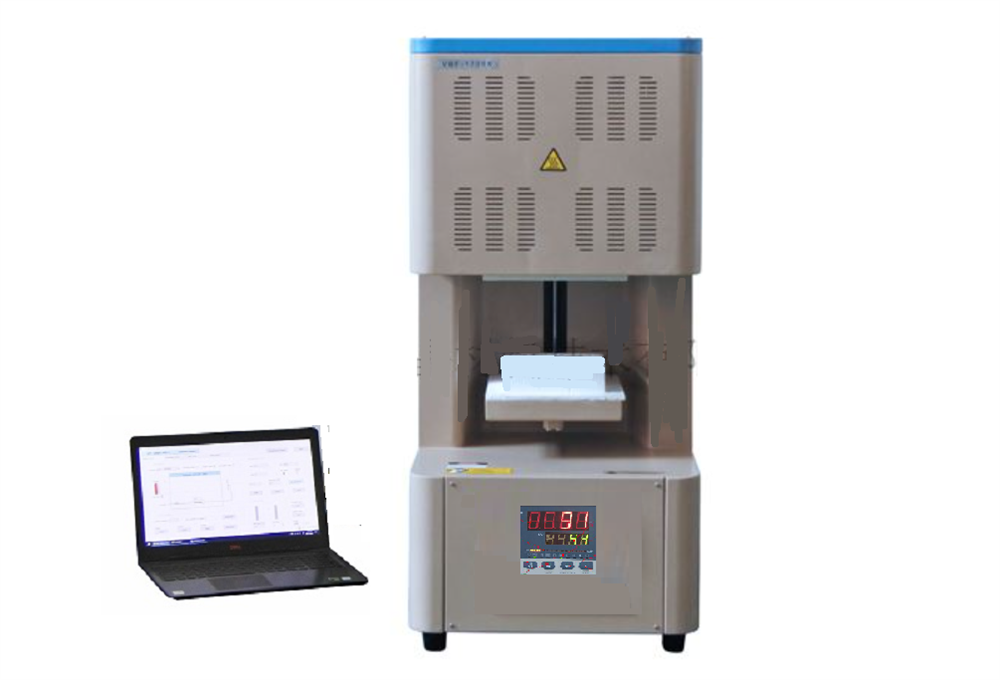

The VBF-1700X-L8AX is an automated bottom-loading muffle furnace with a maximum temperature of 1700℃. . The furnace is operated by PC and enables one-key automated execution of sintering processes via computer control, including closing the door, raising the temperature, dwelling, cooling, and opening the door. It can be integrated with a robotic system to facilitate automatic sample loading, unloading, and retrieval. A single PC can control multiple units up to 8 furnaces at the same time. SPECIFICATIONS: Furnace Structure Dual-layer shell structure High-purity alumina fiber material furnace chamber One laptop computer is included for automatic operation Power Voltage: AC220V+/- 10% , 50/60 HZ Power: 8 KW A 3-meter power cable is included without a plug Heating Chamber 200 x200 x200 ( mm), ( ~ 8 x 8 x 8 ") 8 Liter Capacity Heating rate: ≤10/min Thermal couple: B type Uniform zone: 150x150x150 mm in center within +/- 5oC Working Temp. Max. 1700oC < 60 minutes Continuous Working Temperature 1600°C Minimum temperature: 1100 °C Temperature Control PID automatic temperature control system Intelligent 30-stage programmable control Default DB9 PC communication connection port is built in for PC operation Temperature control accuracy: ±1. (optional European temperature control accuracy up to ±0.1) PC operation One PC and pre-installed software are included to achieve automatic operation, including closing the door, raising the temperature, dwelling, cooling, and opening the door. RJ45 communication interface on the side panel, providing MODBUS RTU communication protocol for instrument control and door switch One computer can control multiple furnaces simultaneously Equipped with φ6.35mm gas inlet (rear) and φ30mm outlet(top) ports which allow the introduction of inert gas into the chamber Automation Collaborative Robot for sample loading (optional) Full automation with sample loading is optional via the integration with a robot arm. Compliance CE certified NRTL or CSA certification is available upon request

Furnace Structure
  • Dual-layer shell structure
  • High-purity alumina fiber material furnace chamber
  • One laptop computer is included for automatic operation
Power
  • Voltage: AC220V+/- 10% , 50/60 HZ
  • Power: 8 KW
  • A 3-meter power cable is included without a plug
Heating Chamber
  • 200 x200 x200 ( mm), ( ~ 8 x 8 x 8 ")
  • 8 Liter Capacity
  • Heating rate: ≤10/min
  • Thermal couple: B type
  • Uniform zone: 150x150x150 mm in center within +/- 5oC

Working Temp.

  • Max. 1700oC < 60 minutes
  • Continuous Working Temperature 1600°C
  • Minimum temperature: 1100 °C
Temperature Control
  • PID automatic temperature control system
  • Intelligent 30-stage programmable control
  • Default DB9 PC communication connection port is built in for PC operation
  • Temperature control accuracy: ±1. (optional European temperature control accuracy up to ±0.1)
PC operation
  • One PC and pre-installed software are included to achieve automatic operation, including closing the door, raising the temperature, dwelling, cooling, and opening the door.
  • RJ45 communication interface on the side panel, providing MODBUS RTU communication protocol for instrument control and door switch

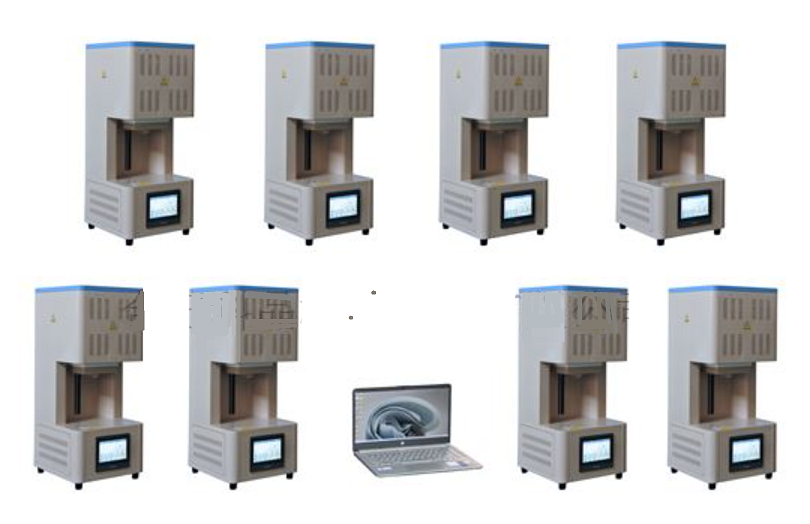

  • One computer can control multiple furnaces simultaneously
  • Equipped with φ6.35mm gas inlet (rear) and φ30mm outlet(top) ports which allow the introduction of inert gas into the chamber

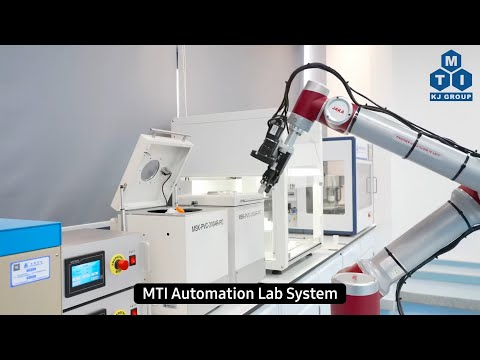

Automation Collaborative Robot for sample loading
(optional)
  • Full automation with sample loading is optional via the integration with a robot arm.



Compliance

CE certified
NRTL or CSA certification is available upon request
