Desktop Collaborative Robot - MTI-MG400
  • Desktop Collaborative Robot - MTI-MG400
  • Desktop Collaborative Robot - MTI-MG400
Desktop Collaborative Robot - MTI-MG400

Desktop Collaborative Robot - MTI-MG400

SKU: mtimg400

Price: RFQ

Specifications

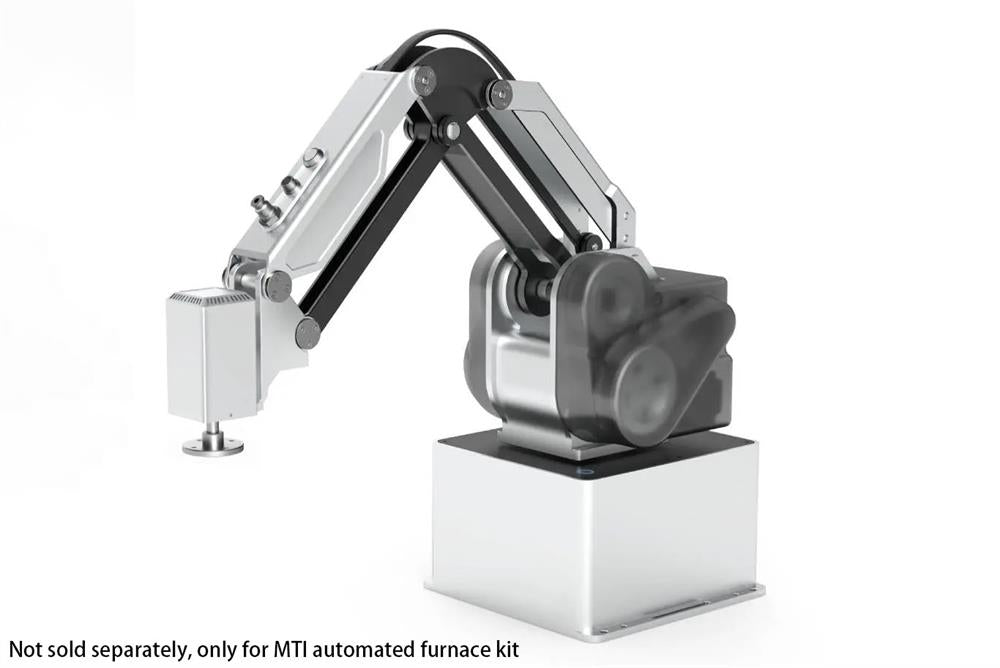

 MTI-MG400 is an easy-to-deploy and safe human collaboration compact robotic arm designed for desktop use, with a small footprint of 190mm * 190mm. With a maximum payload of 750 g and a maximum reach of 440 mm, as well as drag-to-teach and collision detection features, the MG400 is a cost-effective solution for various smart automation tasks. Not sold separately, only for MTI automated kit. SPECIFICATIONS: Axes 4 Payload 500 g (Max. 750 g) Working Radius 440 mm Positioning Accuracy ±0.05 mm Voltage 48V Power 150W Communication Interface TCP/IP, Modbus TCP Weight 8 kg Base Size 190 mm × 190 mm Working Environment 0-40

Axes 4
Payload 500 g (Max. 750 g)
Working Radius 440 mm
Positioning Accuracy ±0.05 mm
Voltage 48V
Power 150W
Communication Interface TCP/IP, Modbus TCP
Weight 8 kg
Base Size 190 mm × 190 mm
Working Environment 0-40
