1600°C 3-Zone Heated Bottom Loading Box Furnace (16x16 x18", 72L) - VBF-1600X-L72
  • 1600°C 3-Zone Heated Bottom Loading Box Furnace (16x16 x18", 72L) - VBF-1600X-L72
  • 1600°C 3-Zone Heated Bottom Loading Box Furnace (16x16 x18", 72L) - VBF-1600X-L72
  • 1600°C 3-Zone Heated Bottom Loading Box Furnace (16x16 x18", 72L) - VBF-1600X-L72
1600°C 3-Zone Heated Bottom Loading Box Furnace (16x16 x18", 72L) - VBF-1600X-L72

1600°C 3-Zone Heated Bottom Loading Box Furnace (16x16 x18", 72L) - VBF-1600X-L72

SKU: vbf-1600x-l72

Price: RFQ

Specifications

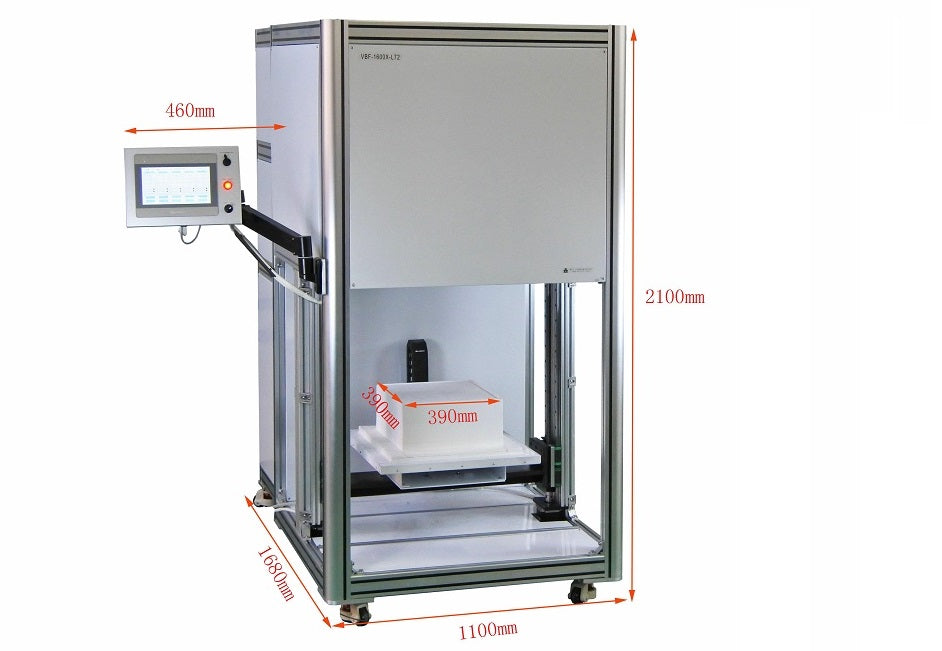

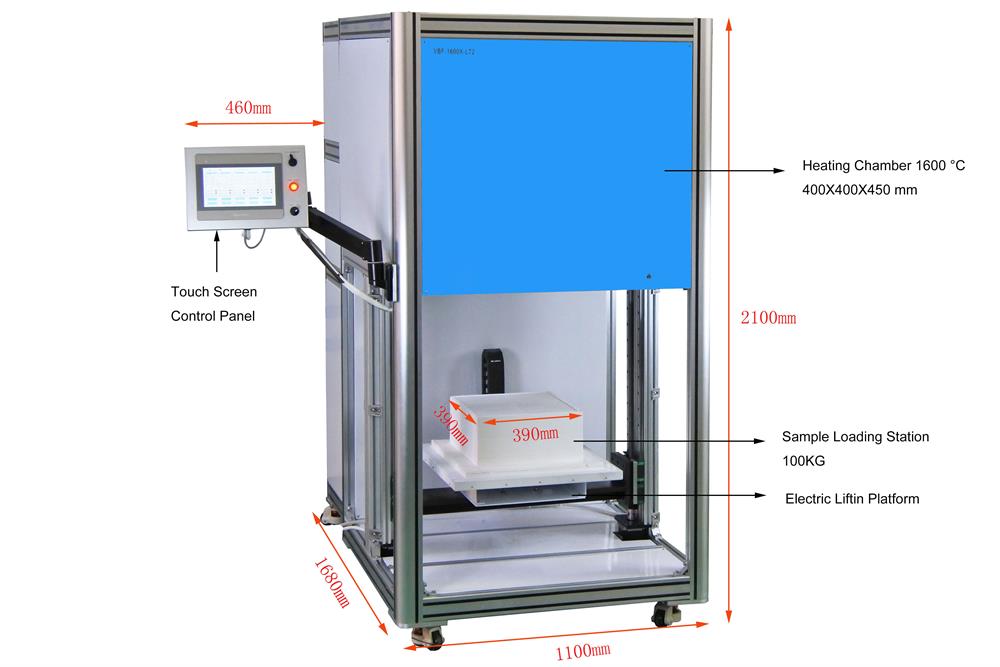

 VBF-1600X-L72 is a bottom loading box furnace with a 40x40x45 cm heating chamber for rapid thermal process and fast cooling procedure, which uses 27 pieces of MoSi2 heating elements with 3 heating zone for working up to 1600ºC continuously with 30x30x30 cm Unform space within +/- 3ºC. The sample loading platform is driven by an electric motor for easy operation. SPECIFICATIONS Furnace Features Two-layer steel casing with air colling gap. 40x40x45 cm heating chamber with 30x30x30 cm uniform heating space within +/- 5 °C Electric bottom loading for Rapid thermal heating and cooling process. High purity thermal insulation material for better energy-saving Touch screen panel for easy and safe operation. Power 220 VAC, 50/60 Hz three-phase Max. Power: ~ 45 kW Working Temperature 1600 °C, continuously 1700 °C, < 1 hr Heating Chamber 400L x 400 W x 450 (H), mm ( ~16" H x 16"D x 18"H) Nominal Capacity: ~ 72 L Heating Element: 1800oC grade MoSi2, 27 pcs 3 zones heating with 3 thermal couples (B) Uniform Heating Space: 300 x 300 x300 mm within +/- 3ºC Max. Heating Rate: ≤ 10 °C/min (Recommended) Electric bottom loading station: 390 x 390 mm with 100 Kg max. Gas Flow Ports 1/2" gas inlet and ~1" gas outlet on the top Control Panel Touchscreen control panel with PLC Eurotherm 3000 series Temperature Controller with10 programs ( 24 segments) ± 0.1 ºC temperature accuracy Overheat alarm, Deviation alarm, broken thermocouple alarm RS 485 communication port for remote control. PC software and interface are included Bottom loading control Compliance CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost.


Furnace Features
  • Two-layer steel casing with air colling gap.
  • 40x40x45 cm heating chamber with 30x30x30 cm uniform heating space within +/- 5 °C
  • Electric bottom loading for Rapid thermal heating and cooling process.
  • High purity thermal insulation material for better energy-saving
  • Touch screen panel for easy and safe operation.
Power
  • 220 VAC, 50/60 Hz three-phase
  • Max. Power: ~ 45 kW
Working Temperature
  • 1600 °C, continuously
  • 1700 °C, < 1 hr

Heating Chamber
  • 400L x 400 W x 450 (H), mm ( ~16" H x 16"D x 18"H)
  • Nominal Capacity: ~ 72 L
  • Heating Element: 1800oC grade MoSi2, 27 pcs 3 zones heating with 3 thermal couples (B)
  • Uniform Heating Space: 300 x 300 x300 mm within +/- 3ºC
  • Max. Heating Rate: ≤ 10 °C/min (Recommended)
  • Electric bottom loading station: 390 x 390 mm with 100 Kg max.
  • Gas Flow Ports 1/2" gas inlet and ~1" gas outlet on the top


Control Panel
  • Touchscreen control panel with PLC
  • Eurotherm 3000 series Temperature Controller with10 programs ( 24 segments)
  • ± 0.1 ºC temperature accuracy
  • Overheat alarm, Deviation alarm, broken thermocouple alarm
  • RS 485 communication port for remote control.
  • PC software and interface are included
  • Bottom loading control

Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available upon request at extra cost.
