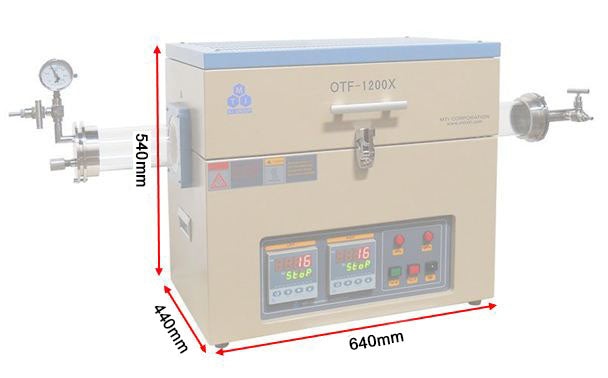

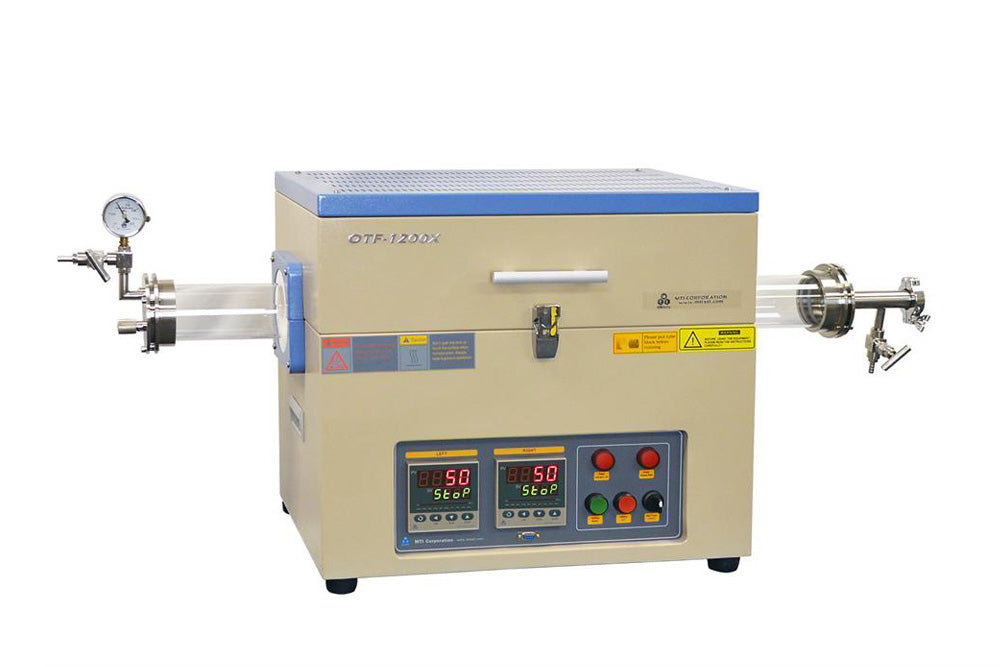

Furnace structure
|
- Double-layer steel case with two cooling fans, which ensures low surface temperature
- Energy-saving high-purity fibrous alumina liner and insulation
- High-purity Al2O3 coating which provides a longer service life
|
| Power |
3 KW (20A Breaker) |
| Voltage |
AC 208-240V Single Phase, 50/60 Hz, a power cord is included without the plug.
|
| Temperature range |
100~1100°C (Continuous); 1200°C (<1 hour) |
| Max. Heating Rate |
≤ 20°C /min |
|
Tube Accessories (When the tube size is selected, compatible accessories will match it automatically, please refer to standard package for details)
|
|
Heating Zone Length |
- Two zones: each zone length 7.7" (196 mm)
- Total 17" (432 mm) heating zone
|
Constant Temp. Zone
|
- 150mm (+/-1°C) for each heating zone

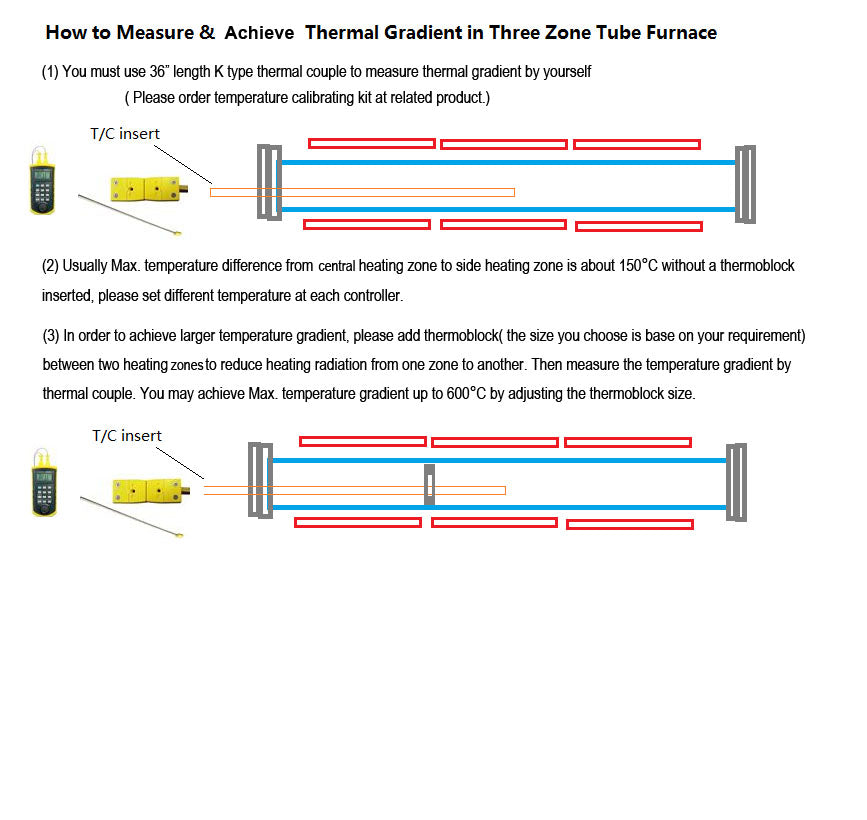

- A longer constant temperature zone ( about 200mm ) can be created by setting both zones at the same temperature
- Please click the pic to view the detailed temperature uniformity profile at 800C.
|
Temperature Controllers |

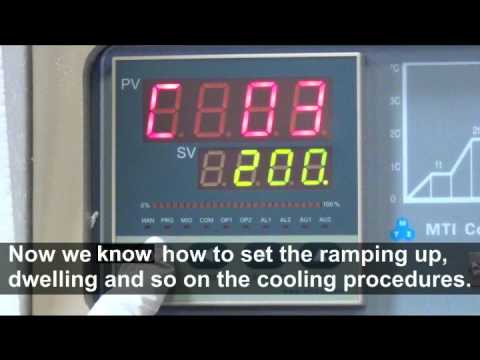

- 2 digital controllers with 30 programmable segments for precise control of heating rate, cooling rate, and dwell time
- Built-in PID Auto-Tune function with overheating & broken thermocouple protection
- Over-temperature protection and alarm allow for operation without attendant(s)
- +/- 1 ºC temperature accuracy
- Two K-type thermocouples (one for each zone)
- RS485 Communications Port
- Optional:
- The furnace may be operated by a PC by installing a control module. Please order an MTS-02 control module at an extra cost
- If you order the PC control module together with the furnace, we will install and test it before shipping. We recommend you to order a computer laptop from us
-
|
| Thermocouple |
|
| Temperature Accuracy |
+/- 1°C |
| Heating Element |
Fe-Cr-Al Alloy doped by Mo |
Vacuum Flange & Fitting Ports
(Certain flange sizes will be matched as the tube size is selected in the options bar)
|

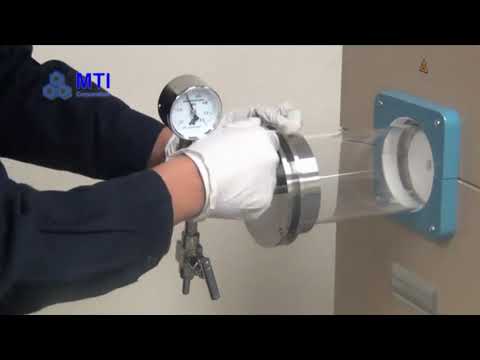

- One pair of SS 304 vacuum flange with double high-temperature silicone O-rings are Included
- One Vacuum pressure gauge is installed, and one digital vacuum gauge is available upon request at an extra cost
- The flange set has two 1/4'' Bard fittings, a two-needle valve, one set of KF25 quick clamps, one blank flange fitting, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert), and a KF25 vacuum port (click the picture in the left to see details)
- The vacuum level can reach 10^-2 torr by a quality mechanical vacuum pump and 10^-5 torr by a molecular pump
-
Optional: Please choose a quality mechanical pump or molecular pump (please click the pictures below to find the right one for your application)
|
Laptop, software Control(Optional)
|
- Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial)
-
Labview Temperature Control System (MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record, and plot data for MTI furnaces.
- A wireless remote control provides up to 300 meters of operating range.
-
Note: The software is only compatible with MTI’s Yudian Temperature Controller.
|
| Compliance |
- CE Certified
- NRTL (UL61010) or CSA certification is at an extra cost.
|
Application Notes
Click here to learn the installation of a gas regulator.
|
|
