Four Zones 1200oC Tube Furnace w/ Temperature Controllers for 1 or 2" Tube - OTF-1200X-IV-S

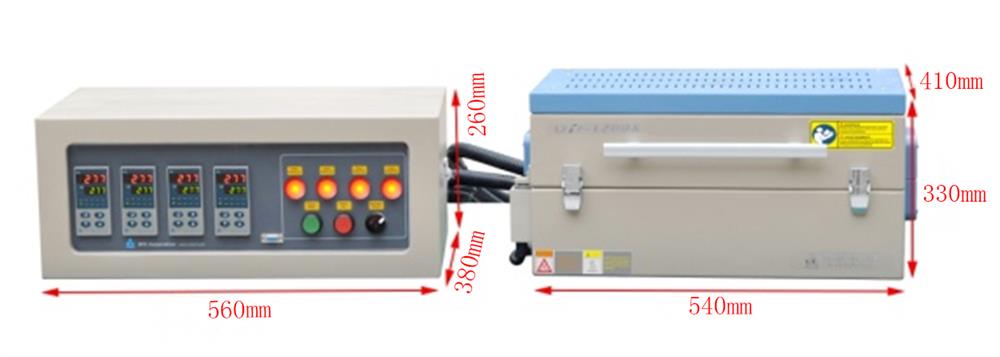

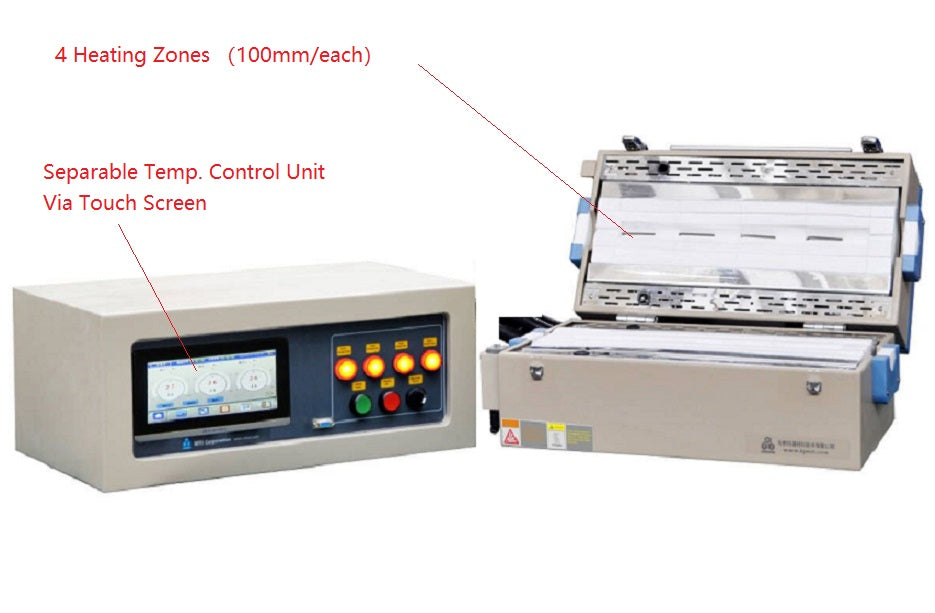

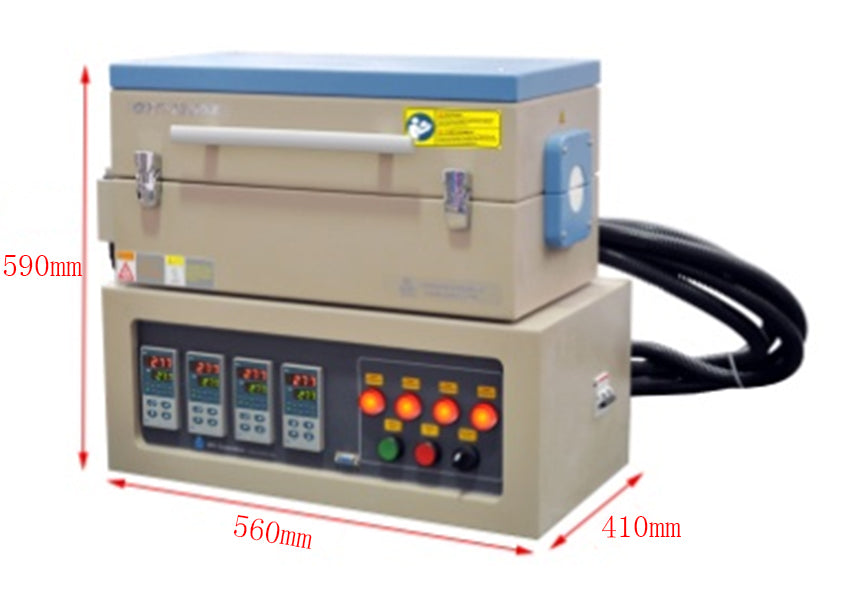

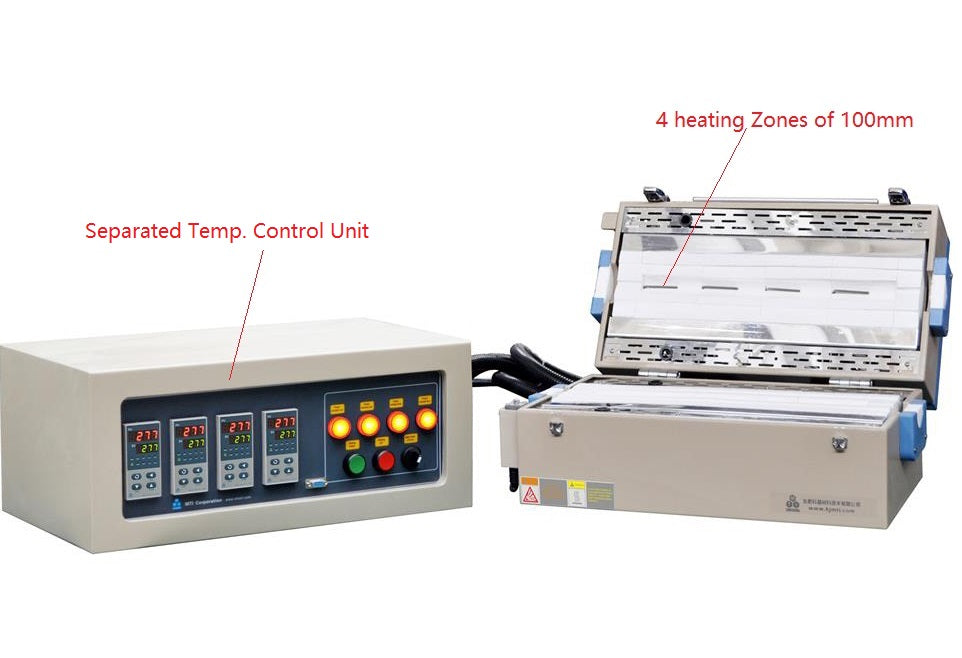

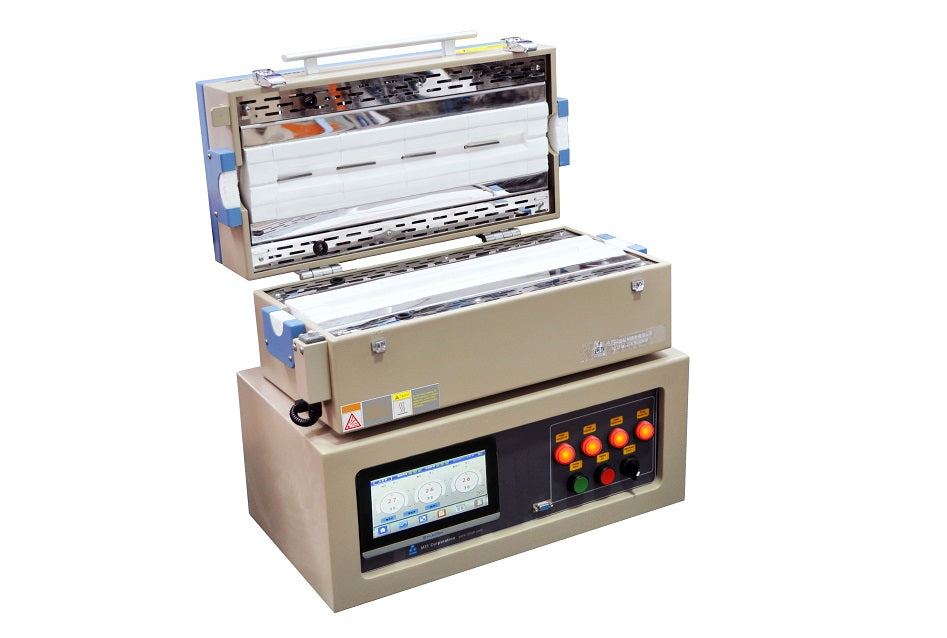

OTF-1200X-IV-S is the smallest 1100 o C Four- Zone split tube furnace with a separate temperature control console. Such a four-zone furnace can create a step thermal gradient or uniform temperature zone up to 10" long by adjusting the four zones' temperature. The furnace can accept 1-2” OD processing tube (with min. 1000mmL). Four digital temperature controller is built in a separable unit .  It is an excellent furnace for various CVD, and PVD applications.

Specifications

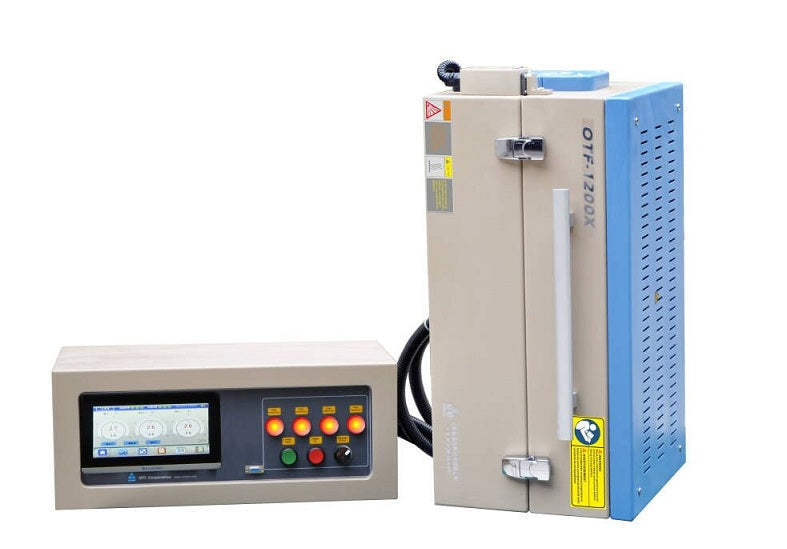

Furnace structure	Double layer steel case with air cooling keeps the furnace surface temperature lower than 60°C. Energy-saving high purity fibrous alumina insulation. Heating Element:1300C grade Fe-Cr-Al Alloy doped by Mo 400mm long heating chamber with built-in four high-quality thermal couples.  The furnace heating module can be positioned horizontally or vertically as shown in the images below (Note: customers are responsible for DIY the support frame/bracket in order to maintain its vertical position)
Power & Voltage	AC 110V Single Phase, 50/60 Hz, 30 A (Use a 5000W transformer for 208-240VAC). 3 KW Max. (a 32A circuit breaker is installed) A powder cord is included without a plug  (Never plug the equipment into a NEMA 5-15/20R wall outlet)
Max. Temperature	Max. working temperature: 1200oC (<1 Hour, without vacuum) Continuous Working Temperature 1100oC Max. Heating Rate: ≤ 20oC /min
Heating Zones	Four heating zones with independent temperature control Each heating zone length 100 mm Total heating zone length: 400mm (15.75" in total) Max. Constant temperature zone length 250mm, +/- 1°C (if 4 zones are heated to the same temperature) Max. temperature difference between adjacent zones is 200°C.
Temperature Controllers	Four digital temperature controllers are included and control 4 heating zone independently,  PID automatic control for heating rate, cooling rate, and dwell time up to 30 segments Built-in overheating & broken thermocouple protection. +/- 1 ºC temperature accuracy. Four K-type thermocouples (one for each zone). RS485 communications port Software and remote PC operation are available at an extra cost. Touch screen controller is available at an extra cost
Optional Processing Tube & Vacuum flange (Optional)	The furnace can accommodate <= 1" Dia. or 2" x 40" long quartz tube with vacuum flanges and thermal blocks. These accessories are not included in the standard package, please click the pictures below to order.

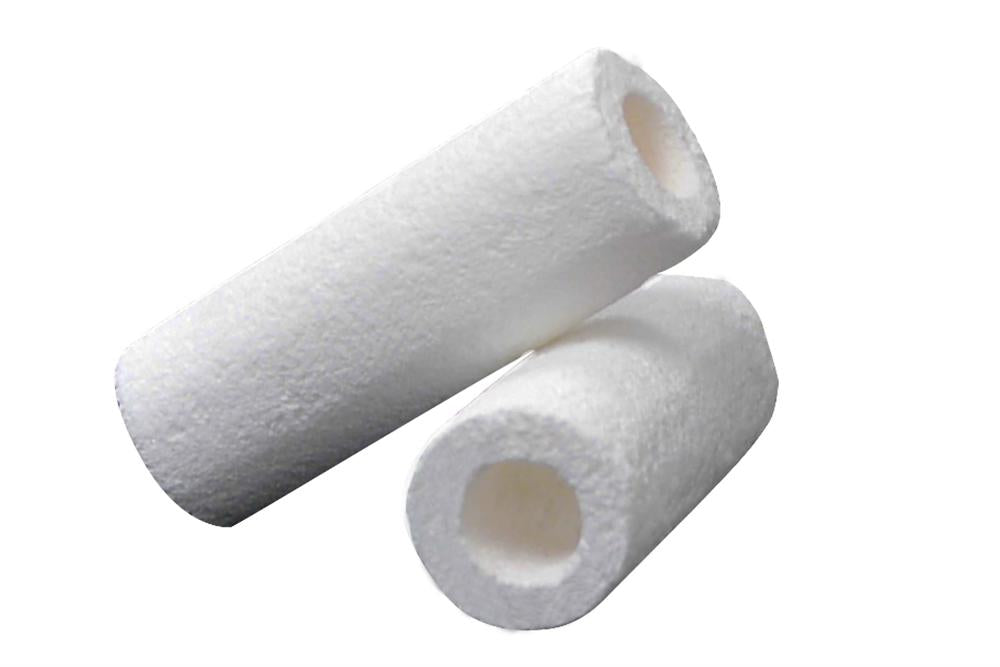

Thermal Block Placement
Compliance	CE Certified NRTL or CSA certification is available upon request
Options (click picture to order at extra cost)	Please click Pic.1 to order a digital vacuum gauge For CVD application, suggest you choose a rotary pump with cold trap ( by click Pic,2) If need a high vacuum > 10-5 torr, please click Pic. 2 to order a turbo pump Pic.1 Pic. 2
Operation Instruction	The tube furnaces with quartz/mullite tubes are designed for use under vacuum and low pressure <0.2 bars Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator. Vacuum pressures may only be safely used up to 1000°C
