Please view " Tailoring the Edge Structure of Molybdenum Disulfide towards Electrocatalytic Reduction of Carbon Dioxide " published by ACS Nano, Dec 07, 2016, in which an MTI OTF-1200X three-zone furnace was used for Ta and Nb-doped MoS2 synthesis.

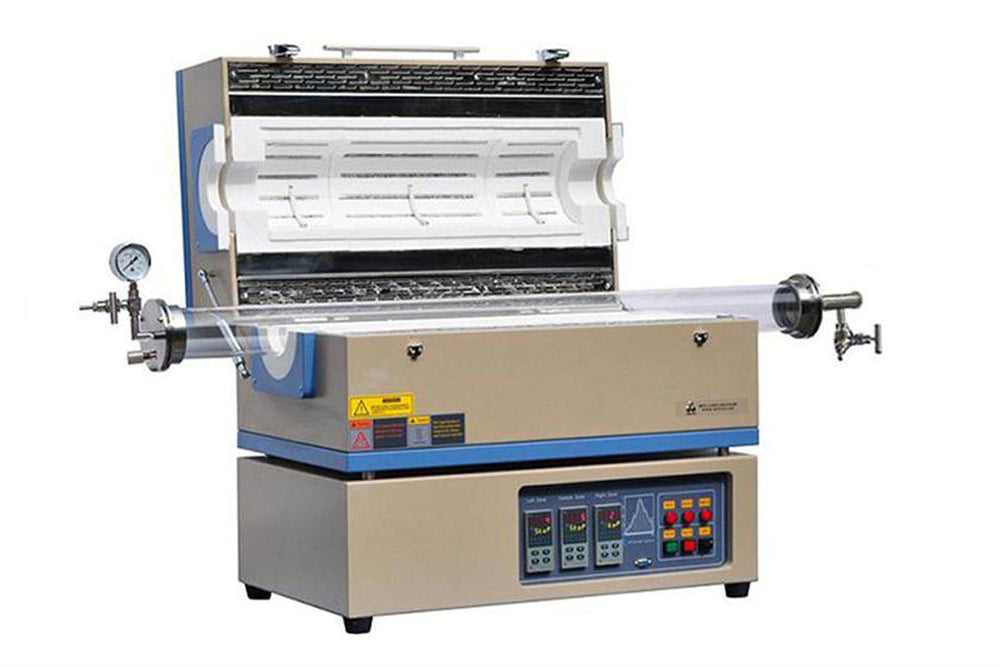

OTF-1200X-III-S is 24" Long ( 6"+12"+6") split-able three-zone tube furnace with quartz tube (size selectable) and conventional flange. Three 30 segments temperature controllers are installed with K-type thermal couples. Microprocessor-based self-tuning PID provides excellent control with no overshooting and +/- 1 °C accuracy. It is an excellent furnace for sample annealing, diffusion, and sintering in the various gas atmosphere up to 1200°C.

SPECIFICATIONS:

Furnace structure
  • Double-layer steel case with two cooling fans which ensure low surface temperature;
  • Energy-saving high purity fibrous alumina insulation;
  • Two fibrous ceramic tube blocks are included for blocking heat radiation from inside of the tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating).
  • Quartz block (Optional) is ideal for more cleanness and a higher achievable vacuum.
The furnace can be separated from the temperature controller and place it on remote location

Rated voltage AC 208-240V Single Phase, 50/60 Hz (30A breaker required; Powder cord is included without plug)
Power consumption 5KW Max.
Heating elements Fe-Cr-Al Alloy doped by Mo
Heating zone length
  • Three zones: 610mm (24") in total
  • Z1 - Z2 - Z3152.4mm (6") + 304.8mm (12") + 152.4mm (6")
  • +/-1ºC Constant Temperature Zone: 260 mm length
  • +/-2ºC Constant Temperature Zone: 480 mm length (click the pic below for detail)
Fused Quartz Tube
Quartz Tube: 216 OD x 208 IDx 1020L mm( 8.5"OD x 8.2" x 40"L) for DIY Tube Furnace - EQ-QZTube-216FE
 Model: OTF-1200X-III-S-UL-60
60 O.D x 55 I.D x 1200 L (mm)		 Model: OTF-1200X-III-S-UL-80
80 O.D x 72 I.D x 1200 L (mm)		 Model: OTF-1200X-III-S-UL-100
101 O.D x 92 I.D x 1200 L (mm)		 Model: OTF-1200X-III-S-UL-5
130 O.D x 122 I.D x 1200 L
Warning: The tube furnaces with quartz tube are designed for use under vacuum and low pressure < 0.12 Mpa (absolute pressure)
Heating temperature
  • Max. Heating Temperature: 1200°C (<1 hour)
  • Continuous Heating Temperature: 1100°C
  • Max. Heating Rate: 20°C/min
Temperature Controllers

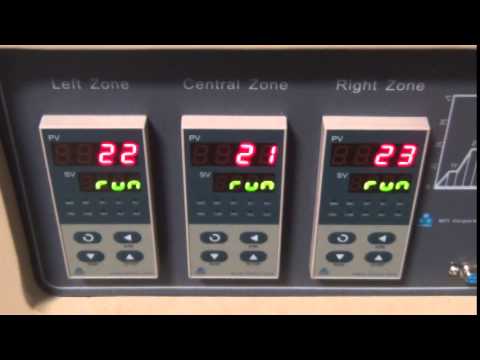

  • Three MTE certified Temperature controller with 30 programmable segments
  • Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
  • Over-temperature protection and alarm allow for operation without an attendant.
  • +/- 1 ºC temperature accuracy.
  • Three K-type thermocouples (one for each zone).
  • RS485 Communications Port.
European Temperature Controllers (optional upgrade)
  • 1 heating channel
  • 1 program of 8 or 24-segment
  • Alarm Relay: Form 'A' and Form ‘C’ built-in
  • Digital Communications: RS485
  • Temperature Accuracy: ± 0.1ºC
  • Recipes: Using a PC tool recipes can be created that can be used to change the operating parameters of the 3000 simply by selecting a new recipe via the HMI. This is very useful where multiple products are processed using the same controller but require different parameters to be set.
Vacuum Flange and Gauge
  • One pair of SS 304 vacuum flange with double high-temperature silicone O-ring is Included
  • Default flange with 1/4'' Bard fittings, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert) and a KF25 vacuum portclick bottom left picture to see details )
  • One Vacuum/ pressure gauge is installed on one side flange
  • The vacuum level can reach 10E-2 torr by the quality mechanical vacuum pump and 10E-5 torr by a turbo pump
  • Optional:
    • You may choose a hinged type flange ( see pic below middle ) to make sample loading at easy.
    • You may order the digital molecular pump for a faster and better vacuum
    • You may order flange support to avoid tube rotating ( click Pic below right )
          24"L 3 Zone Tube Furnace w/ Hinged Flange & Quartz Tube (80-130mm, 1200C Max) - OTF-1200X-III-SHG     33 L/s Compact Turbo Vacuum Pump System with Gauge, Valve & SS Bellows - Made in Germany - PV-HVS-LD
Laptop, software &l(Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30-day free trial) 9ncluded
  • Labview Based Temperature Control System (MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, and record, and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.
Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at the extra cost
Application Notes
pic.1 Portable Digital Temperature Calibrator with PC Software - NIST certificated - TC-calibrator-LDpic.2 Inert Gas Regulator, Two Stage Brass 0-100 psi Analytical Cylinder Regulator - CGA-580-LDpic.3Automatic and Vacuum-Sealed Linear Sliding Device for Tube Furnace - Slide-300Pic. 4


STANDARD PACKAGE WITH FURNACE:

No. NAME Qty PIC OTF-1200X-III-S-60 OTF-1200X-III-S-80 OTF-1200X-III-S-4 OTF-1200X-III-S-130
1 Fused quartz tube 1 pc
QZTube-60GE-1200 QZTube-80D-48 QZTube-100

QZTube-125GE-1200
2 Alumina fiber foam tube block 2 pcs
F-T-block-52 F-T-block-70 F-T-block-92 F-T-block-125
3 Hook for moving the sample 1 pc
FLG-kit-2 FLG-kit-2 FLG-kit-2 FLG-kit-2
4 Metric Hex-wrenches 1 set
√ √ √ √
5 Vacuum flanges 1 pair

FL-60 FL-80 FL-125


AVAILABLE OPTIONAL ACCESSORY:

Part No.
Description
Quick Link
MTS02 Computerized Temperature Control System

High vacuum station (Mechanical pump + turbo molecular pump.)

Gas mix station (Float flow meter / Mass flow meter) (2, 3, 4channels selectable)

Compact Flow Meter (float flow meter/mass flow meter)
QBlock-90 90mm O.D heat-insulating quartz block

Quartz Boats /crucible /container /sample holder
FM-Cart
Heavy Duty Mobile Car for All MTI Tube and Box Furnaces
