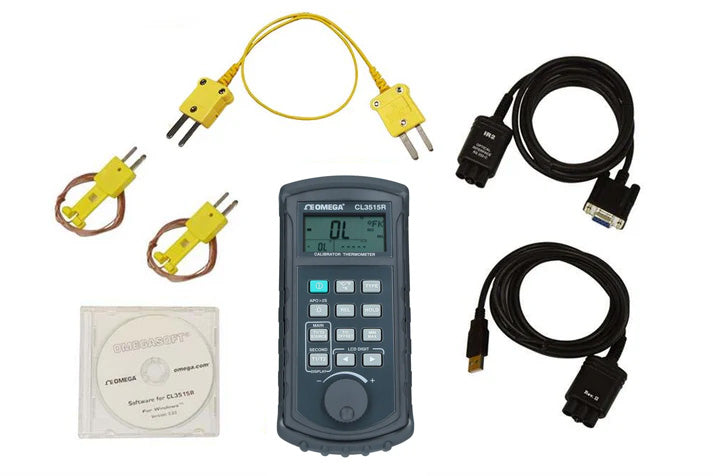

Portable Digital Temperature Calibrator with PC Software - NIST certificated - TC-calibrator-LD
  • Portable Digital Temperature Calibrator with PC Software - NIST certificated - TC-calibrator-LD
Portable Digital Temperature Calibrator with PC Software - NIST certificated - TC-calibrator-LD

Portable Digital Temperature Calibrator with PC Software - NIST certificated - TC-calibrator-LD

SKU: tc-calibrator-ld

Price: RFQ

Specifications

 The CL3515R is a portable precision calibrator/thermometer with a 4-digit LCD. It is designed to use external K/J/T/E/R/S/N/L/U/B/C type thermocouples as temperature sensors. MTI offers a complete selection of thermocouples, or we can custom-design parts to meet your specifications. The thermometer features a dual thermocouple input and an adjustable thermocouple offset. SPECIFICATIONS Features: 11 Types of Thermocouples: K, J, T, E, R, S, N, L, U, B, and C (in o C, o F, or K), and mV Signal Output USB and RS232 Interface with Windows Software (compatible with winXP, winVista and win7) NIST-Traceable Calibration Certificate with 13 Data Points (Included) 2 Channels for Thermocouple Temperature Measurement (T1 and T2) with Offset Adjustment Ergonomic Rotary Knob Allows for One-Handed Operation Thermocouple (Resolution) Measurement Range* * According to temperature standard ITS-90. K: (0.1 o ) -200 to 1372 o C(-328 to 2501 o F) J: (0.1 o ) -210 to 1200 o C(-346 to 2192 o F ) T: (0.1 o ) -250 to 400 o C(-418 to 752 o F ) E: (0.1 o ) -250 to 1000 o C(-418 to 1832 o F ) R: (1 o ) 0 to 1767 o C(32 to 3212 o F ) S: (1 o ) 0 to 1767 o C (32 to 3212 o F ) N: (0.1 o ) -200 to 1300 o C (-328 to 2372 o F ) L: (0.1 o ) -200 to 900 o C (-328 to 1652 o F ) U: (0.1 o ) -200 to 600 o C (-328 to 1112 o F ) B: (1 o ) 600 to 1820 o C (1112 to 3308 o F ) C: (1 o ) 0 to 2316 o C (32 to 4200 o F ) Accuracy: Thermocouple Types K/J/T/E/L/U: +/-(0.05% rdg + 0.5 o C) -50 to 1372 o C[+/-((0.05% rdg + 1.0 o F ) -58 to 2501 o F] +/-((0.05% rdg + 1.0 o C) -50 to -250 o C[+/-((0.05% rdg + 2.0 o F ) -58 to -346 o F ] Thermocouple Type N: +/-((0.05% rdg + 1.0 o C) -50 to 0 o C [+/-((0.05% rdg + 2.0 o F ) -58 to 32 o F ] +/-((0.05% rdg + 0.5 o C) 0 to 1300 o C[+/-((0.05% rdg + 1.0 o F ) 32 to 2372 o F ] Thermocouple Types R/S/B/C: +/-((0.05% rdg + 2 o C) 0 to 1767 o C[+/-((0.05% rdg + 4 o F ) 32 to 3212 o F ] Thermocouple Simulation Range: Resolution: 0.1 o (1 o for R/S/B/C) Accuracy*: +/-(0.3 o C + 10 uV) * Accuracy is specified for operating temperatures from 18 to 28 o C (64 to 82 o F ) for 1 year, not including thermocouple error. mV Range: -25 to 75 mV Resolution: 10 uV Accuracy: +/-(0.025% + 1 digit Temperature Coefficient: 0.1 times the applicable accuracy specification per o C from 0 to 18 o C and 28 to 50 o C (32 to 64 o Fand 82 to 122 o F) Display 4-digit LCD with max reading of 19999 Input Connector Miniature thermocouple connector (SMP type) Power: 9V battery (included) Battery Life 17.5 hours nominal with low-battery indicator Dimensions 192 H x 91 W x 52.5 mm D(7.5 x 3.5 x 2.1") Weight 320 g (0.7 lb) Environmental Ambient Operating Ranges 0 to 50 o C (32 to 122 o F), <80% RH Storage Ranges -20 to 60 o C (-4 to 140 o F), <70% RH Manual Manual , Software Warranty One year limited warranty with lifetime support Packing List 1 Digital Temperature Calibrator 1pc 2 IR2 to USB connection cable 1pc 3 IR2 to RS232 connection cable 1pc

Features:
  • 11 Types of Thermocouples: K, J, T, E, R, S, N, L, U, B, and C (in oC, oF, or K), and mV Signal Output
  • USB and RS232 Interface with Windows Software (compatible with winXP, winVista and win7)
  • NIST-Traceable Calibration Certificate with 13 Data Points (Included)
  • 2 Channels for Thermocouple Temperature Measurement (T1 and T2) with Offset Adjustment
  • Ergonomic Rotary Knob Allows for One-Handed Operation




Thermocouple (Resolution) Measurement Range*
* According to temperature standard ITS-90.
  • K: (0.1o) -200 to 1372 oC(-328 to 2501oF)
  • J: (0.1o) -210 to 1200 oC(-346 to 2192 oF )
  • T: (0.1o) -250 to 400 oC(-418 to 752 oF )
  • E: (0.1o) -250 to 1000 oC(-418 to 1832 oF )
  • R: (1o) 0 to 1767 oC(32 to 3212 oF )
  • S: (1o) 0 to 1767 oC (32 to 3212 oF )
  • N: (0.1o) -200 to 1300 oC (-328 to 2372 oF )
  • L: (0.1o) -200 to 900 oC (-328 to 1652 oF )
  • U: (0.1o) -200 to 600 oC (-328 to 1112 oF )
  • B: (1o) 600 to 1820 oC (1112 to 3308 oF )
  • C: (1o) 0 to 2316 oC (32 to 4200 oF )



Accuracy:
  • Thermocouple Types K/J/T/E/L/U:
    • +/-(0.05% rdg + 0.5oC) -50 to 1372oC[+/-((0.05% rdg + 1.0 oF ) -58 to 2501oF]
    • +/-((0.05% rdg + 1.0oC) -50 to -250oC[+/-((0.05% rdg + 2.0 oF ) -58 to -346 oF ]
  • Thermocouple Type N:
    • +/-((0.05% rdg + 1.0oC) -50 to 0 oC [+/-((0.05% rdg + 2.0 oF ) -58 to 32 oF ]
    • +/-((0.05% rdg + 0.5oC) 0 to 1300oC[+/-((0.05% rdg + 1.0 oF ) 32 to 2372 oF ]
  • Thermocouple Types R/S/B/C:
    • +/-((0.05% rdg + 2oC) 0 to 1767oC[+/-((0.05% rdg + 4oF ) 32 to 3212 oF ]



Thermocouple Simulation Range:
  • Resolution: 0.1o (1o for R/S/B/C)
  • Accuracy*: +/-(0.3oC + 10 uV)
  • * Accuracy is specified for operating temperatures from 18 to 28oC (64 to 82 oF ) for 1 year, not including thermocouple error.
  • mV Range: -25 to 75 mV
  • Resolution: 10 uV
  • Accuracy: +/-(0.025% + 1 digit
Temperature Coefficient: 0.1 times the applicable accuracy specification per oC from 0 to 18 oC and 28 to 50oC (32 to 64oFand 82 to 122oF)
Display 4-digit LCD with max reading of 19999
Input Connector Miniature thermocouple connector (SMP type) Power: 9V battery (included)
Battery Life 17.5 hours nominal with low-battery indicator
Dimensions 192 H x 91 W x 52.5 mm D(7.5 x 3.5 x 2.1")
Weight 320 g (0.7 lb)
Environmental Ambient Operating Ranges 0 to 50oC (32 to 122oF), <80% RH
Storage Ranges -20 to 60oC (-4 to 140oF), <70% RH
Manual Manual , Software
Warranty One year limited warranty with lifetime support
,
Packing List
1 Digital Temperature Calibrator 1pc
2 IR2 to USB connection cable 1pc
3 IR2 to RS232 connection cable 1pc
