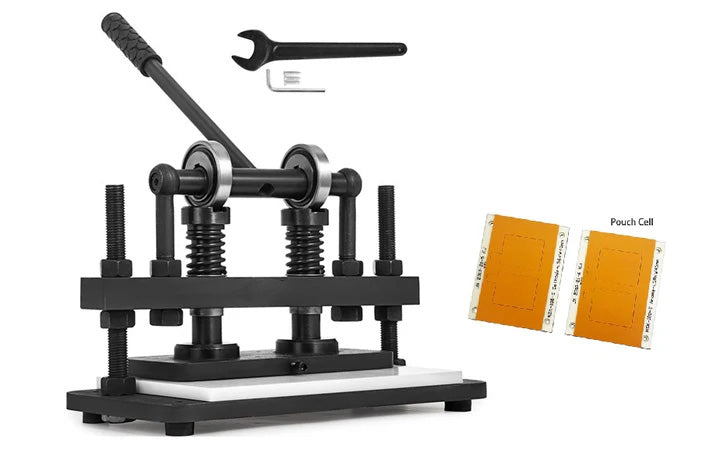

 MSK-T-18 is a manual die cutter set for cutting pouch cell battery cathode and anode electrodes. One pair of die cutters is included: One for cutting two cathode sheets of L56 mm x W43 mm (W), and another for cutting two anode sheets of L58 mm x W45 mm. Customized die-cutters are available upon request. It is a cost-effective die cutter to make pouch cells for battery research SPECIFICATIONS Cutting Dies Dimension The standard Cathode and Anode Cutting dies are preinstalled in the cutters for immediate use (Pic.1) Cathode Die (mm): 56 L x 43 W with the protrude current collector of 10 L x 5 W (Pic.2) Anode Die (mm): 58 L x 45 W with the protrude current collector of 10 L x 5 W (Pic.2) <100 mm width electrode sheet is required to insert into the cutter (please see the video to learn the operation) Customized die size is available for this device. Cutter Structure Manual push-down rod for cutting Pressing Fixture size: 4.7" x 10.2" One PVC plate is put on the bottom to protect the cutting die One set of wrenches and a screw drive are included for adjusting the pushing plate position Cutting Dies for Pouch Cell Two die cutters are included, and one die cut two pcs of electrode Cathode Die: 56 mm (L) x 43 mm (W) with 14 mm (L) x 11 mm (W) protrude current collector Anode Die: 58 mm (L) x 45 mm (W) with 13 mm (L) x 11 mm (W) protruding current collector Maximum Customized Size: 120 mm (L) x 80 mm (W) (including current collector) Other customized sizes are at an extra cost; don't hesitate to get in touch with us for more details. Cutting Dies for Coin Cell One set of 21 pieces circle cutters in different sizes is included. Diameter: 1mm(0.04"), 2mm(0.08"), 3mm(0.12"), 4mm(0.16"), 5mm(0.20"), 6mm(0.24"), 7mm(0.28"), 8mm(0.32"), 9mm(0.36"), 10mm(0.40"), 11mm(0.44"), 12mm(0.48"), 15mm(0.6"), 20mm(0.80"), 25mm(0.98"), 30mm(1.18"), 35mm(1.38"), 40mm(1.57"), 45mm(1.77"), 50mm(1.97"), 55mm(2.17"). Customers can choose the desired size based on the experimental needs. Cutting Depth Max. 0.2 mm (tested with aluminum laminated film) Cutting Accuracy ±0.1mm For better cutting accuracy, please consider the precise die cutter MSK-180SP and MSK-180-N Compliance No UL is required because of no electricity Application Notes Combining with MTI 3 in 1 vacuum sealer, and ultrasonic welder, you can now make a single or multi-layer pouch cell to explore new generation battery material with more practical data at an ever-lower cost The discount is available for new faculty when purchasing a full set of equipment

Cutting Dies Dimension
  • The standard Cathode and Anode Cutting dies are preinstalled in the cutters for immediate use (Pic.1)

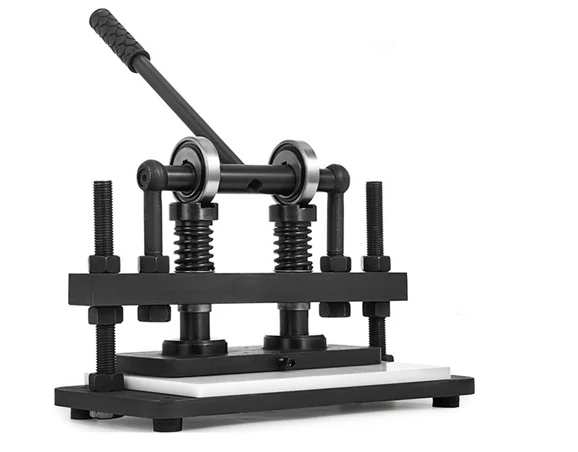

    • Cathode Die (mm): 56 L x 43 W with the protrude current collector of 10 L x 5 W (Pic.2)
    • Anode Die (mm): 58 L x 45 W with the protrude current collector of 10 L x 5 W (Pic.2)
    • <100 mm width electrode sheet is required to insert into the cutter (please see the video to learn the operation)
  • Customized die size is available for this device.
 Cutter Structure
  • Manual push-down rod for cutting

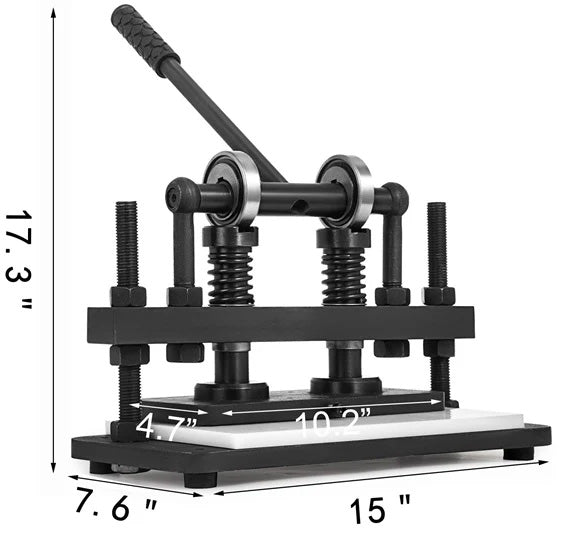

  • Pressing Fixture size: 4.7" x 10.2"
  • One PVC plate is put on the bottom to protect the cutting die
  • One set of wrenches and a screw drive are included for adjusting the pushing plate position

Cutting Dies

for Pouch Cell
  • Two die cutters are included, and one die cut two pcs of electrode
    • Cathode Die: 56 mm (L) x 43 mm (W) with 14 mm (L) x 11 mm (W) protrude current collector
    • Anode Die: 58 mm (L) x 45 mm (W) with 13 mm (L) x 11 mm (W) protruding current collector
  • Maximum Customized Size: 120 mm (L) x 80 mm (W) (including current collector)
  • Other customized sizes are at an extra cost; don't hesitate to get in touch with us for more details.

Cutting Dies for Coin Cell

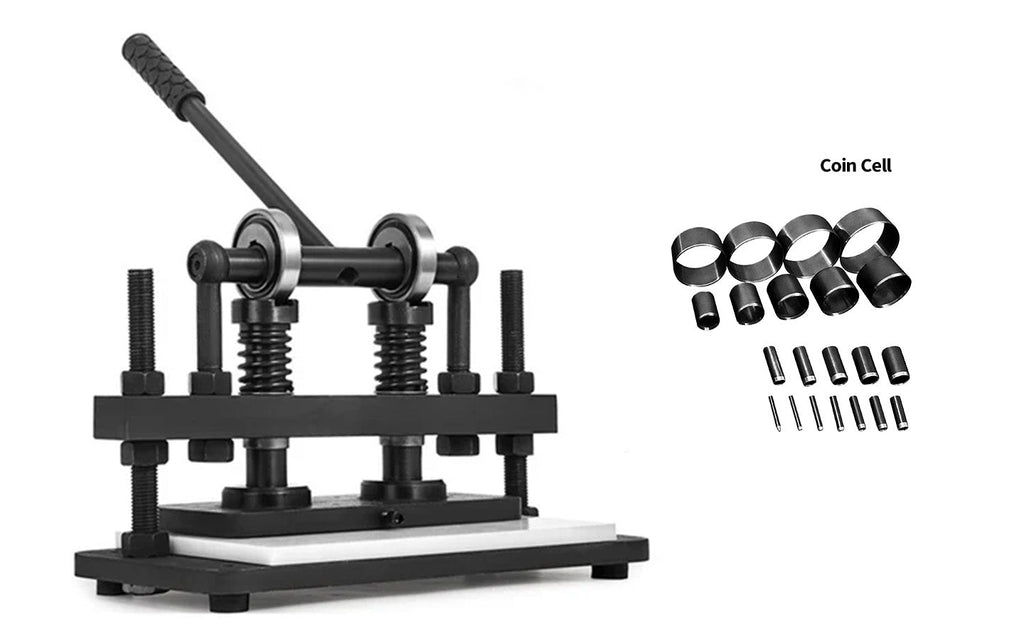

  • One set of 21 pieces circle cutters in different sizes is included.
  • Diameter: 1mm(0.04"), 2mm(0.08"), 3mm(0.12"), 4mm(0.16"), 5mm(0.20"), 6mm(0.24"), 7mm(0.28"), 8mm(0.32"), 9mm(0.36"), 10mm(0.40"), 11mm(0.44"), 12mm(0.48"), 15mm(0.6"), 20mm(0.80"), 25mm(0.98"), 30mm(1.18"), 35mm(1.38"), 40mm(1.57"), 45mm(1.77"), 50mm(1.97"), 55mm(2.17").
  • Customers can choose the desired size based on the experimental needs.
Cutting Depth
  • Max. 0.2 mm (tested with aluminum laminated film)
Cutting Accuracy
  • ±0.1mm
  • For better cutting accuracy, please consider the precise die cutter MSK-180SP and MSK-180-N
Compliance
  • No UL is required because of no electricity
Application Notes
  • Combining with MTI 3 in 1 vacuum sealer, and ultrasonic welder, you can now make a single or multi-layer pouch cell to explore new generation battery material with more practical data at an ever-lower cost
  • The discount is available for new faculty when purchasing a full set of equipment
