Furnace Structure
|
- 1800 grade fiber alumina with reflective coating -- maximum energy-saving design
- Double-layer steel structure with air cooling fan to keep the case's temperature below 60°C

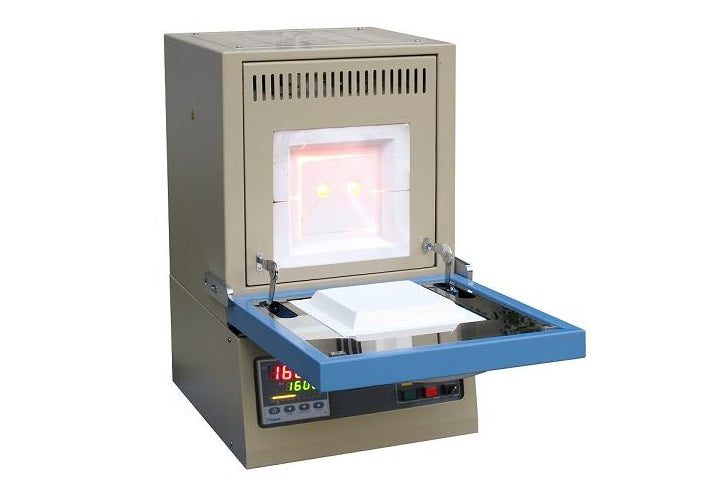

- Drop-down door for easy sample loading
- The built-in gas inlet (back) and venting port (top) for gas-controlled heating treatment.
|
|
Power
|
- AC 208 - 240V, 50/60Hz, single phase
- Note: Plug is not included
- 2.5 KW (Max)
- <1Kwif heating rate is at 10°C/min
|
|
Standard Working Temperature
|
1600°C or 2912°F (continuous)
|
|
Maximum Working Temperature
|
1700°C or 3092°F (< 3 hours)
|
|
Heating Rate
|
0 ~20 °C/min (≤10°C/min recommended)
|
|
Temperature Stability
|
+/- 1°C |
|
Heating Chamber
|

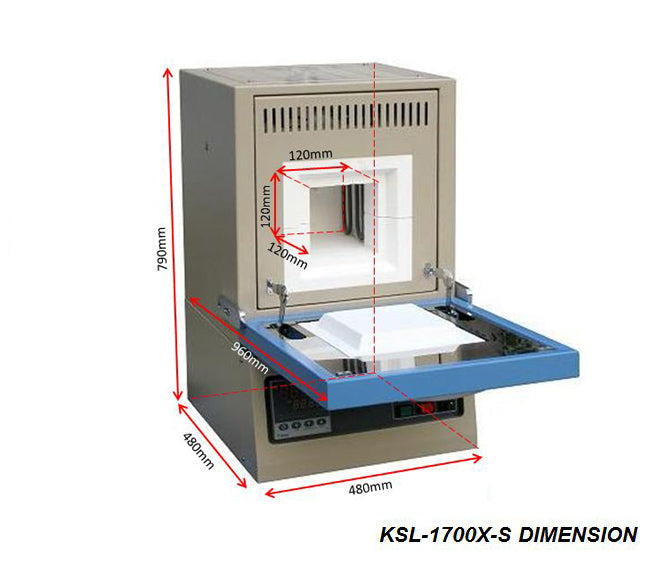

- Chamber: 120mm(L) x 120mm(W) x 120mm(H) ( 4.7" x 4.7" x 4.7"), 1.7 L Capacity
|
|
Temperature Uniformity
|
- +/- 5 °C over 50 mm (2") @ 1600°C
|
|
Heating Elements
|
1800 grade MoSi2 (4 pcs U shape) |
|
Thermocouple
|
B Type (Pt-Rh to Pt-Rh) with alumina tube (Browse product page for detail and replacement purchase.) |
|
Temperature Controller
|
-
FA-YD518P-AG temperature controller is included.
- Proportional–integral–derivative control (PID control) and auto-tune function
- 30 segments programmed with ramping, cooling and dwelling steps
- Built-in over-temperature alarm and thermocouple failure alarm
- +/- 1 ºC temperature control accuracy
- Default DB9 PC communication port
- MET Certified
|
Temperature controller (optional)
|
- MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit.
- You may upgrade the temperature controller to the Eurotherm 3504 Temperature Controller which is fully compatible with LabVIEW. This package includes a Eurotherm 3504 programmer, a communication cable (RS485 - USB) and a software CD included
|
| Laptop, software & WiFi Control (Optional) |
- Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial) for immediate use.
-
Labview Based Temperature Control System (MTS01)enables users to edit temperature profiles, manage heat-treatment recipes, record, and plot data for MTI furnaces.
- A wireless remote control provides up to 300 meters of operating range.
- The above features are available upon request at an extra cost (up to $1,000).
-
Note: The software is only compatible with MTI’s Yudian Temperature Controller
|
|
Optional Parts
|
You may order alumina crucible by click the picture below
|

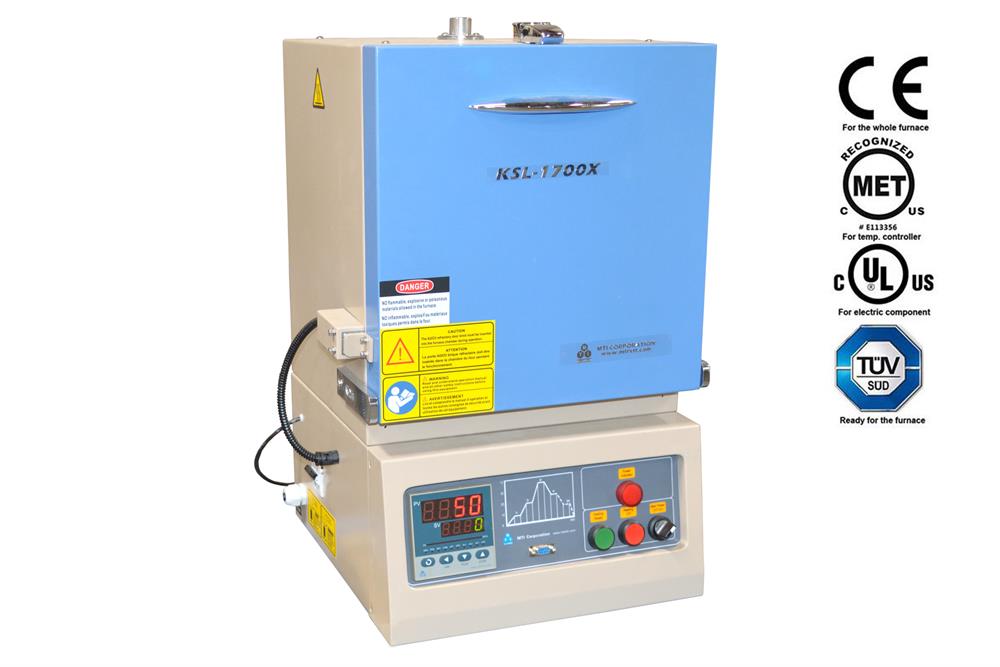

Compliance
|
- CE Certified
- NRTL or CSA certification is available upon request at the extra cost.
|
|
Application Notes
|
- For preserving the longevity of the furnace components, we recommend the heating rate not to exceed 10°C /min.
- The cooling rate shall also not exceed 10 °C /min.
- This furnace lacks vacuum sealing, and it is not recommended to use toxic or explosive gasses in this furnace without necessary safety controls and supervision.
- Small cracks may appear on the surface of the refractory ceramics with overuse. This is a normal occurrence and the cracks may be repaired with alumina coating.
- Please click here to learn how to DIY gas purging system.
- The refractory block must be inserted before the closing the door (click the picture on left for details).
|
