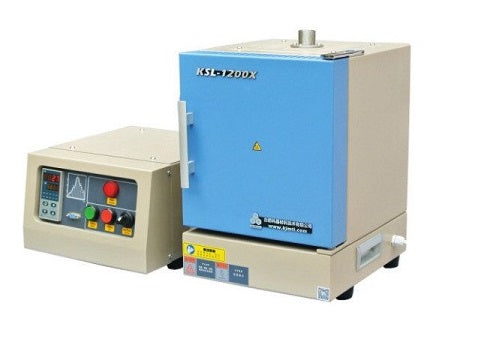

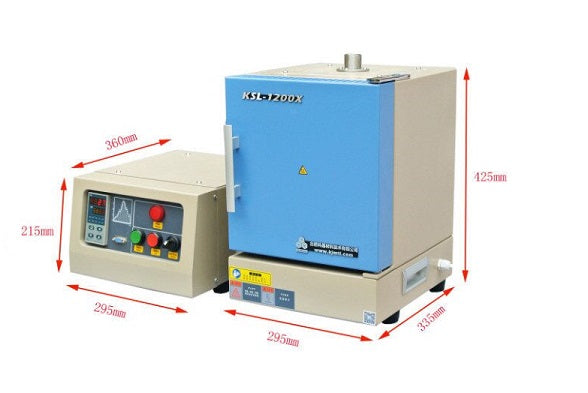

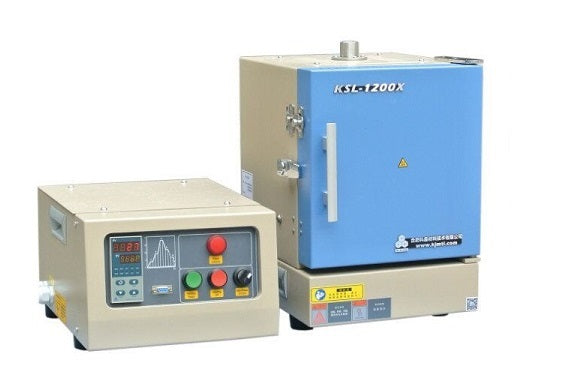

1200C Small Box Furnace (6"x6"x7", 4.2 liter) with Separated Programmable Controller - KSL-1200X-J-F
  • 1200C Small Box Furnace (6"x6"x7", 4.2 liter) with Separated Programmable Controller - KSL-1200X-J-F
  • 1200C Small Box Furnace (6"x6"x7", 4.2 liter) with Separated Programmable Controller - KSL-1200X-J-F
  • 1200C Small Box Furnace (6"x6"x7", 4.2 liter) with Separated Programmable Controller - KSL-1200X-J-F
  • 1200C Small Box Furnace (6"x6"x7", 4.2 liter) with Separated Programmable Controller - KSL-1200X-J-F
  • 1200C Small Box Furnace (6"x6"x7", 4.2 liter) with Separated Programmable Controller - KSL-1200X-J-F
1200C Small Box Furnace (6"x6"x7", 4.2 liter) with Separated Programmable Controller - KSL-1200X-J-F

1200C Small Box Furnace (6"x6"x7", 4.2 liter) with Separated Programmable Controller - KSL-1200X-J-F

SKU: ksl-1200x-j-f

Price: RFQ

Specifications

 SPECIFICATIONS: Structure High purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency. Heavy-duty double-layer structure with a cooling fan to keep furnace exteriors safe to touch. Double-layer steel case with forced-air cooling to ensure lower safer face temperature. One venting port is built on the top of the furnace One air inlet is located at the back of the furnace. A separate programmable digital temperature controller for using the furnace inside the glove box or a remote location Cable Length; ~3 meters Ar gas is compatible when used in a glove box Power 2.5KW (not suitable for running at 110V) Max. Current 15A Voltage 208 -240V Single Phase 50/60 Hz Note: Power cable included but without a plug. Please install a plug on your own or click the link below to choose a plug according to your country or your lab requirement. The feedthrough of a power cord for the glovebox is available upon request at extra cost. Operating Temp Range 1250 °C < 1 hour 100-1200 °C continuously Stability at 1000 ° C +/- 0.5 ° C Uniformity at 1000 ° C +/- 5 °C at W×D×H 100×80×100 mm Max. Heating Rate 30°C/ min. Thermocouple K types with Ceramic Sheath Temperature Controller FA-YD518P-AG temperature controller is included. Proportional–integral–derivative control (PID control) and auto-tune function 30 segments programmed with ramping, cooling and dwelling steps Built-in over-temperature alarm and thermocouple failure alarm +/- 1 ºC temperature control accuracy Default DB9 PC communication port Note: you may use the multi-channel controller to control multi-furnace as an optional Laptop, software (Optional) Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial). Labview Based Temperature Control System ( MTS01 ) enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces. A wireless remote control provides up to 300 meters of operating range. Temperature controller (optional) MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit. Compliance CE Certified NRTL (UL61010) or CSA certification is available at extra cost. Application Notes For longer furnace service life, we recommend the heating rate not to exceed 10 °C /min. The cooling rate should not exceed 10 °C /min either. Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with the alumina coating The heating module is easy to replace. Click the pic left to order the spare Heating module for replacement If firing material release vapor or smoking, please put the furnace into a fume hood as the left picture. Toxic, corrosive, or explosive gases are not allowed to use with this furnace without the necessary safety controls or supervision.

Structure
  • High purity alumina fiber insulation surrounding the chamber provides maximum energy efficiency.
  • Heavy-duty double-layer structure with a cooling fan to keep furnace exteriors safe to touch.
  • Double-layer steel case with forced-air cooling to ensure lower safer face temperature.
  • One venting port is built on the top of the furnace
  • One air inlet is located at the back of the furnace.
  • A separate programmable digital temperature controller for using the furnace inside the glove box or a remote location
    • Cable Length; ~3 meters
  • Ar gas is compatible when used in a glove box
Power 2.5KW (not suitable for running at 110V)
Max. Current 15A
Voltage
  • 208 -240V Single Phase 50/60 Hz
  • Note: Power cable included but without a plug. Please install a plug on your own or click the link below to choose a plug according to your country or your lab requirement.

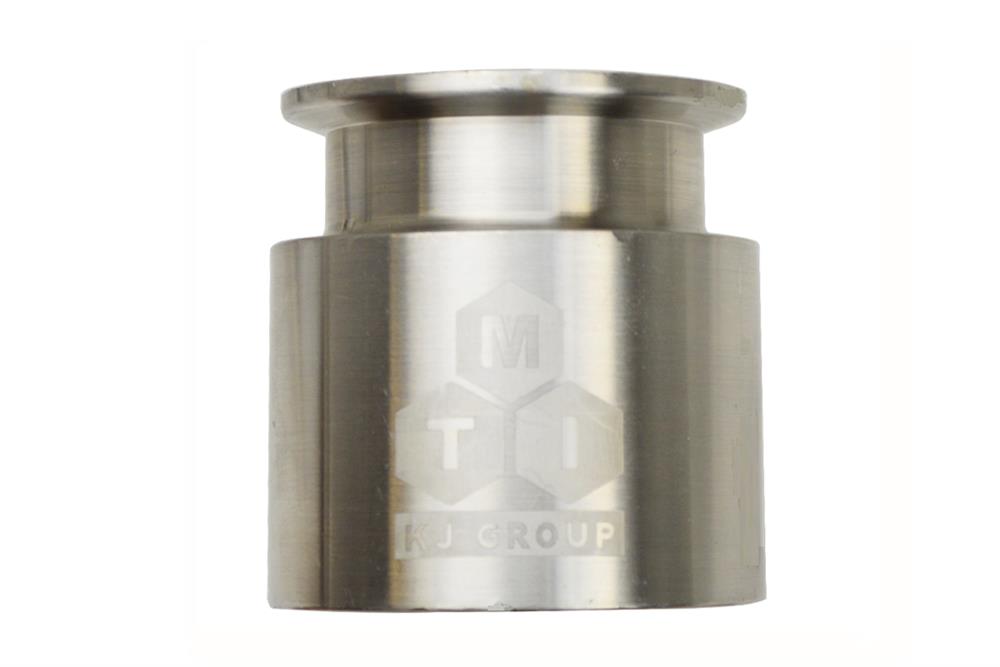

  • The feedthrough of a power cord for the glovebox is available upon request at extra cost.

Operating Temp Range
  • 1250 °C < 1 hour
  • 100-1200 °C continuously
Stability at 1000 °C +/- 0.5 °C
Uniformity at 1000 °C +/- 5 °C at W×D×H 100×80×100 mm
Max. Heating Rate 30°C/ min.
Thermocouple K types with Ceramic Sheath
Temperature Controller
  • FA-YD518P-AG temperature controller is included.
  • Proportional–integral–derivative control (PID control) and auto-tune function
  • 30 segments programmed with ramping, cooling and dwelling steps
  • Built-in over-temperature alarm and thermocouple failure alarm
  • +/- 1 ºC temperature control accuracy
  • Default DB9 PC communication port
  • Note: you may use the multi-channel controller to control multi-furnace as an optional
Laptop, software (Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial).
  • Labview Based Temperature Control System (MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.
Temperature controller (optional)
  • MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit.
Compliance
  • CE Certified
  •  NRTL (UL61010) or CSA certification is available at extra cost.
Application Notes
  • For longer furnace service life, we recommend the heating rate not to exceed 10 °C /min.
  • The cooling rate should not exceed 10 °C /min either.
  • Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with the alumina coating
  • The heating module is easy to replace. Click the pic left to order the spare Heating module for replacement
  • If firing material release vapor or smoking, please put the furnace into a fume hood as the left picture.
  • Toxic, corrosive, or explosive gases are not allowed to use with this furnace without the necessary safety controls or supervision.
