Three Zone Precision Temperature Control System (SCR ) with 30 Segments Programmable (9 KW) for DIY Furnace upto 1500C - MTC-Z3
  • Three Zone Precision Temperature Control System (SCR ) with 30 Segments Programmable (9 KW) for DIY Furnace upto 1500C - MTC-Z3
  • Three Zone Precision Temperature Control System (SCR ) with 30 Segments Programmable (9 KW) for DIY Furnace upto 1500C - MTC-Z3
Three Zone Precision Temperature Control System (SCR ) with 30 Segments Programmable (9 KW) for DIY Furnace upto 1500C - MTC-Z3

Three Zone Precision Temperature Control System (SCR ) with 30 Segments Programmable (9 KW) for DIY Furnace upto 1500C - MTC-Z3

SKU: mtc-z3

Price: RFQ

Specifications

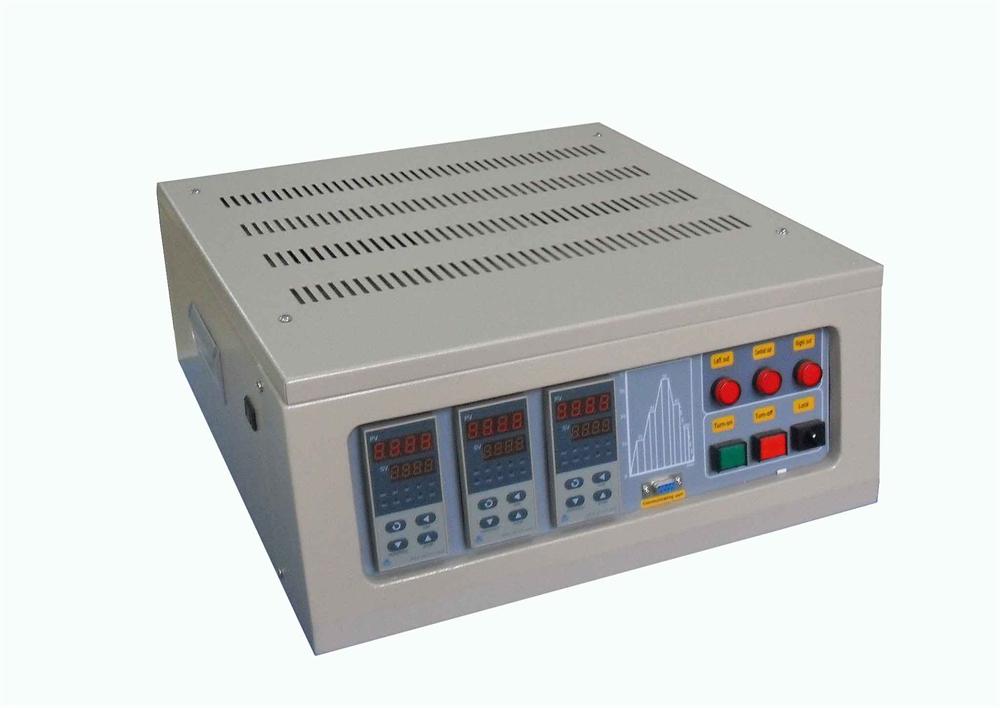

 EQ-MTC-Z3 temperature control unit is designed for precision control three zone tube furnace from 100 - 1500 o C with heating elements of resistant wire or SiC. Just connecting power cord and thermo-couple with the unit, you can run your furnace automatically. The unit is installed in a heavy duty steel case with precision digital temperature controller and voltage & current meters. The controller uses PID automatic control via  SSR and  provides more accurate temperature control within +/1 o C Built in "auto tune" function allows you to adjust furnace temperature with minimum over-shooting. Threedigital temperature controller d each has built in and  each controller has 30 segments programmable indenpendently Built in cooling fan inside case avoid temperature effect on the controller.

 Model

 MTC-Z3
 Input Voltage  208 - 240 V  single phase(50/60HZ )
 Max. Power  9KW total,  3000 W for each heating zone
 Thermo Couple accepted

  K, S, R, J, B, C (W/Re-5/26) and D (W/Re-3/25) type selectable by setting Sn value of controller

  • J range: -310 to 1832 oF (-190 to 1000 oC)
  • K range: -328 to 2502 oF (-200 to 1372  oC)
  • T range: -328 to 752  oF (-200 to 400  oC)
  • E range: -328 to 1832 oF (-200 to 1000 oC)
  • N range: -328 to 2372 oF (-200 to 1300  oC)
  • B range: 392 to 3272 oF oF (200 to 1800  oC)
  • R range: 32 to 3214  oF (0 to 1768  oC)
  • S range: 32 to 3214  oF (0 to 1768  oC)
  • Sn  ( K=0, S=1, B=6, D=8 C=9 )
  • thermal-couple is not included)
 Temperature control
  • The controller uses PID automatic control and Auto tune fuction.
  •  Built in over-temperature protection and thermal couple broken alarm.
  • RS-485 port and PC control software are available upon request at extra cost  which can control three zone temperature by remote PC
 Overall Dimension (mm)    462 L x 434W  x 200 H mm
 Weight (kg/lbs)      10 kg / 22 lbs
 Note
  • This controller is not suitable for the furnace heated by MoSi2 heating element.
  • This three zone temperature control unit zone is for DIY Lab furnace. Thermalel couple and power cable & plug are not included.  MTI will not be responsible for the cabling and wire connection, please ask certified electrician to do connection between your own furnace and the control unin.
  • The temperature control unit is compatible with following 3 zone tube furnaces:
    • MTI  OTF-1200X seris tube furnace
    • Thermo Fisher Scientific Lindberg/Blue M Three-Zone 1200 oC Tube Furnaces
    • Thermcraft 1200 oC three zone tube furnace
