SKU: htvo-90

Price: RFQ

Description

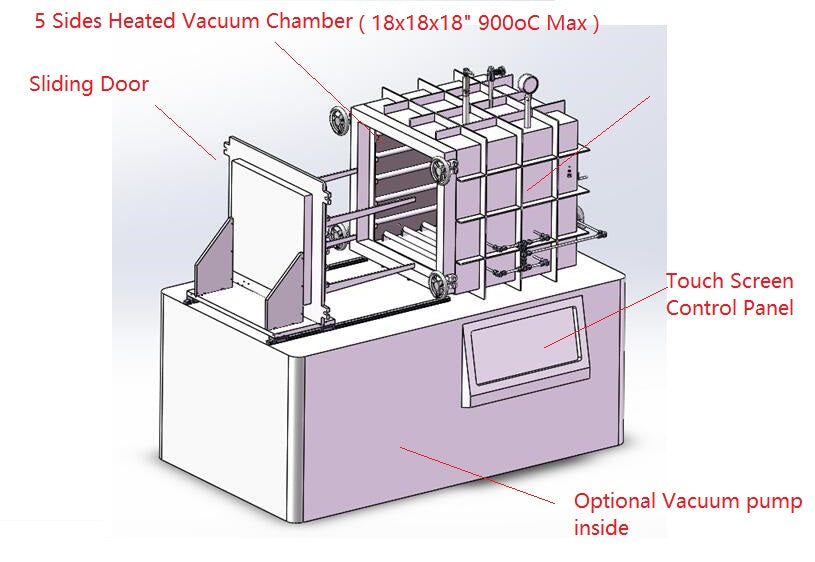

 HTVO-90 is a high-temperature and high vacuum oven with a 18x18x18" heating chamber and a sliding door. The oven is 5 sides heated for max. uniformity up to 900oC with 10-5 torr vacuum level.  It is designed for heat treatment of air-sensitive components. SPECIFICATIONS Power Single Phase 208~240 VAC 50/60 Hz.  three phases 15 W with 70A breaker required 380VAC is available upon request Structure The chamber is structured with SS304 with 4 layers of SS310 reflection plates on each side Chamber size  18x18x18", 91 Liter,  3.4 Cubic Feet with  4 sides heating Constant temperarure zone:     12 x12 x 12" with +/- 2ºC Sliding door with water cooling for easy sample loading. KF40 vacuum pot and gas inlet and outlet are built i. Tech screen control panel Temperature Control One programming temperature controller are equipped for discrete control on each heater 30 segments programmable with ± 1ºC accuracy Continuous working temperature:  50 - 900 ºC Temperature Uniformity: ±2 °C in 12x12x12" chamber center zone. The software and PC interface module are available at an extra cost Vacuum Pump Dual-stage vacuum pump with exhaust filter installed on the bottom. Maximum vacuum: < 10-2 Torr by mechanical pump and 10-5 torr by turbopump. Built-in mechanical vacuum gauge One 1000 mL/min gas flowmeter for monitoring gas gauge, fill, and flow. Gas purification system You may consider using a gas purification system instead of the vacuum pump to keep the chamber oxygen level below 10 ppm with an Ar gas cylinder Water Cooling One digitally controlled Recirculating Water Chiller EQ-KJ5000 is included. (click Pic. left to see details) for cooling front door sealing Refrigeration range: 5 ~35°C Flowing range: 16L/minute Coolant tank capacity: 6 Liter Use anti-corrosion coolant for the best performance. Certificate CE Certification NRTL or CSA Certification is available upon request at extra cost. Application Notes For accurate temperature measurement, you may do calibration by using the temperature calibrating kit . For more information on how to calibrate the oven temperature, please read the document How to calibrate the oven .

Power
  • Single Phase 208~240 VAC 50/60 Hz.  three phases
  • 15 W with 70A breaker required
  • 380VAC is available upon request
Structure

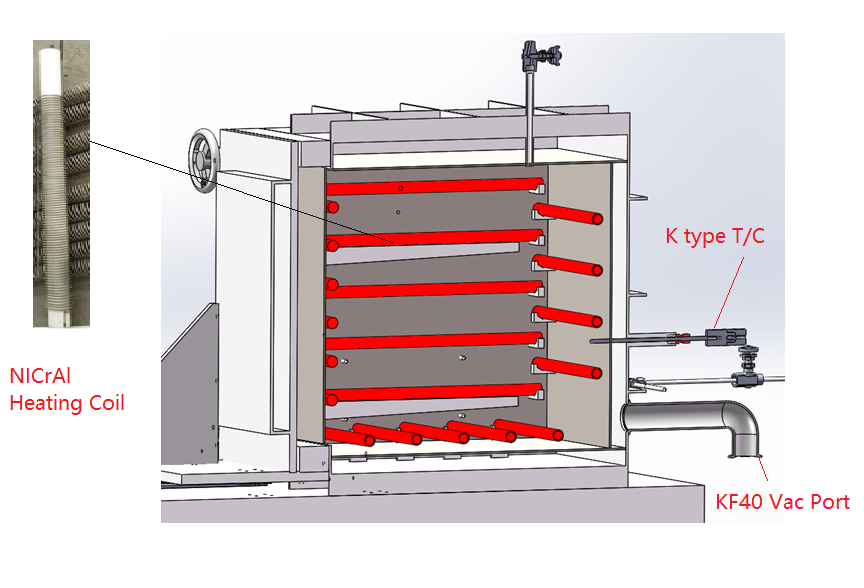

  • The chamber is structured with SS304 with 4 layers of SS310 reflection plates on each side
  • Chamber size  18x18x18", 91 Liter,  3.4 Cubic Feet with  4 sides heating
  • Constant temperarure zone:     12 x12 x 12" with +/- 2ºC

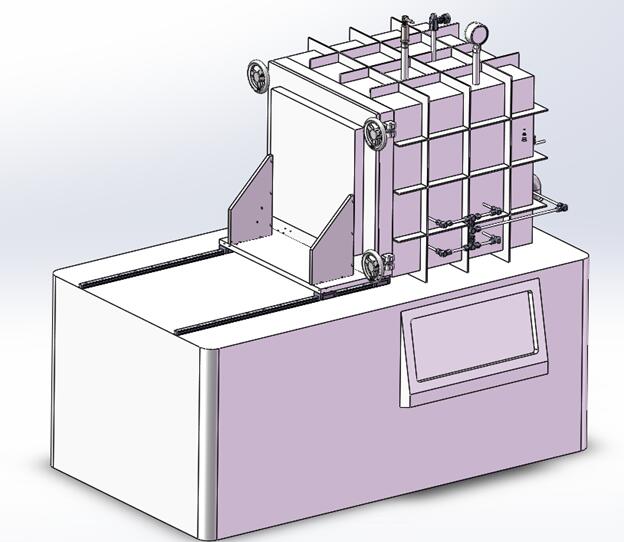

  • Sliding door with water cooling for easy sample loading.
  • KF40 vacuum pot and gas inlet and outlet are built i.
  • Tech screen control panel
Temperature Control
  • One programming temperature controller are equipped for discrete control on each heater
  • 30 segments programmable with ± 1ºC accuracy
  • Continuous working temperature:  50 - 900 ºC
  • Temperature Uniformity: ±2°C in 12x12x12" chamber center zone.
  • The software and PC interface module are available at an extra cost
Vacuum Pump
  • Dual-stage vacuum pump with exhaust filter installed on the bottom.
  • Maximum vacuum: < 10-2 Torr by mechanical pump and 10-5 torr by turbopump.
  • Built-in mechanical vacuum gauge
  • One 1000 mL/min gas flowmeter for monitoring gas gauge, fill, and flow.
Gas purification system

  • You may consider using a gas purification system instead of the vacuum pump to keep the chamber oxygen level below 10 ppm with an Ar gas cylinder
Water Cooling
Certificate
  • CE Certification
  • NRTL or CSA Certification is available upon request at extra cost.
Application Notes
  • For accurate temperature measurement, you may do calibration by using the temperature calibrating kit.
  • For more information on how to calibrate the oven temperature, please read the document How to calibrate the oven.
