Description

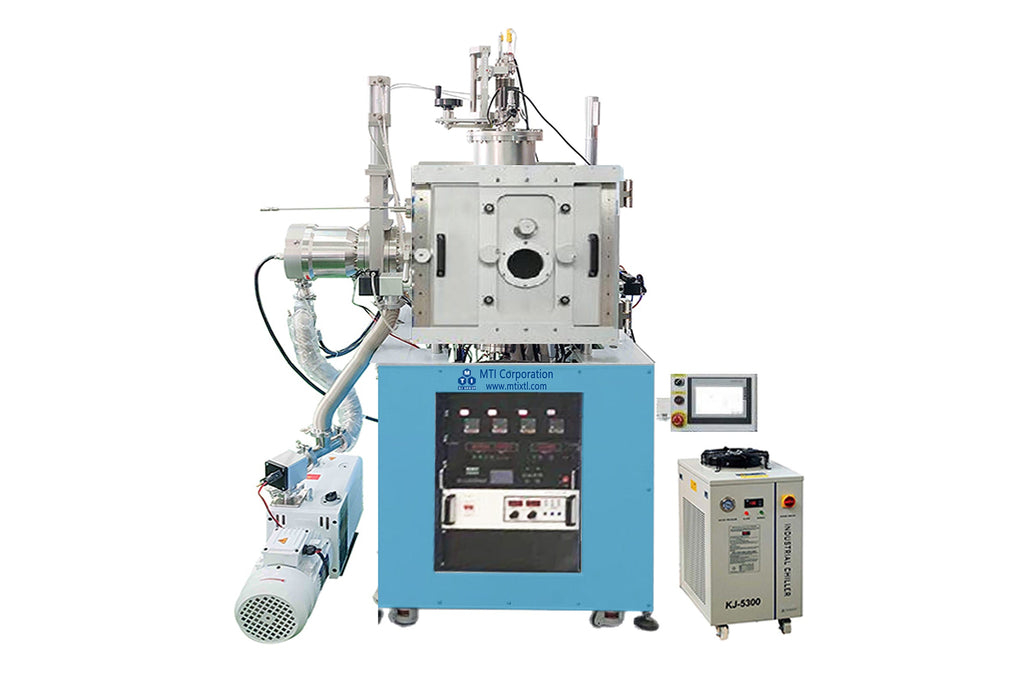

 GSL-1800X-ZF6 is a high-vacuum thermal evaporation coater designed for deposition of perovskite solar cells, such as Cu, Ag, PbI2, CsBr, and others. Two types of sources can be evaporated at the same time at a high vacuum up to 10-6 torr. It is an excellent and cost-effective coating machine for various material fabrications and modification. SPECIFICATIONS Input Power Input: AC220V±10%, three-phases, 50/60 Hz Total Power required: 8 KW (~32A) Vacuum Chamber Stainless steel (SS304) chamber: 400mm ID. x 400 mm D x 450 mm H, polished finish. 100 mm observation window Hinged-type door for easy sample loading Motorized shutters for each evaporation boat, One ISO-100K port for connection with a turbo pump and a gate valve. Vacuum Pump ( optional ) 260 L/s turbo molecular pump Vacuum level: 5.0x10 -6 Torr ( after 40 minutes of pumping ) Limit vacuum: 5.0x10 -7 Torr ( after baking at 100 -150°C) Leaking rate: 5.0x10 -7 Pa. Vacuum Port: DN 100 ISO-K A mechanical pump ( YTP-550-LD ) is required as a backing pump to initially achieve the vacuum level of <1e-2 torr Evaporation Source & Sample Holder Four tungsten heating boats with water-cooled shrouds Tungsten heating boat, 70L x 12W x 3H (mm). Sample holder can accept a maximum sample of 150*150mm. Rotation speed: 0-30 rpm Evaporation distance from source to sample holder is up to 60 mm The sample stage with a heating function up to 700 °C In-situ thickness monitor (optional) Quartz crystal microbalance is optional for thickness measurements The accuracy of thickness control is 1.0 Angstrom. Control Unit Vacuum, thickness, and power control are integrated into one control box The Control Unit is separated from the vacuum chamber for easy moving Dual-Chamber Glovebox ( Optional ) A dual chamber glovebox with a dimension of L2440mm * W780mm * H900mm Four gloves will be included 10 KF40 ports at the backside 0.1 ppm O2/H2O More details can be found here VGB-6-II-LD Facility Requirement Space: 250 SF with height > 6 feet Chilled Water: > 16L/minute flowing water required for electrode cooling or using a recirculating water chiller Certificate CE certified NRTL or CSA certification is available upon request at the extra cost

Input Power
  • Input: AC220V±10%, three-phases, 50/60 Hz
  • Total Power required: 8 KW (~32A)

Vacuum Chamber


  • Stainless steel (SS304) chamber:  400mm ID. x 400 mm D x 450 mm H, polished finish.
  • 100 mm observation window
  • Hinged-type door for easy sample loading
  • Motorized shutters for each evaporation boat,
  • One ISO-100K port for connection with a turbo pump and a gate valve.
Vacuum Pump (optional)
  • 260 L/s turbo molecular pump
    • Vacuum level: 5.0x10-6 Torr ( after 40 minutes of pumping )
    • Limit vacuum: 5.0x10-7  Torr ( after baking at 100 -150°C)
    • Leaking rate: 5.0x10-7 Pa.
    • Vacuum Port: DN 100 ISO-K
  • A mechanical pump (YTP-550-LD) is required as a backing pump to initially achieve the vacuum level of <1e-2 torr

Evaporation Source
&
Sample Holder

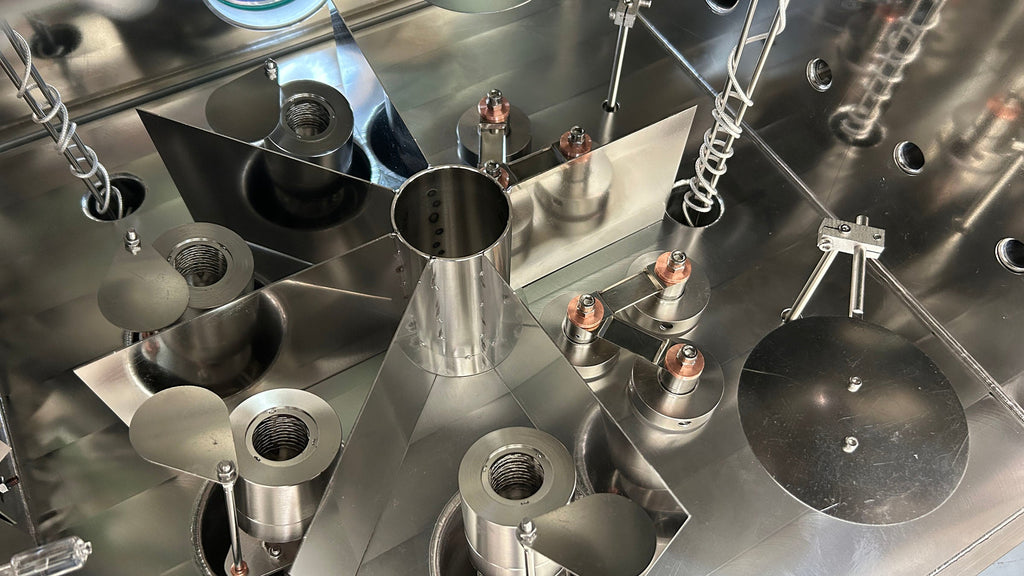

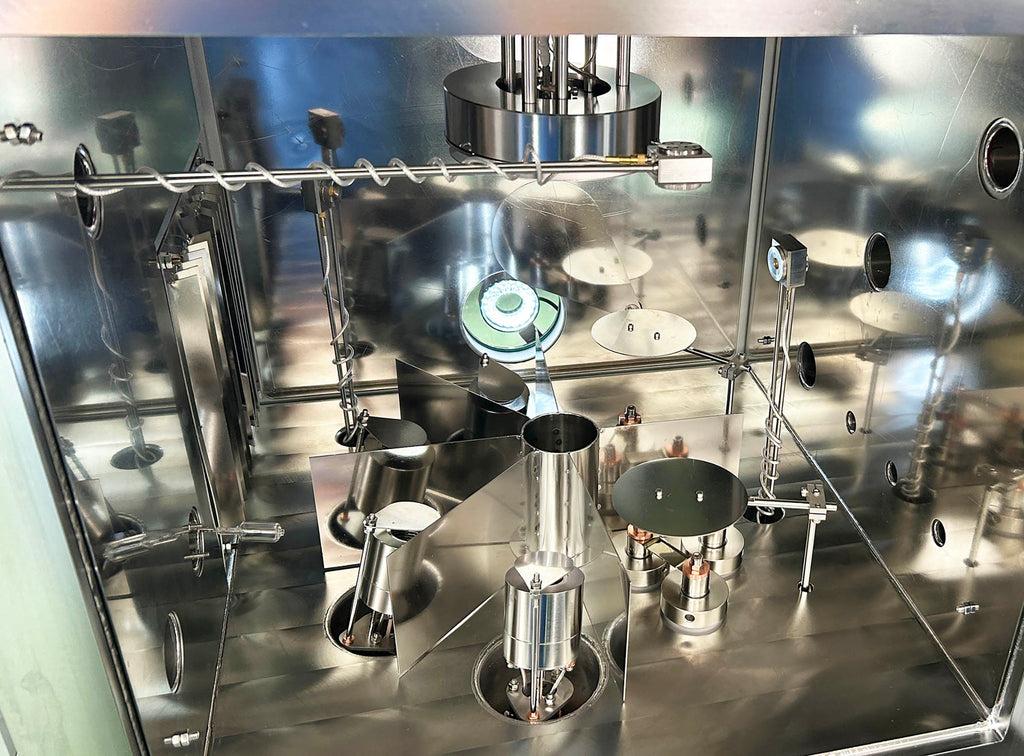

  • Four tungsten heating boats with water-cooled shrouds
  • Tungsten heating boat, 70L x 12W x 3H (mm).
  • Sample holder can accept a maximum sample of 150*150mm. Rotation speed: 0-30 rpm
  • Evaporation distance from source to sample holder is up to 60 mm
  • The sample stage with a heating function up to 700 °C

In-situ thickness monitor (optional)
  • Quartz crystal microbalance is optional for thickness measurements
  • The accuracy of thickness control is 1.0 Angstrom.
Control Unit
  • Vacuum, thickness, and power control are integrated into one control box
  • The Control Unit is separated from the vacuum chamber for easy moving

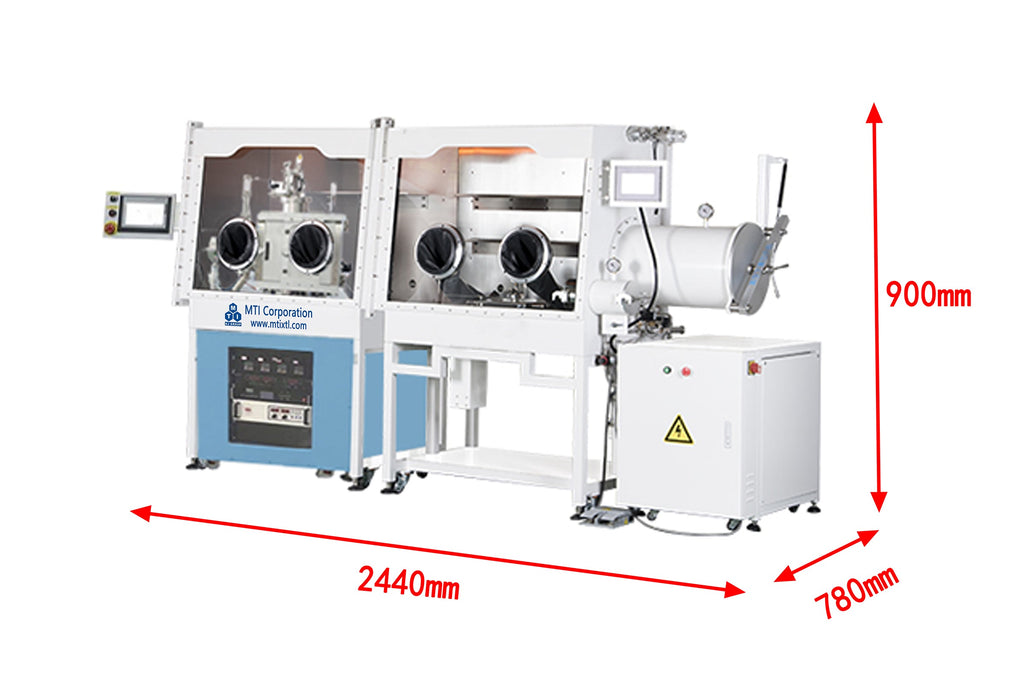

Dual-Chamber Glovebox (Optional)
  • A dual chamber glovebox with a dimension of L2440mm * W780mm * H900mm
  • Four gloves will be included
  • 10 KF40 ports at the backside
  • 0.1 ppm O2/H2O
  • More details can be found here VGB-6-II-LD

Facility Requirement
  • Space: 250 SF with height > 6 feet
  • Chilled Water: > 16L/minute flowing water required for electrode cooling or using a recirculating water chiller

Certificate
  • CE certified
  • NRTL or CSA certification is available upon request at the extra cost
