8.5" Quartz Tube Furnace with Water Cooling Flanges (1100C , 24" heating zone) - GSL1100X8
  • 8.5" Quartz Tube Furnace with Water Cooling Flanges (1100C , 24" heating zone) - GSL1100X8
  • 8.5" Quartz Tube Furnace with Water Cooling Flanges (1100C , 24" heating zone) - GSL1100X8
8.5" Quartz Tube Furnace with Water Cooling Flanges (1100C , 24" heating zone) - GSL1100X8

8.5" Quartz Tube Furnace with Water Cooling Flanges (1100C , 24" heating zone) - GSL1100X8

SKU: gsl1100x8

Price: RFQ

Description

 GSL-1100X-8.5 is a single heating zone with an 8.5" quartz tube. The heating temperature is up to 1100°C. The hinged type vacuum flanges with water cooling ports built-in. It is widely used for materials or chemical lab to sinter and anneal materials or semiconductor wafers under vacuum or other gases condition. The furnace is controlled by an intelligent temperature controller with an accuracy of +/-1°C and 30 programmable segments. SPECIFICATIONS: Fused quartz tube size 216 OD x 208 IDx 1020L mm (8.5"OD x 8.2" x 40"L) Furnace structure Double-layer steel casing. Four cooling fans are built inside to keep the temperature of the outside case < 60ºC High purity alumina fibrous insulation for max energy saving. Two foam ceramic thermal blocks are included to block heat radiation Hinged type and water cold flange for loading sample easy. Input voltage 208 - 230VAC Single phase power 8kW (50Amps Air Breaker is required) Heating element NiCrAl Resistance Wire Working Temperature Max. heating temperature: 1100°C Continuous working temperature: 400 -1050°C Max. heating/cooling rate: 20°C/min Recommended heating/cooling rate: 10°C/min Max. Typical temperature profile at 800°C (click picture below to see detail) Heating zone Total heating zone length: 600mm (24'') constant temperature zone: 200mm within +/-1°C, and 300mm within +/-5°C Temperature Controller One Precision digital controller with PID function and 30 segments programmable A secondary temperature monitor has the function of protection from over-temperature and broken thermocouple K type thermocouple Temperature accuracy: +/-1°C Advanced Temperature Control (Optional) MTS02-Y Temperature control software kit (for YD518P series controllers) + 15" laptop package is available at the options bar. Click for detailed information about the MTS02-Y software kit. You may upgrade the temperature controller to the Eurotherm 300 Temperature Controller with +/-0.1ºC accuracy . This package includes a communication cable (RS485 - USB), and a software CD. Click the pic below to view the full spec of Eurotherm Vacuum & Fitting Ports One pair of hinged type stainless steel vacuum seal flange with water cooling ( see Pic.1 ) One Digital Vacuum Gauge - CVM-221 , two stainless steel needle valves & 1/4" hose fittings, KF40 vacuum port, and 1/4'' feedthrough (see Pic. 2 and Pic. 3). Vacuum pressure limit: depending on the vacuum pump. (Usually 10-2 torr by the mechanical pump). Pic.1 Pic. 2 Pic. 3 Water Chiller ( Optional ) Cooling water is required. Please make sure the flow rate of cooling water is ≥ 10L/min, water temp. < 25ºC; pressure > 25 PSI. We suggest using the KJ5000 Series recirculating water chiller as a cooling system (please order separately here ) to save water. Compliance CE Certified NRTL or CSA certification is available upon request. Application Notes Click here to learn the installation of a gas regulator Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator. Vacuum pressures may only be safely used up to 1000°C The flow rate for gasses should be limited to<200 SCCM for reducing thermal shocks to the tube. Please use the manual torque wrench to tighten all flange screws to avoid overpressure incidents. The recommended torque is 45 inch-lbs at max. CONSUMABLE PARTS LIST No. Description Quantity Picture GSL-1100X-8.5-S-UL 01 Quartz tube 1 pc 216 OD x 208 ID x 1020L mm 02 Quartz Thermal Block 1 pair QTB-8 03 O ring for inner flange 2 pcs SOR-213 04 O ring for flange cap 4 pcs SOR-230 05 KF-40 quick clamp 2 pcs KF-Clamp-D40 06 KF-40 right-angle vacuum valve 1 pcs KF-Valve-D40 07 KF-40 Blank flange 2 pcs KF-BF 08 Manual torque wrench to prevent overtightening 1 set OPTIONAL ACCESSORY Part No. Description Link VAC-YTP550suite KF-D40 series Vacuum Suite(vacuum pump, vacuum ball valve, vacuum bellows, quick clamps, KF adapter, KF40-25 Reducer ) The items in the suite can be purchased individually. MTS02 Computerized temperature Control System High vacuum station (Mechanical pump + turbo molecular pump) Gas mix station (Float flow meter / Mass flow meter)(2, 3, 4channels selectable) Quartz Boats /curcible /container /sample holder

Fused quartz tube size
 216 OD x 208 IDx 1020L mm (8.5"OD x 8.2" x 40"L)

Furnace structure
  • Double-layer steel casing.
  • Four cooling fans are built inside to keep the temperature of the outside case < 60ºC
  • High purity alumina fibrous insulation for max energy saving.
  • Two foam ceramic thermal blocks are included to block heat radiation
  • Hinged type and water cold flange for loading sample easy.


Input voltage 208 - 230VAC Single phase
power 8kW (50Amps Air Breaker is required)
Heating element NiCrAl Resistance Wire

Working Temperature
  • Max. heating temperature: 1100°C
  • Continuous working temperature: 400 -1050°C
  • Max. heating/cooling rate: 20°C/min
  • Recommended heating/cooling rate: 10°C/min Max.
  • Typical temperature profile at 800°C (click picture below to see detail)
Heating zone
  • Total heating zone length: 600mm (24'')
  • constant temperature zone: 200mm within +/-1°C, and 300mm within +/-5°C
Temperature Controller


  • One Precision digital controller with PID function and 30 segments programmable
  • A secondary temperature monitor has the function of protection from over-temperature and broken thermocouple
  • K type thermocouple
  • Temperature accuracy: +/-1°C
  • Advanced Temperature Control (Optional)
Vacuum & Fitting Ports

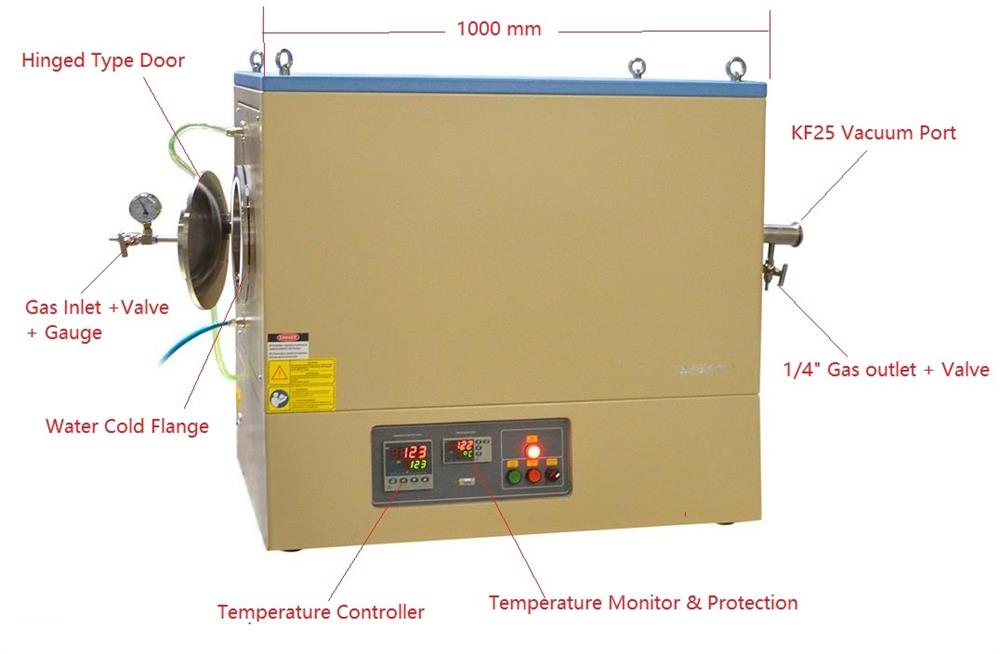

  • One pair of hinged type stainless steel vacuum seal flange with water cooling ( see Pic.1 )
  • One Digital Vacuum Gauge - CVM-221, two stainless steel needle valves & 1/4" hose fittings, KF40 vacuum port, and 1/4'' feedthrough (see Pic. 2 and Pic. 3). Vacuum pressure limit: depending on the vacuum pump. (Usually 10-2 torr by the mechanical pump).
Pic.1 Pic. 2 Pic. 3
Water Chiller (Optional)
  • Cooling water is required.
  • Please make sure the flow rate of cooling water is ≥ 10L/min, water temp. < 25ºC; pressure > 25 PSI.
  • We suggest using the KJ5000 Series recirculating water chiller as a cooling system (please order separately here) to save water.
Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request.

Application Notes

Click here to learn the installation of a gas regulator
  • Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
  • Vacuum pressures may only be safely used up to 1000°C
  • The flow rate for gasses should be limited to<200 SCCM for reducing thermal shocks to the tube.
  • Please use the manual torque wrench to tighten all flange screws to avoid overpressure incidents. The recommended torque is 45 inch-lbs at max.
,
No. Description Quantity Picture GSL-1100X-8.5-S-UL
01 Quartz tube 1 pc

216 OD x 208 ID x 1020L mm
02 Quartz Thermal Block 1 pair QTB-8
03 O ring for inner flange 2 pcs SOR-213
04 O ring for flange cap 4 pcs SOR-230
05 KF-40 quick clamp 2 pcs

KF-Clamp-D40
06 KF-40 right-angle vacuum valve 1 pcs

KF-Valve-D40
07 KF-40 Blank flange 2 pcs KF-BF
08 Manual torque wrench to prevent overtightening 1 set

,
Part No. Description Link

VAC-YTP550suite

 KF-D40 series Vacuum Suite(vacuum pump, vacuum ball valve, vacuum bellows, quick clamps, KF adapter, KF40-25 Reducer ) The items in the suite can be purchased individually.

MTS02

 Computerized temperature Control System
  High vacuum station (Mechanical pump + turbo molecular pump)
  Gas mix station (Float flow meter / Mass flow meter)(2, 3, 4channels selectable)
  Quartz Boats /curcible /container /sample holder
