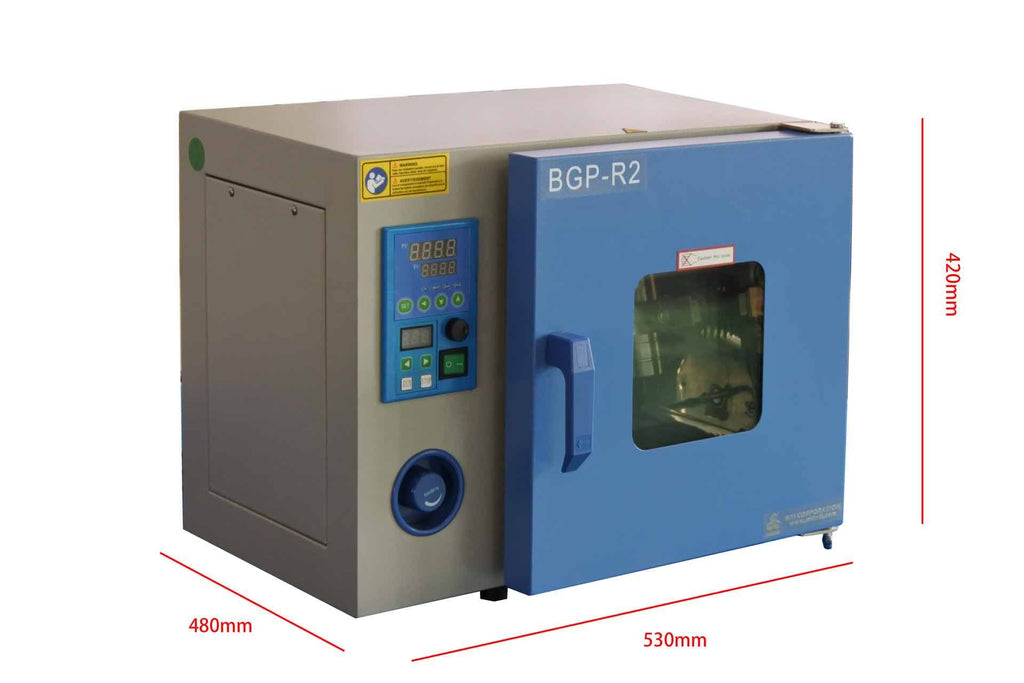

2 Vessel Rotary Reactor (50 ml) Up to 230°C and 3 - 10 MPa - BGP-R2

BGPR2 is a multi-vessel rotary mixer in the oven up to 230°C and 3 MPa pressure for high-temperature mixing, ball milling, and homogeneous hydrothermal processing with a pair of 50ml vessels.

Specifications:

Power	AC 208- 240V, single-phase, 50/60 Hz Total Power: 850W 110V operation is available via 1500W transformer at extra cost ( click underlined to order )
Heating Oven	Forced air heating with stainless steel lining Standard chamber size: 240 x 200 x 240 mm Max. Working Temperature: 250 °C Digital PID temperature control with +/- 1°C accuracy Anti-explosive observation window

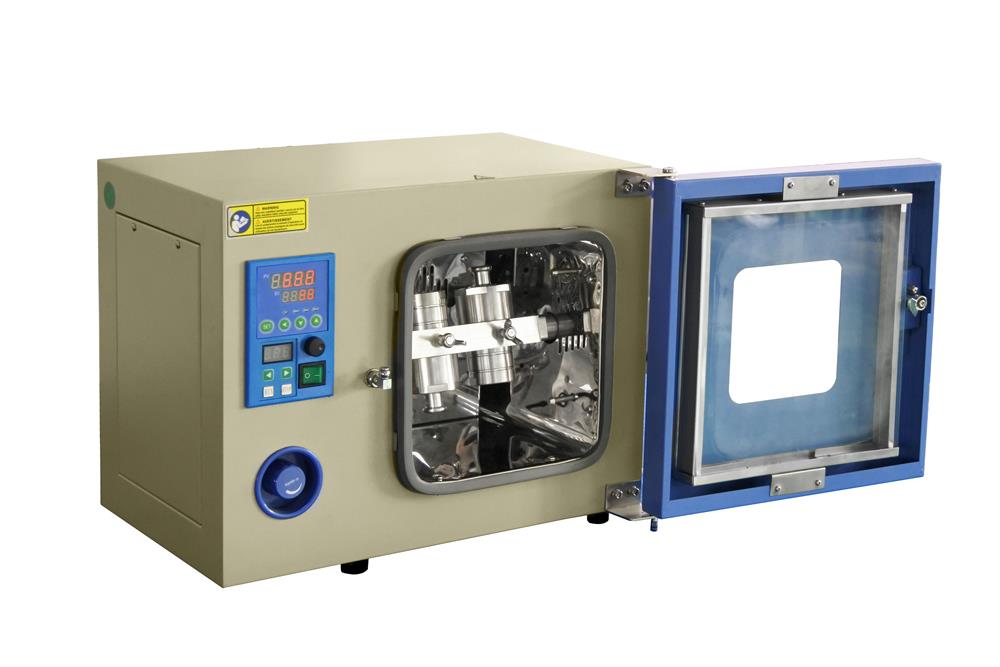

Rotation Mechanism	High torque 24VDC motor is located inside the case. Speed range: 0 - 400 RPM adjustable for standard two 50ml vessels. The oven comes with 2 standard vessel clamps
Vessel	Two standard vessels are included, which are made of 316L stainless steel with a PTFE liner Vessel dimension(inner): 40mm ID x 86mm H Capacity 50 ml PTFE liner dimension: OD 40mm x ID 30 mm x H 78mm Max. working temperature: 230°C <1h, 200°C for 8-12h Max. Pressure: 3 MPa
Control panel	Digital control panel for temperature, speed, and time setting
Optional	You may choose the various grinding ball for high-temperature ball milling ( click the picture below to order )
Certification	CE certificated NRTL or CSA certification is available upon request at the extra cost
Safety Warning	The high-pressure equipment must be put in an explosive-proof box or room to avoid an accident Operators must wear safety goggles all the time.
