High Pressure Reactor with PTFE liner up to 220°C & 3 MPa for Rotary Oven with 50 or 100 ml option - RC-SS-XX
  • High Pressure Reactor with PTFE liner up to 220°C & 3 MPa for Rotary Oven with 50 or 100 ml option - RC-SS-XX
  • High Pressure Reactor with PTFE liner up to 220°C & 3 MPa for Rotary Oven with 50 or 100 ml option - RC-SS-XX
  • High Pressure Reactor with PTFE liner up to 220°C & 3 MPa for Rotary Oven with 50 or 100 ml option - RC-SS-XX
  • High Pressure Reactor with PTFE liner up to 220°C & 3 MPa for Rotary Oven with 50 or 100 ml option - RC-SS-XX
High Pressure Reactor with PTFE liner up to 220°C & 3 MPa for Rotary Oven with 50 or 100 ml option - RC-SS-XX

High Pressure Reactor with PTFE liner up to 220°C & 3 MPa for Rotary Oven with 50 or 100 ml option - RC-SS-XX

SKU: rc-ss-xx

Price: RFQ

Description

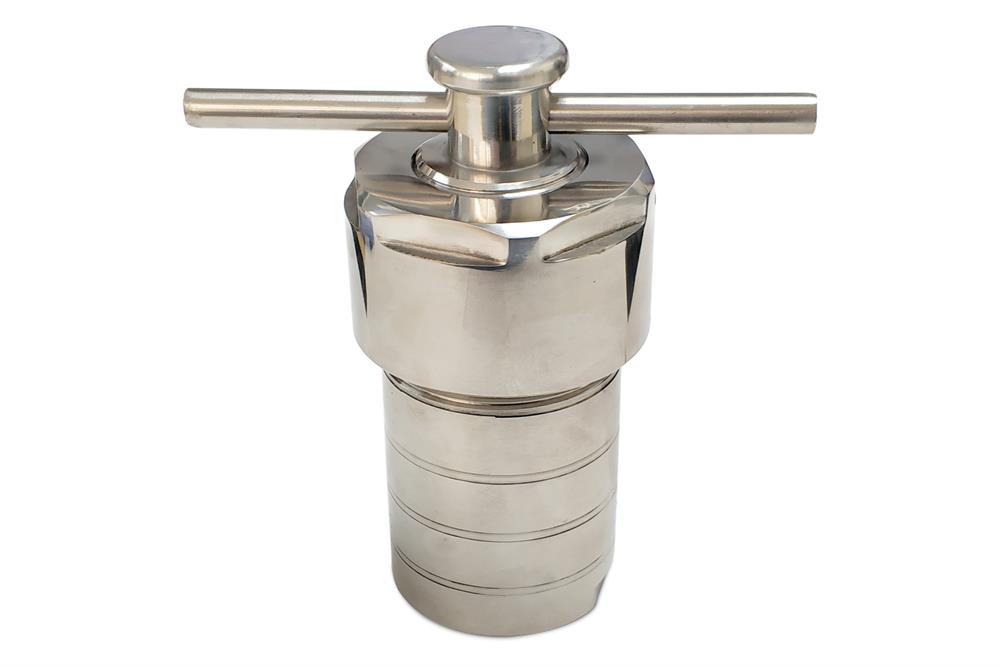

 RC-SS-50 and RS-SS-100 are stainless steel 304 high-pressure reactor with a PTFE liner for hydrothermal reactions. . t is designed to pair with rotary reactors, BGP-R2 and BGP-R8 . It can reach a pressure up to 3 MPa and a temperature of up to 200°C. The reactor size is 50/100 ml. Please select the vessel capacity in the product options.

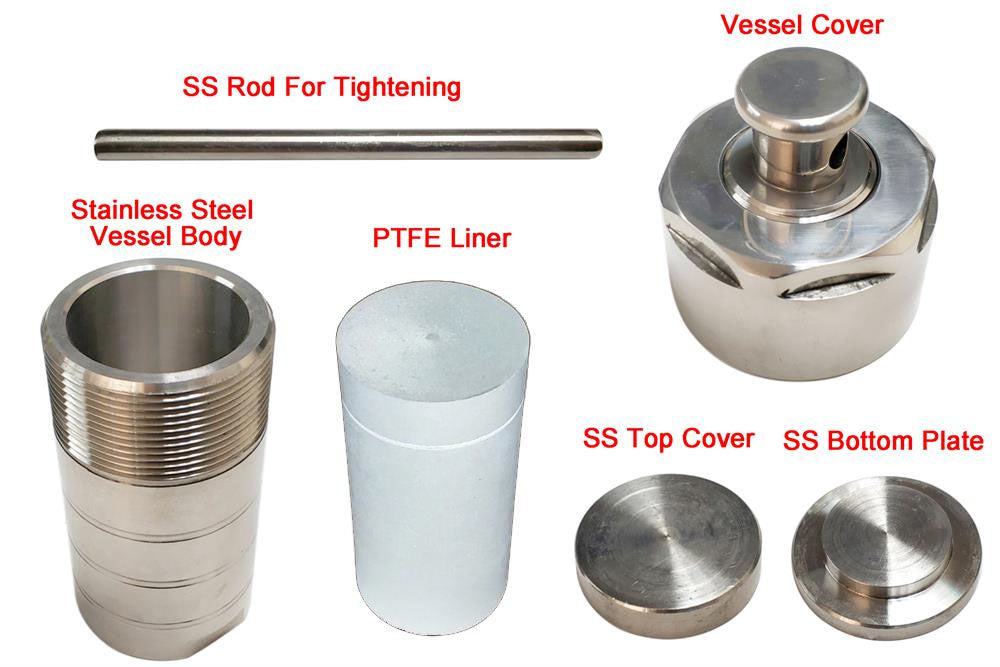

Material
  • Stainless Steel 304 with a PTFE liner
  • SS 316 reactor is available upon request at extra cost
Capacity & Dimension
  • Two vessel capacities are available.

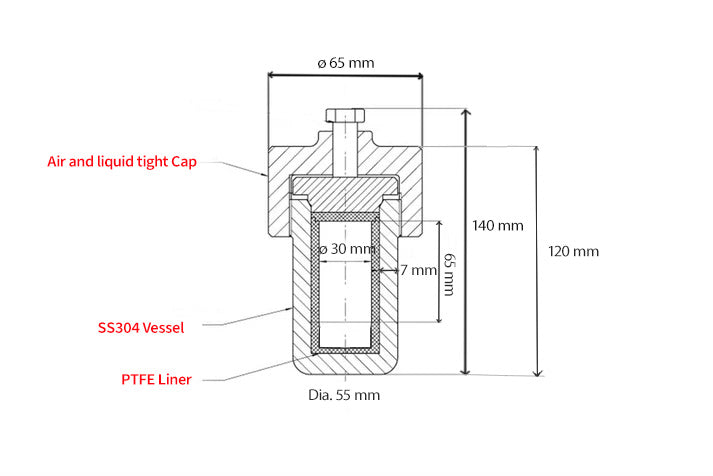

    • 50 ml (<3 MPa), up to 8 vessels max. in the rotary oven, BGP-R8.

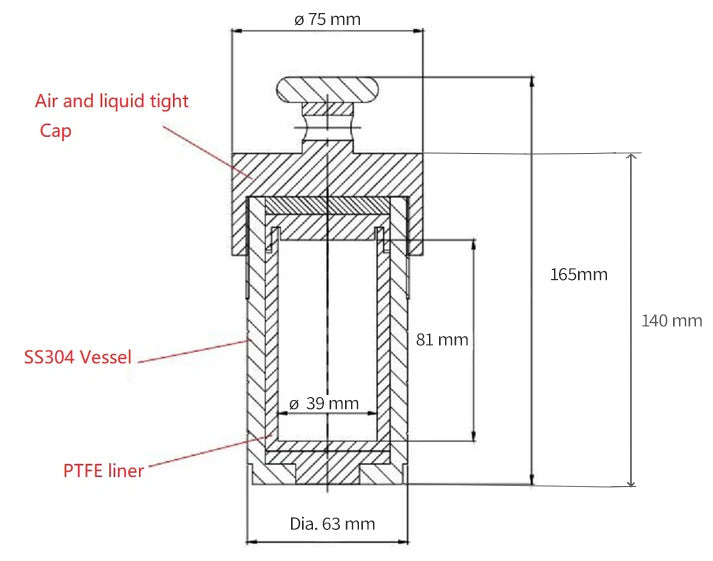

    • 100 ml vessel (<3 MPa) up to 6 vessels in the rotary oven, BGP-R8.
Max. Working Temperature
  •  RT - 200 °C Max
Working Pressure
  • <3 MPa
