Specifications

 MSK-2150-P is a 150 mm width (6") precision electric rolling press with a 94 mm diameter roller. The rollers coated with PTFE is suitable for sticky metal press to form ultrathin metal sheet. This calendaring machine can be used in AR glove box for processing air/humidity sensitive metals (eg: Li, Na) SPECIFICATIONS: Structure Rolling Speed Adjustable (0 - 25 mm/ second) Heavy-duty steel frame, gears, and handle Roller size: 150mm width x 94mm Dia (dual rollers), made of hardened steel (RC > 60) with Cr electroplated coating Dual micrometer for accurate thickness adjustment in the range 0 - 3 mm. (Pic. 1) Built-in toolbox for easy operation & safety barricades (front and behind rollers) (Pic. 2) The lighting on the back of the roller for sample observation. (Pic. 3) Pic.1 Pic.2 Pic.3 Rolling Gap 0 mm ~ 1.3 mm Rolling Speed Max. 50 mm/ second (Rolling Speed Adjustable) Forward, Stop and backward switchable Forward, Stop and backward switchable Digital controlled with c onstant output power Torque Capability 850N Surface Hardness of Rollers HRC 60-62 Never roll materials with hardness > 50HRC Note: The benchtop rolling press is not suitable for calendering thick metals. For applications with such needs, please consult with MTI engineers. Digital Micrometer Range: 0 - 10mm Resolution: 0.01mm (or 0.001in) Unit interchangable (mm / in) Zeroing Power supply: CR2032 3V Li-ion battery Operating temperature: 0 ~ 40°C Working Voltage AC 110 or 220V single phase, 50/60H INPUT: 24VDC UL/CSA listed 100-240VAC IN - 24VDC OUT power adapter is included Roll to Roll System (Optional) MSK-2150-RD R2R system can be integrated with the calendaring machine at extra cost to enable the automatic film unwinding -> winding after calendaring. Please click underline to view product details. Compliance CE Certified NRTL or CSA certification is available upon request at an extra cost Article Please refer to this instruction on how to calculate rolling pressure from roller gap (reference only) Analysis of geometric and electrochemical characteristics of lithium cobalt oxide electrode with different packing densities Warnings Never roll materials with hardness > 50HRC Multi-step thickness calendaring needed: While calendaring the sample sheet, make each calendering decrement of 0.02mm comparing with sheet original thickness. Never calendering decrement over 0.02mm comparing with original sheet thickness each calendering. Must clean roller surface for each rolling and Use acetone to clean and lubricate when not in use to avoid corrosion


Structure
  • Rolling Speed Adjustable (0 - 25 mm/ second)
  • Heavy-duty steel frame, gears, and handle
  • Roller size: 150mm width x 94mm Dia (dual rollers), made of hardened steel (RC > 60) with Cr electroplated coating
  • Dual micrometer for accurate thickness adjustment in the range 0 - 3 mm. (Pic. 1)
  • Built-in toolbox for easy operation & safety barricades (front and behind rollers) (Pic. 2)

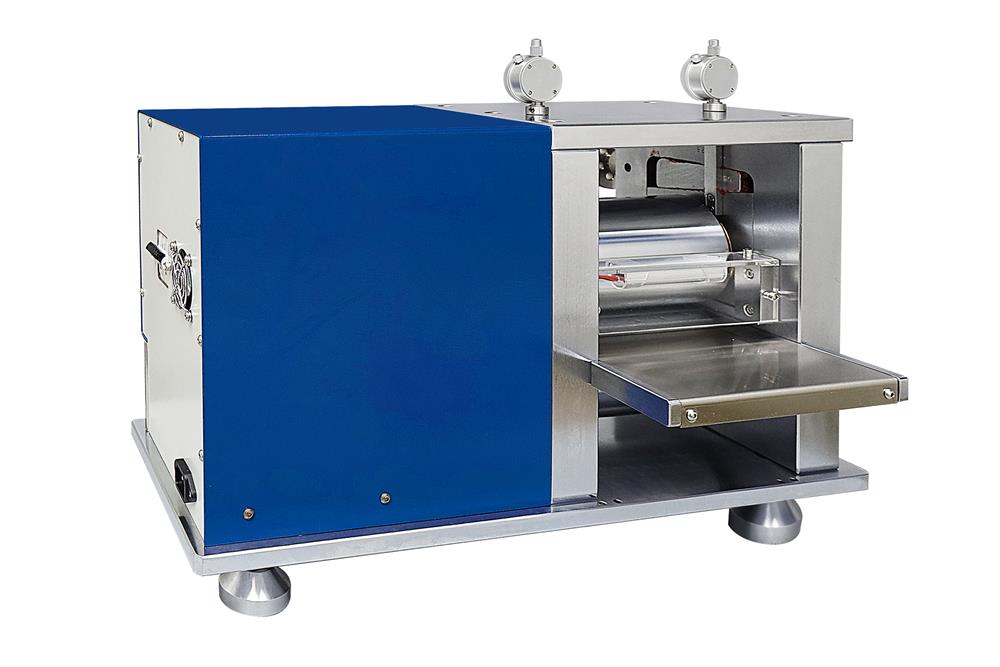

  • The lighting on the back of the roller for sample observation. (Pic. 3)

Pic.1  Pic.2  Pic.3
Rolling Gap
  • 0 mm ~ 1.3 mm
Rolling Speed
  • Max. 50 mm/ second (Rolling Speed Adjustable)
    Forward, Stop and backward switchable
  • Forward, Stop and backward switchable
  • Digital controlled with constant output power
Torque Capability
  • 850N
Surface Hardness of Rollers
  • HRC 60-62
  • Never roll materials with hardness > 50HRC
Note: The benchtop rolling press is not suitable for calendering thick metals. For applications with such needs, please consult with MTI engineers.
Digital Micrometer
  • Range: 0 - 10mm
  • Resolution: 0.01mm (or 0.001in)
  • Unit interchangable (mm / in)
  • Zeroing
  • Power supply: CR2032 3V Li-ion battery
  • Operating temperature: 0 ~ 40°C
Working Voltage
  • AC 110 or 220V single phase, 50/60H
  • INPUT: 24VDC
  • UL/CSA listed 100-240VAC IN - 24VDC OUT power adapter is included
Roll to Roll System
 (Optional)

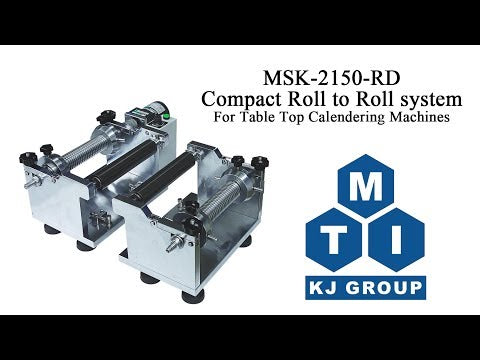

MSK-2150-RD R2R system can be integrated with the calendaring machine at extra cost to enable the automatic film unwinding -> winding after calendaring. Please click underline to view product details.


Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at an extra cost
Article
Warnings
  • Never roll materials with hardness > 50HRC
  • Multi-step thickness calendaring needed: While calendaring the sample sheet, make each calendering decrement of 0.02mm comparing with sheet original thickness.
  • Never calendering decrement over 0.02mm comparing with original sheet thickness each calendering.
  • Must clean roller surface for each rolling and Use acetone to clean and lubricate when not in use to avoid corrosion
