Roll to Roll Device for Compact Rolling Machines upto 150 mm Width (Ar Glove Box Compatible) - MSK-2150-RD
  • Roll to Roll Device for Compact Rolling Machines upto 150 mm Width (Ar Glove Box Compatible) - MSK-2150-RD
  • Roll to Roll Device for Compact Rolling Machines upto 150 mm Width (Ar Glove Box Compatible) - MSK-2150-RD
  • Roll to Roll Device for Compact Rolling Machines upto 150 mm Width (Ar Glove Box Compatible) - MSK-2150-RD
Roll to Roll Device for Compact Rolling Machines upto 150 mm Width (Ar Glove Box Compatible) - MSK-2150-RD

Roll to Roll Device for Compact Rolling Machines upto 150 mm Width (Ar Glove Box Compatible) - MSK-2150-RD

SKU: msk-2150-rd

Price: RFQ

Specifications

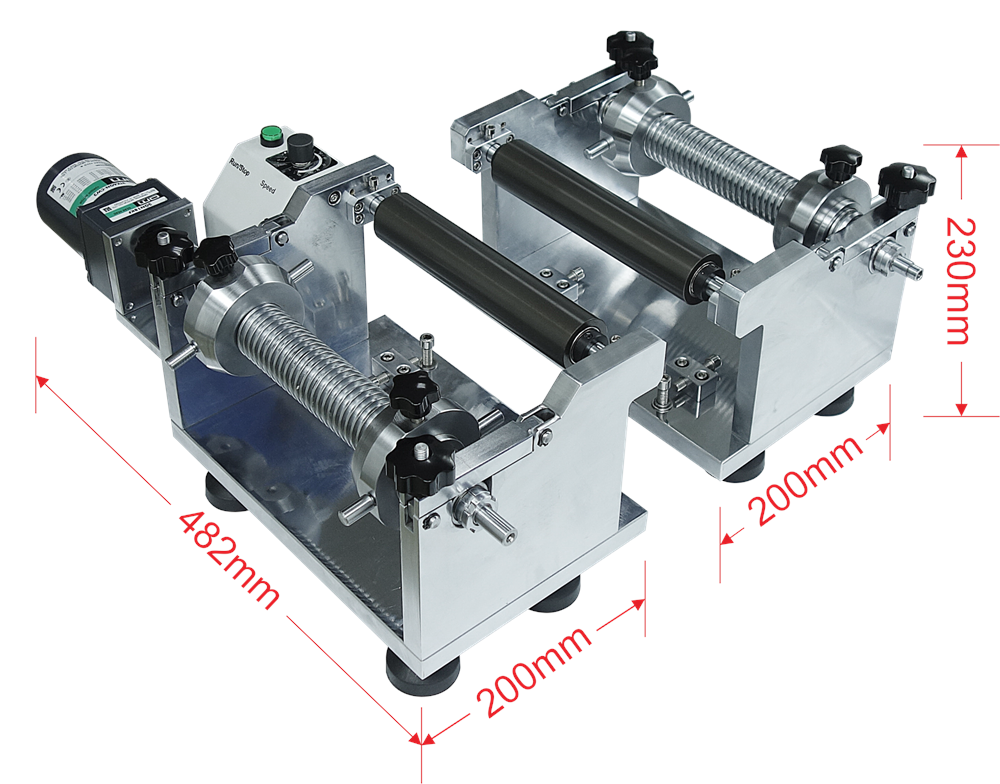

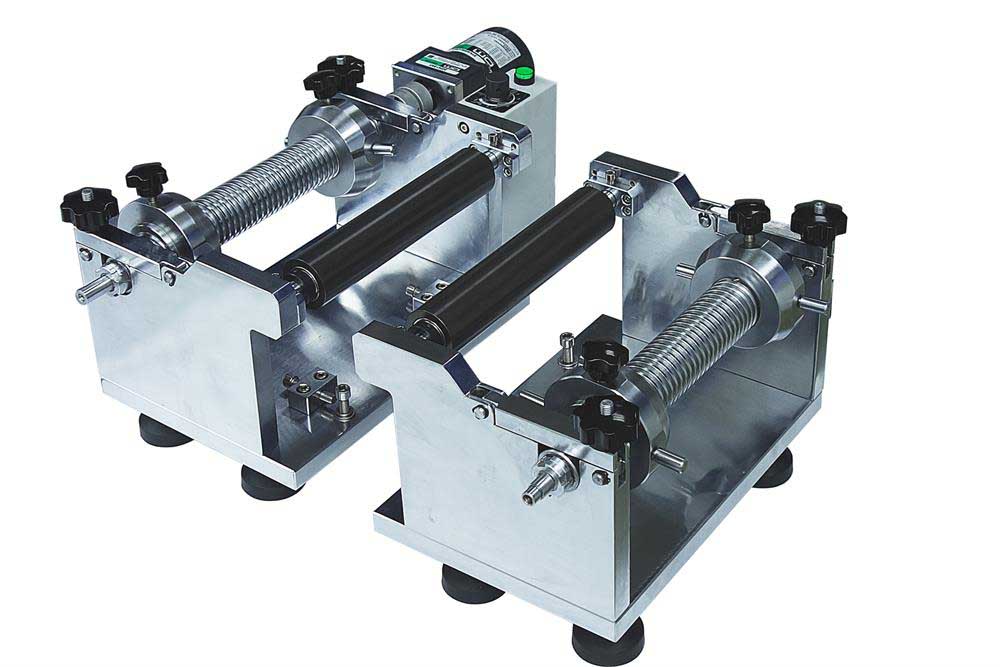

 MSK-E2150-RD is an automatic Roll to Roll system designed for continuous handling of flexible substrate materials less than 150mm wide ( 200 mm width can be customized ). It enables the automatic R2R film calendaring on MTI tabletop calendaring machines ( MSK-HRP series). Tension adjustable torque motor for active reeling to maintain a constant tension force on the substrate. SPECIFICATIONS: Working Voltage 208 - 240 VAC, 50/60Hz, Single Phase 220V AC Power plug is not included ( Please click here to order the plug ) You may use 200W transformer to operate at 110V Max. Power Consumption 100W Front Panel & Tension Control Infinite switch for various tension control 0~20N Tension adjustable torque motor for active reeling Friction resistant passive unreeling Motor Type The use of brushless motor ensures no sparking in the Ar gas environment Reeling Width < 150mm width for flexible substrate material ( maximum roller width of 200 mm can be customized ) Traverse Speed The film traverse speed is dependent on its calendering speed, normally <1.5 meters/min Roller's O.D 3 inches Reeling/Unreeling Roll Diameter Max. 200mm Sample Roll Traveling Route Compliance CE certified UL ready component to ensure pass UL and CSA certification at extra cost Application Notes It is not allowed to use any MTI product in any hazardous location, especially prohibited from using in Class I environments (flammable gasses & vapor). This roll to roll device is compatible with MTI MSK-HRP series tabletop calendering machines Optional part < 150mm width Compatible Roll (Aluminum Foil or Copper Foil) can be found at our website.


Working Voltage

Max. Power Consumption

100W

Front Panel & Tension Control
  • Infinite switch for various tension control 0~20N
  • Tension adjustable torque motor for active reeling
  • Friction resistant passive unreeling



Motor Type

 The use of brushless motor ensures no sparking in the Ar gas environment

Reeling Width

 < 150mm width for flexible substrate material (maximum roller width of 200 mm can be customized)

Traverse Speed

 The film traverse speed is dependent on its calendering speed, normally <1.5 meters/min

Roller's O.D

 3 inches

Reeling/Unreeling Roll Diameter

 Max. 200mm

Sample Roll Traveling Route

Compliance
  • CE certified
  • UL ready component to ensure pass UL and CSA certification at extra cost

Application Notes

Optional part

 < 150mm width Compatible Roll (Aluminum Foil or Copper Foil) can be found at our website.
