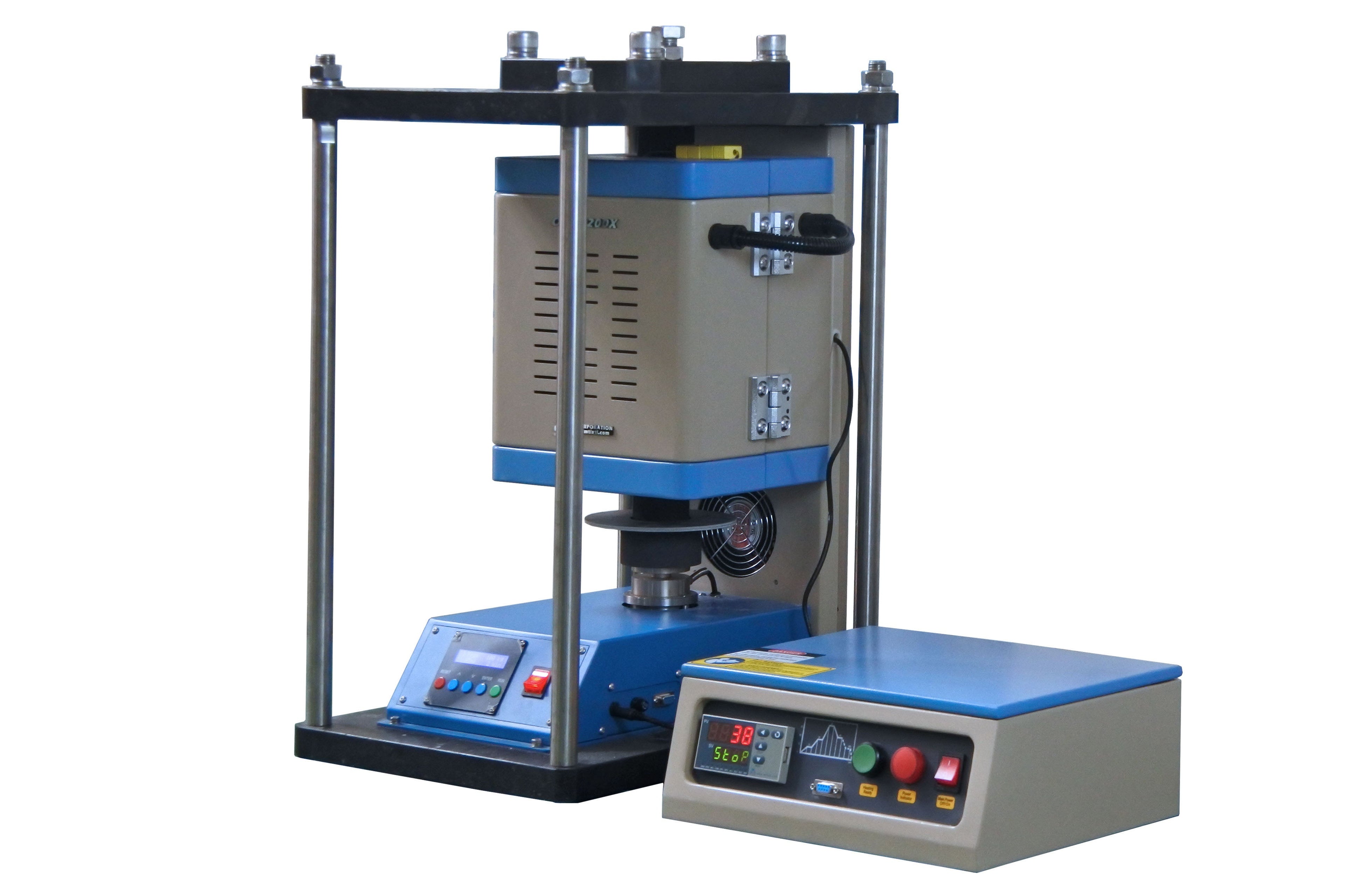

5T Electric Hot Pellet Press up to 1000 ºC - YLJHP7

Power

• 120 VAC, 50/60 Hz, 1 phase, 20 A
• Furnace 1.5 kW
• Press 90 W
• Power cord and plug are included.
• 208-240 VAC is also available upon request

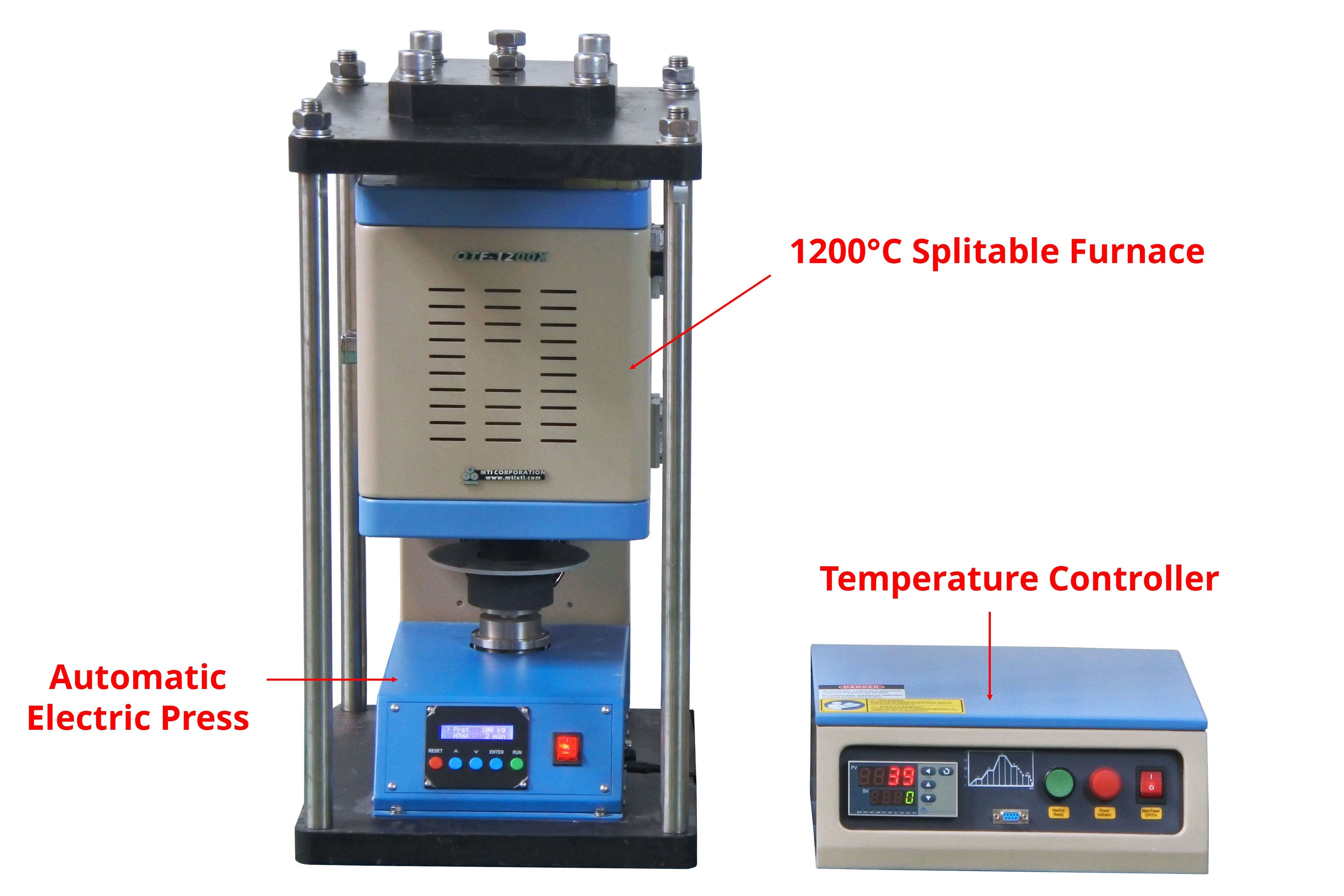

Electric Press

• 24V DC motorized pellet press
• Force 100 - 5000 kgf
• Accuracy ± 3 kgf
• Programmable force and dwelling time
• Stroke length 20 mm

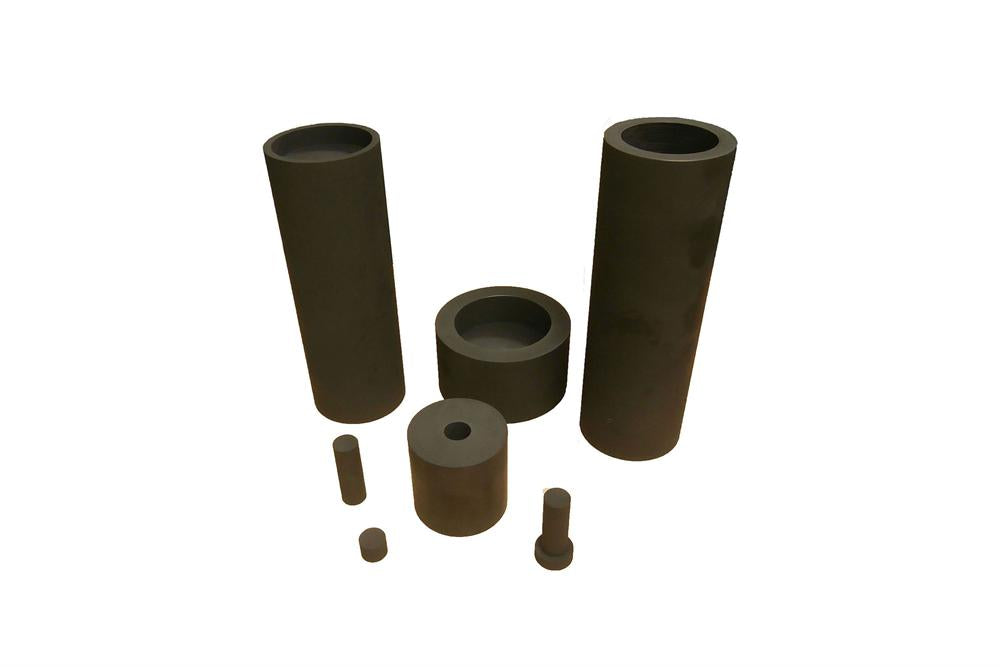

Graphite Pressing Die Set (Standard)

• 1/2" split graphite die set
• Working pressure < 100 MPa (1290 kgf or 12.66 kN)

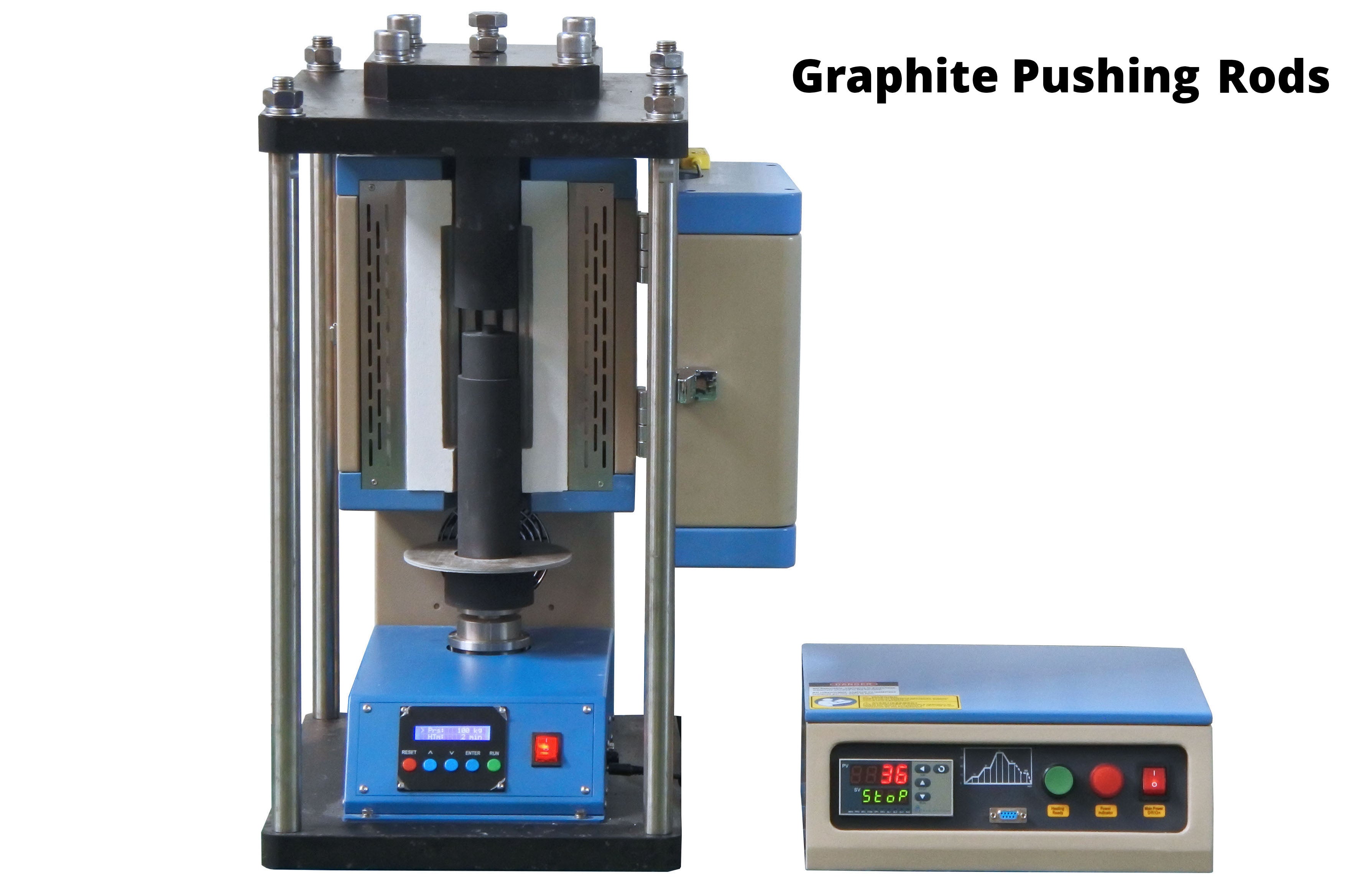

• Two graphite supporting rods
• Working temperature
  • 400°C under air
  • 1000°C under an inert glovebox


Silicon Nitride Pressing Die (Optional)

• 1/2" silicon nitride die set

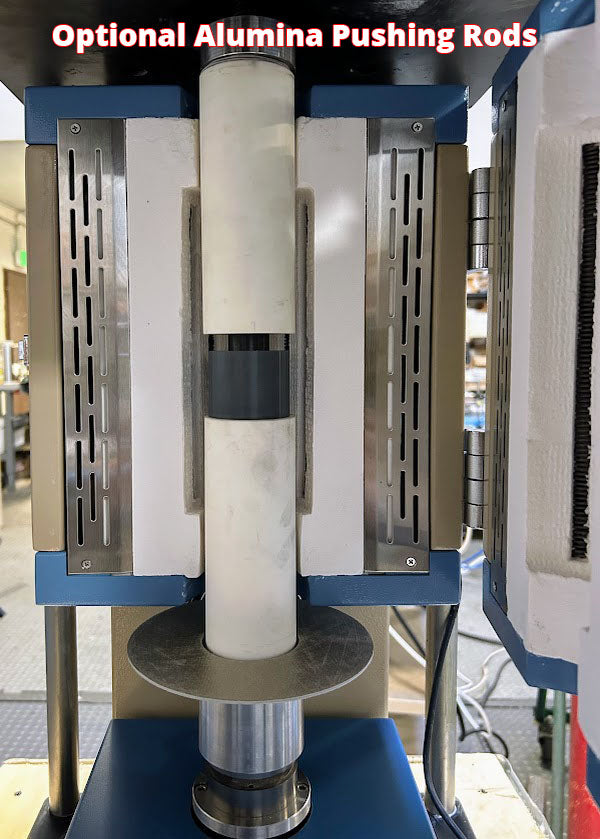

• Two alumina supporting rods
• Designed for hot press under ambient air.
• Working pressure
  • 1200ºC (<50 MPa,   637 kgf)
  • 1050ºC (<100 MPa, 1100 kgf )
  • 1000ºC (<150 MPa, 1170 kgf)
  • 800ºC (<160 MPa,   1800 kgf)

• CE Certified
• NRTL and CSA certification is available upon request
