500°C or 750°C 24T Laminating Hot Press (135x135 mm) with Dual Temp. Controller - YLJ-HP100-XX
  • 500°C or 750°C 24T Laminating Hot Press (135x135 mm) with Dual Temp. Controller - YLJ-HP100-XX
  • 500°C or 750°C 24T Laminating Hot Press (135x135 mm) with Dual Temp. Controller - YLJ-HP100-XX
  • 500°C or 750°C 24T Laminating Hot Press (135x135 mm) with Dual Temp. Controller - YLJ-HP100-XX
  • 500°C or 750°C 24T Laminating Hot Press (135x135 mm) with Dual Temp. Controller - YLJ-HP100-XX
  • 500°C or 750°C 24T Laminating Hot Press (135x135 mm) with Dual Temp. Controller - YLJ-HP100-XX
500°C or 750°C 24T Laminating Hot Press (135x135 mm) with Dual Temp. Controller - YLJ-HP100-XX

500°C or 750°C 24T Laminating Hot Press (135x135 mm) with Dual Temp. Controller - YLJ-HP100-XX

SKU: ylj-hp100-xx

Price: RFQ

Specifications

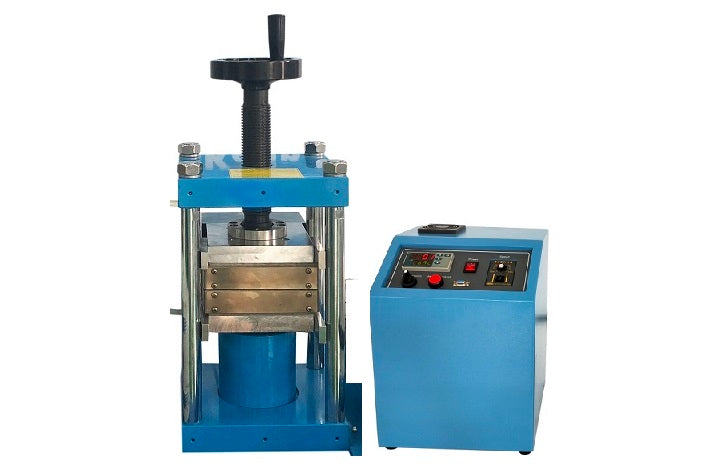

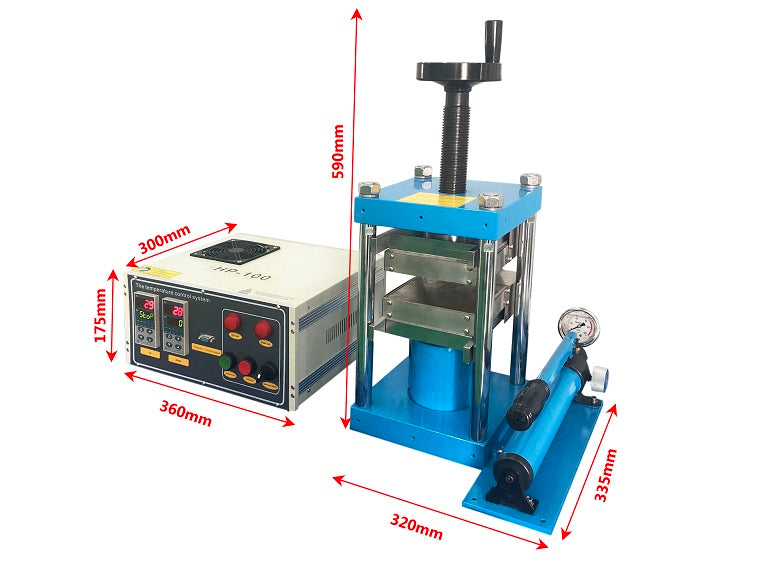

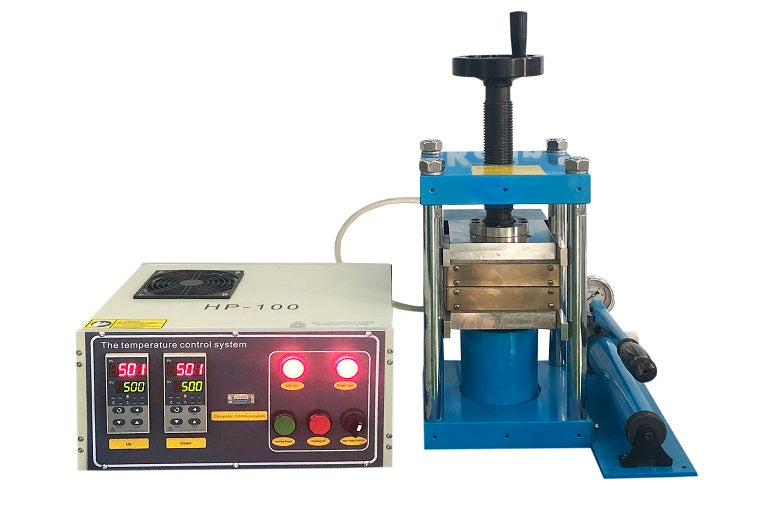

 YLJ-HP100XX is a optional 500°C or 750°C Max. lamination hot press, which consists of a 24T hydraulic press with two heated platens. The temperatures of the heated platens are controlled by two digital temperature controllers separately. The platens ( 135 x 135 mm area) are made of hardened Cr12MoV or SS310 alloy with a flat surface. Water cooling jackets are installed with the heating platen that allows the heated plate to get faster cooling. One pressure gauge (300 kN) is also mounted to monitor the pressure applied on the platen. It is an excellent tool to prepare polymer and ceramic samples, and SOEC cells (solid-oxide electrolyzer cells). SPECIFICATIONS: Hydraulic Press The hydraulic pump and hydraulic cylinder are separated for easy replacement Max. Force: 24T Manual operation Max. Working Pressure Gauge Displayed Pressure Value (MPa) 5 10 15 20 25 30 35 40 45 Actual Force Applied on the Hydraulic Cylinder (Ton) 4 6 9 11 14 17 19 22 24 The actual force applied to the Hydraulic Cylinder (Ton) is equal to the force applied to your working piece For calculating the actual pressure (MPa) applied to your working piece, please follow the equations below: P = T/(πr^2) x g x 10 P: Pressure (MPa) applied to your working piece T: Force (Ton) applied to the Hydraulic Cylinder g: Standard gravity. g ≈ 9.8 m/s 2 π: ~3.14 r: Radius (cm) of the working piece *1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm 2 Pressure Gauge Measuring Accuracy is ± 1.5 T The reading from pressure gauge is different with that applied on samples. Heated Platen Area Platen Area: 135 mm x 135 mm Material: Harden Cr12MoV alloy for 500°C version ( SS310 for 750oC version ) Surface: Flattening with CNC grinding The parallelism between two plates: < 0.05 mm within 10"x10" area Plate surface roughness: < 2 microns Max. Travel Distance 58 mm (that means the thickest sample should be below 58 mm). Do not raise the bottom cylinder (piston) more than its maximum traveling distance (80 mm) Max. Working Temperature 450°C continuous with water cooling 500°C for less than 30 minutes with water cooling 750°C version is available upon request at extra cost. Please choose from the product option Heating Rate & Cooling Rate ≤ 5°C/min Water Cooling Two 1/4" water pipe connectors. A water chiller is required but not included. Our KJ5000 water chiller is available. An optional electric hydraulic pump for automatic pressure control is also available. (Pic below ) Temperature Control Two digital controllers are installed in one box with 30 segments programmable and auto-tune faction Temperature accuracy ±2°C. Power Requirement 208 - 240 VAC, 50/60Hz, single phase 2.5 kW max. 15 A circuit breaker is required for 220 V, 5' length power cable included, but no plug Compliance CE Certified for the whole furnace NRTL (UL 61010) or CSA Certification is available upon request, additional charges will apply Application not This hot -press can be used inside glovebox with Ar and N2 gases

Hydraulic Press
  • The hydraulic pump and hydraulic cylinder are separated for easy replacement
  • Max. Force: 24T
  • Manual operation
Max. Working Pressure
Gauge Displayed Pressure Value (MPa)  5  10   15   20   25   30  35   40   45
Actual Force Applied on the Hydraulic Cylinder (Ton) 4  6  9  11  14  17  19  22  24
  • The actual force applied to the Hydraulic Cylinder (Ton) is equal to the force applied to your working piece
  • For calculating the actual pressure (MPa) applied to your working piece, please follow the equations below:
  • P = T/(πr^2) x g x 10
    • P: Pressure (MPa) applied to your working piece
    • T: Force (Ton) applied to the Hydraulic Cylinder
    • g: Standard gravity. g ≈ 9.8 m/s2
    • π: ~3.14
    • r: Radius (cm) of the working piece
    • *1 Metric Ton = 1000 kg; 1 MPa ≈ 10 kgf/cm2
Pressure Gauge
  • Measuring Accuracy is ± 1.5 T
  • The reading from pressure gauge is different with that applied on samples.
Heated Platen Area
  • Platen Area: 135 mm x 135 mm
  • Material: Harden Cr12MoV alloy for 500°C version ( SS310 for 750oC version)
  • Surface: Flattening with CNC grinding
  • The parallelism between two plates: < 0.05 mm within 10"x10" area
  • Plate surface roughness: < 2 microns
Max. Travel Distance
  • 58 mm (that means the thickest sample should be below 58 mm).
  • Do not raise the bottom cylinder (piston) more than its maximum traveling distance (80 mm)
Max. Working Temperature
  • 450°C continuous with water cooling
  • 500°C for less than 30 minutes with water cooling
  • 750°C version is available upon request at extra cost. Please choose from the product option
Heating Rate & Cooling Rate
  • ≤ 5°C/min
Water Cooling
  • Two 1/4" water pipe connectors.
  • A water chiller is required but not included.
  • Our KJ5000 water chiller is available.
  • An optional electric hydraulic pump for automatic pressure control is also available. (Pic below )


Temperature Control
  • Two digital controllers are installed in one box with 30 segments programmable and auto-tune faction
  • Temperature accuracy ±2°C.
Power Requirement
  • 208 - 240 VAC, 50/60Hz, single phase
  • 2.5 kW max.
  • 15 A circuit breaker is required for 220 V, 5' length power cable included, but no plug
Compliance
  • CE Certified for the whole furnace
  • NRTL (UL 61010) or CSA Certification is available upon request, additional charges will apply
 Application not This hot -press can be used inside glovebox with Ar and N2 gases
,
Gauge Displayed Pressure Value (MPa)  5  10   15   20   25   30  35   40   45
Actual Force Applied on the Hydraulic Cylinder (Ton) 4  6  9  11  14  17  19  22  24
