5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA
  • 5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA
  • 5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA
  • 5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA
  • 5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA
  • 5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA
  • 5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA
5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA

5T Electric Oil-less Press with Digital Programmable Pressure Controller (Ar Gas Compatible) - YLJ5TA

SKU: ylj-5ta

Price: RFQ

Specifications

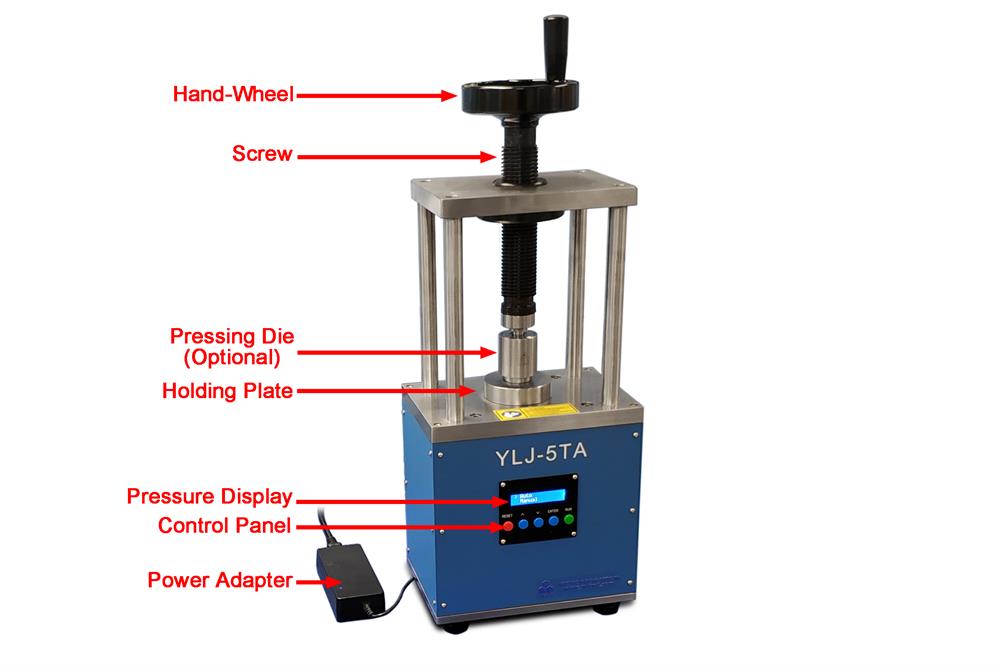

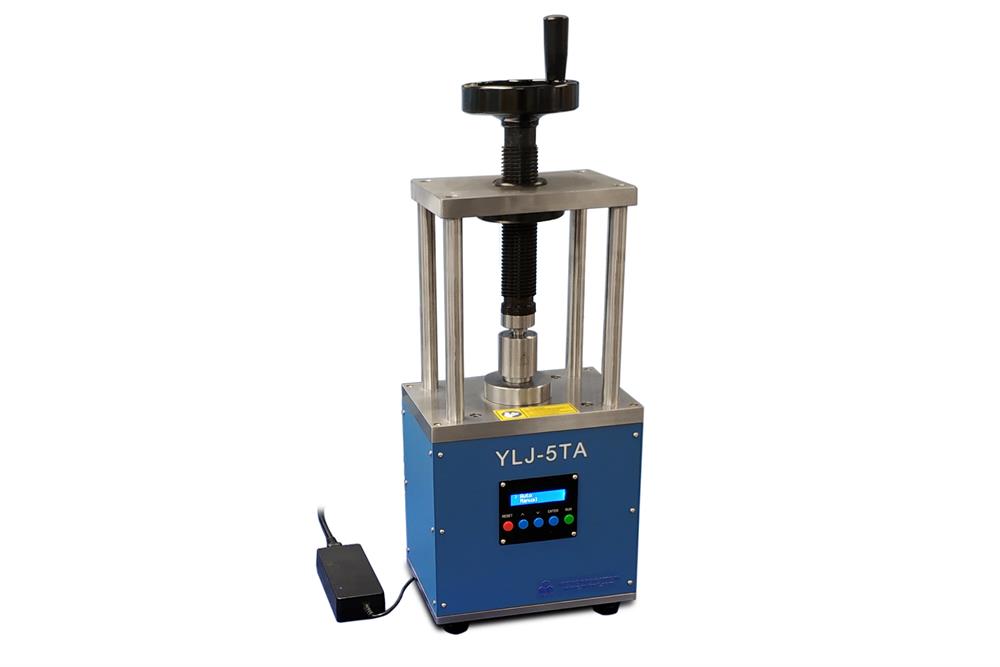

 YLJ-5TA is a compact electric compressive & oil-less press with a digital pressure gauge and load cell up to max. 5000 kg force via a DC motor (5 metric Tons). It is designed for compressing small pellets in the glove box (Ar compatible) for ceramic research and solid-state battery. The compact press can be placed inside the glovebox via an antechamber. PC control software and PC connection are included for 2023 and newer models. SPECIFICATIONS: Power 24V DC NRTL & CSA certified 110 - 240V AC to 24V DC 90W power adapter for universal use Pressure A built-in load cell with a digital display for pressure measurement and control Digital control panel for programmable pressure and dwell time Pressure adjustment range: 0.1-5T Pressure accuracy: +/- 0.003T Time setting: 1 - 999 minutes Optional:  10 metric ton press is available upon request at extra cost PC Control Software The PC port is built in for possible remote operation Software functionalities, which are available upon request at extra cost Pressure Monitoring. Data Logging/Exporting to Excel. Set up the pressure and pressing time. Start and stop the press. Optional: A laptop with pre-installed software is available upon request at an extra cost. Structure Heavy-Duty Steel Platform Working space Stroke: 35 mm Width: 135 mm Compliance CE approval NRTL or CSA certification is available upon request at an extra cost. Note: NRTL certification is not necessary due to 24VDC safe device

Power
  • 24V DC
  • NRTL & CSA certified 110 - 240V AC to 24V DC 90W power adapter for universal use
Pressure

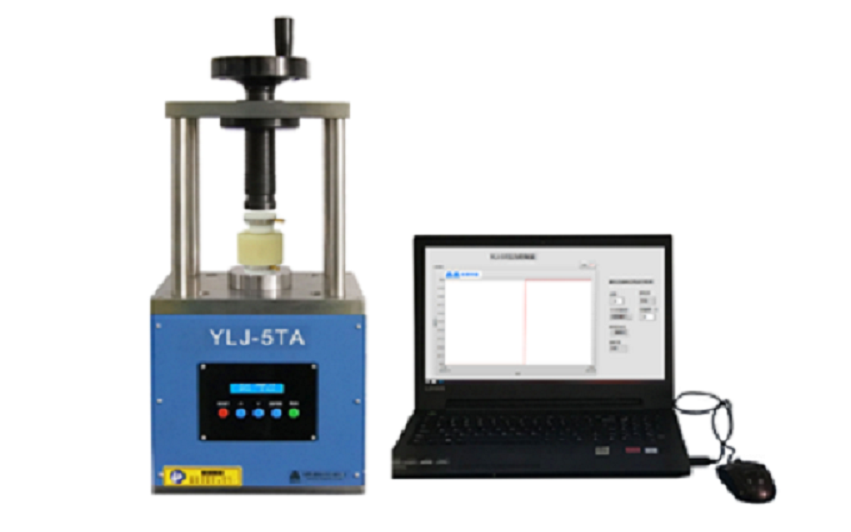

PC Control Software

  • The PC port is built in for possible remote operation
  • Software functionalities, which are available upon request at extra cost
    • Pressure Monitoring.
    • Data Logging/Exporting to Excel.
    • Set up the pressure and pressing time.
    • Start and stop the press.
  • Optional: A laptop with pre-installed software is available upon request at an extra cost.

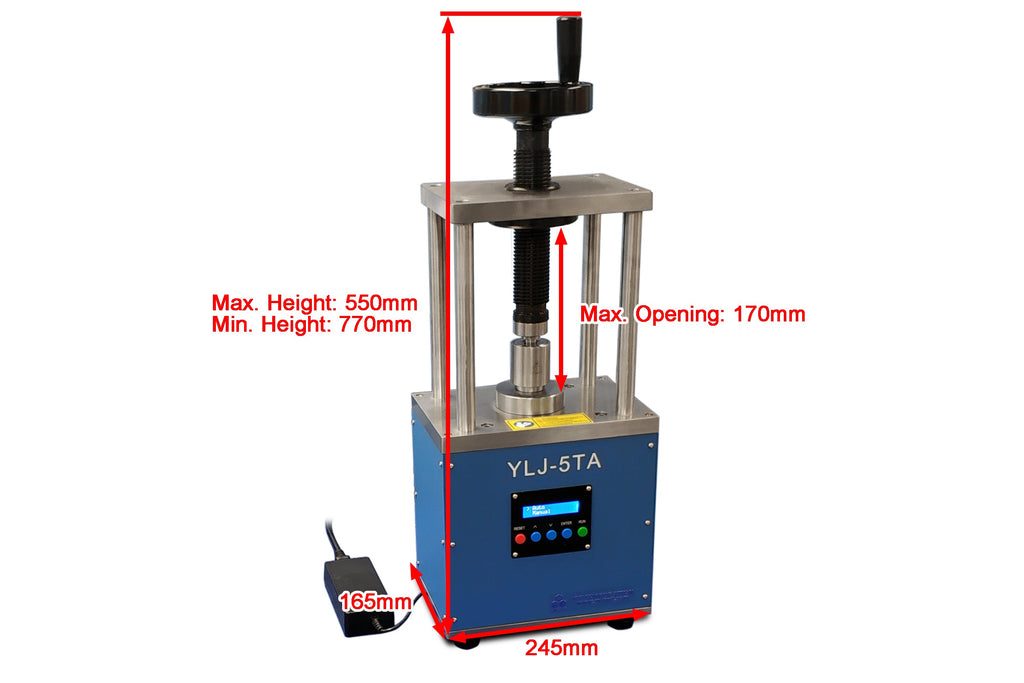

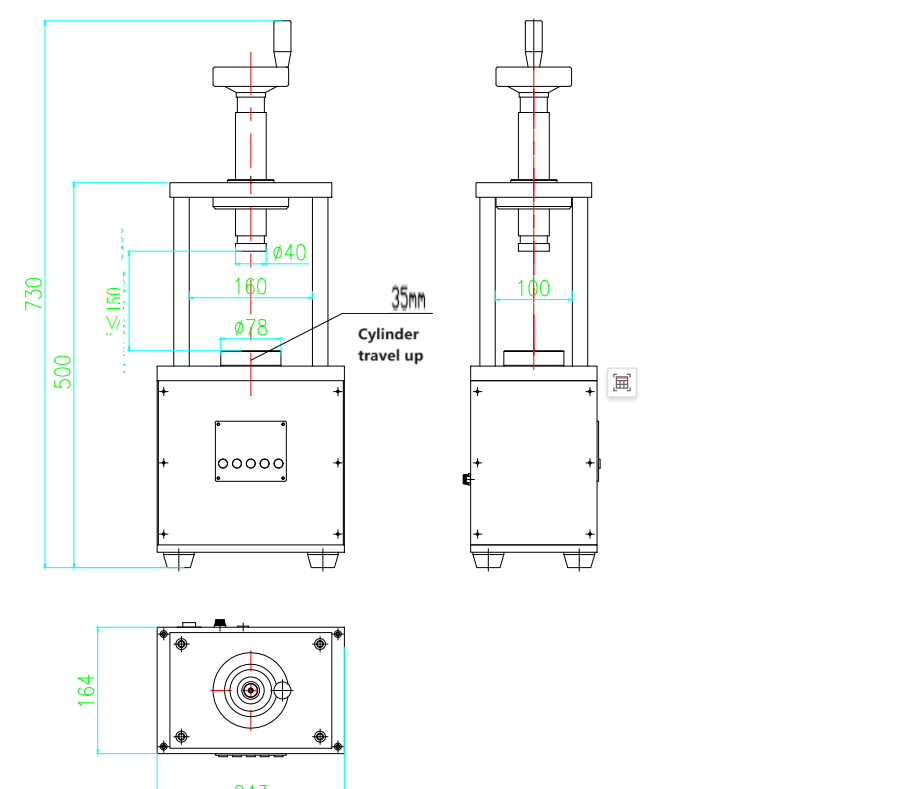

Structure Heavy-Duty Steel Platform
Working space Stroke: 35 mm
Width: 135 mm
Compliance
  • CE approval
  • NRTL or CSA certification is available upon request at an extra cost.
  • Note: NRTL certification is not necessary due to 24VDC safe device
