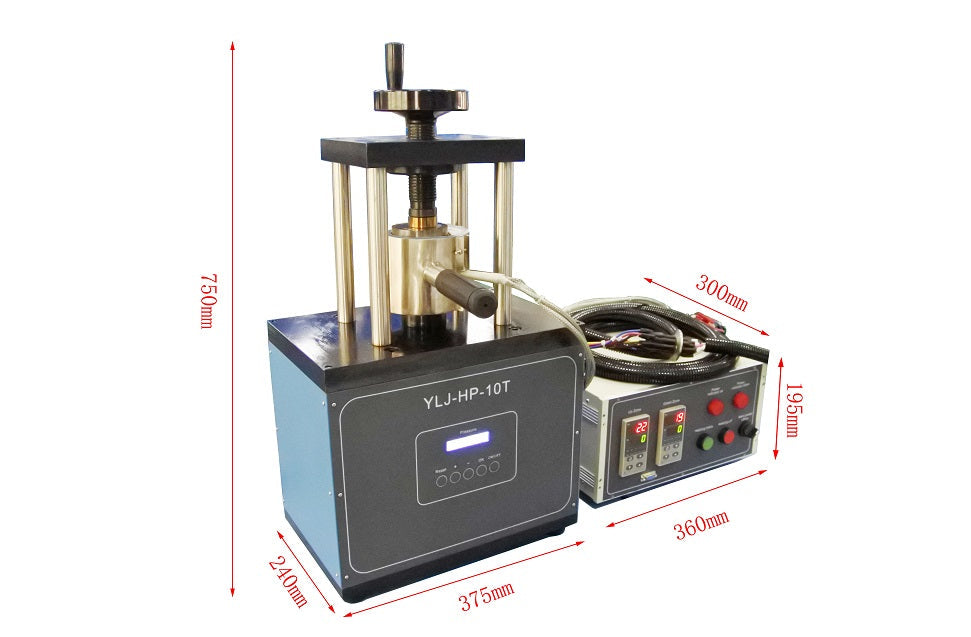

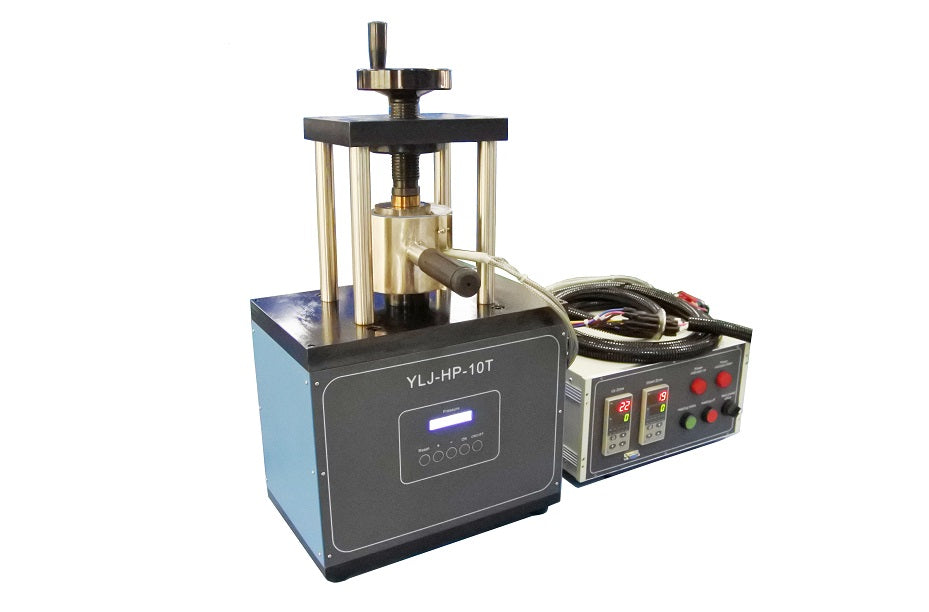

10T Electric Mechanic Press with WC Heating Dies (550ºC Max) - YLJ-HP-10T

10T Electric Mechanic Press with WC Heating Dies (550ºC Max) - YLJ-HP-10T

SKU: ylj-hp-10t

Price: RFQ

Specifications

 YLJ-HP-10T is a 10 max. electric mechanical press ( oilless) with tungsten carbide dies if 30 mm ID which is heated by dual-zone up to 550 ºC max. It is designed for sintering ceramic, ceramic-polymer composite, and air-sensitive materials in the glovebox. SPECIFICATIONS: Power Power consubsion 4000W ( including die heating and pressing ) Voltage: 208 - 240VAC, 50/60 Hz, single phase Pressing Machine Material: Heavy-duty carbon steel Stroke length: 35 mm A built-in load cell with a digital display for pressure measurement and control Digital control panel for programmable pressure and dwell time Pressure adjustment range: 0.1- 10T Pressure accuracy: +/- 0.005T Time setting: 1 - 999 minutes Heating Die Pellet pressing die is made of tungsten carbide (WC) Standard die included 30 mm ID 20 mm or 10 mm ID die is available upon request ) Max. the pressure of die: 200 Mpa Die Heating: The die is wrapped by two heating rings for uniform temperature. Two programable temperature controller which controls two heating rings independently Max. Working temperature: 550ºC < 30 minute and 500ºC continuously Temperature accuracy: +/- 1ºC Application Note: This pressure is designed for using insider glovebox with inert gas, including Ar gas If you will use the press inside the glove box, please let us know. One KF 40 feedthrough will be needed if you put the temperature control box outside the glovebox, which is available upon request at the extra cost. Compliance CE Certified NRTL or CSA certification is available at an extra cost

Power
  • Power consubsion 4000W ( including die heating and pressing )
  • Voltage: 208 - 240VAC, 50/60 Hz, single phase
 Pressing Machine
  • Material: Heavy-duty carbon steel
  • Stroke length: 35 mm
  • A built-in load cell with a digital display for pressure measurement and control
  • Digital control panel for programmable pressure and dwell time
    • Pressure adjustment range: 0.1- 10T
    • Pressure accuracy: +/- 0.005T
    • Time setting: 1 - 999 minutes

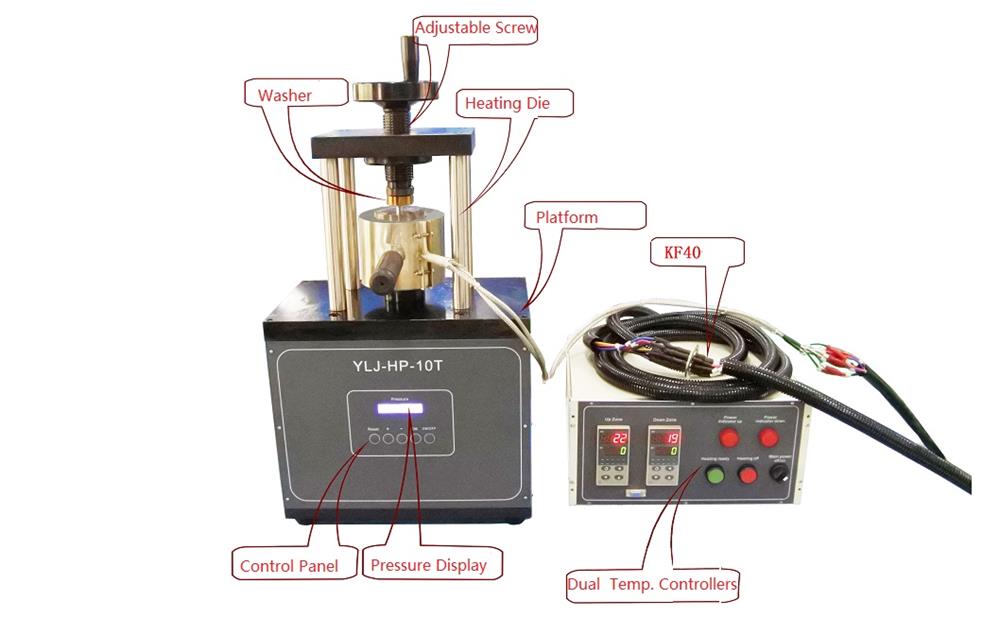

Heating Die

  • Pellet pressing die is made of tungsten carbide (WC)
    • Standard die included 30 mm ID 20 mm or 10 mm ID die is available upon request )
    • Max. the pressure of die: 200 Mpa
  • Die Heating: The die is wrapped by two heating rings for uniform temperature.
  • Two programable temperature controller which controls two heating rings independently
    • Max. Working temperature: 550ºC < 30 minute and 500ºC continuously
    • Temperature accuracy: +/- 1ºC
Application Note:

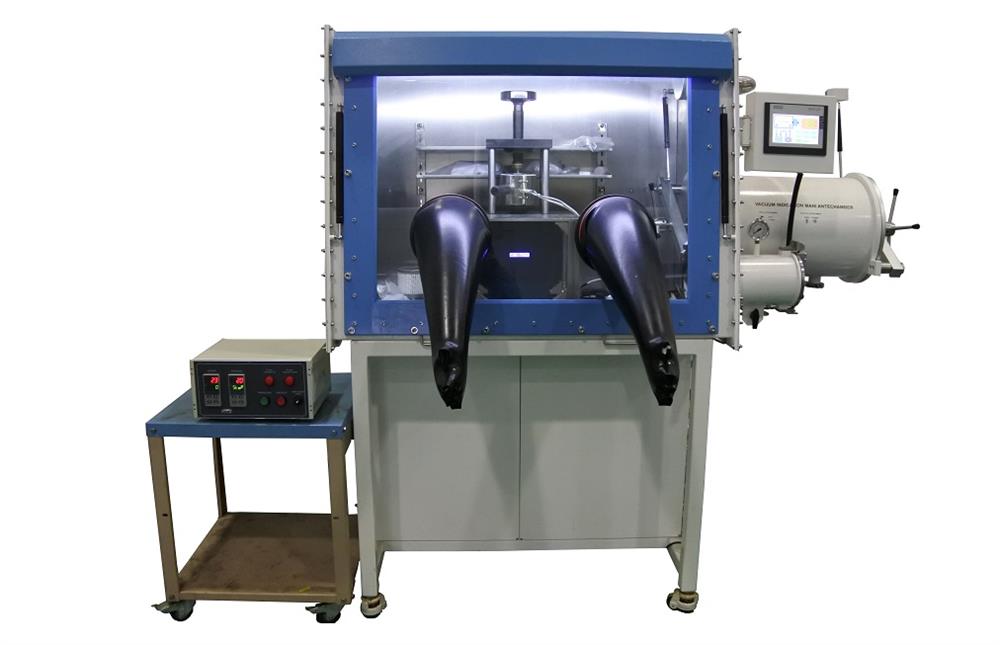

  • This pressure is designed for using insider glovebox with inert gas, including Ar gas
  • If you will use the press inside the glove box, please let us know. One KF 40 feedthrough will be needed if you put the temperature control box outside the glovebox, which is available upon request at the extra cost.
Compliance
  • CE Certified
  • NRTL or CSA certification is available at an extra cost
