1100 ºC 3-zone Top Seeded Solution Growth (TSSG) Furnace - VTF1200XIIITSSG
  • 1100 ºC 3-zone Top Seeded Solution Growth (TSSG) Furnace - VTF1200XIIITSSG
  • 1100 ºC 3-zone Top Seeded Solution Growth (TSSG) Furnace - VTF1200XIIITSSG
  • 1100 ºC 3-zone Top Seeded Solution Growth (TSSG) Furnace - VTF1200XIIITSSG
  • 1100 ºC 3-zone Top Seeded Solution Growth (TSSG) Furnace - VTF1200XIIITSSG
  • 1100 ºC 3-zone Top Seeded Solution Growth (TSSG) Furnace - VTF1200XIIITSSG
  • 1100 ºC 3-zone Top Seeded Solution Growth (TSSG) Furnace - VTF1200XIIITSSG
1100 ºC 3-zone Top Seeded Solution Growth (TSSG) Furnace - VTF1200XIIITSSG

1100 ºC 3-zone Top Seeded Solution Growth (TSSG) Furnace - VTF1200XIIITSSG

SKU: vtf1200xiiitssg

Price: RFQ

Specifications

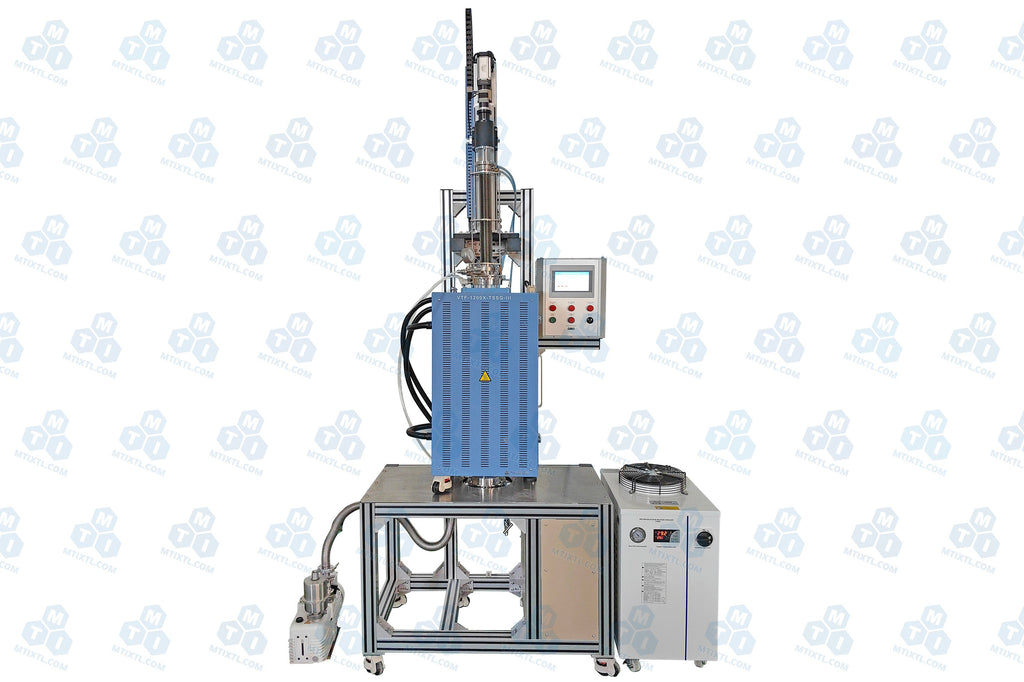

 VTF-1200X-III-TSSG is a 3-zone top seed solution growth ( TSSG ) furnace for growing various crystals via flux solution. The furnace consists of three heating zone with the chamber of 5" Diameter x 24" high up to 1200ºC. The Eurotherm temperature controller with 28 segments programmable is built in the furnace with +/- 0.1ºC accuracy, as well as precision, pulling, and rotation mechanism with a speed range from 0.1 - 50 mm/hour. Please click to view the article of Flux Method for Preparing Crystals Power 208V- 240V AC, 50/60Hz, single phase 5 kW Heating Chamber NiCrAl Kanthal heating coils Three heating zone: 150mm+300mm+150mm with independent temperature control Ø135 × 600 mm heating area Working Temperature <1100°C ( < 1 hr) ≤1000°C (continuous) Thermocouple Type K Temperature controller Eurotherm 3004 Temperature Controllers Growth Chamber Water-cooled stainless steel flanges and quartz tube (Ø100×Ø90×900 mm) for hermetic growth conditions Gas inlet / outlet: 1/4" compression tube fittings KF25 vacuum port Pressure relief valve @ 3 psig Pulling Mechanism Pulling speed 0.5 - 50 mm/hr Rotation speed 0.1- 23 rpm Maximum load < 2kg Downward speed 40 mm/min PLC touch screen panel for settings of temperature recipes and pulling parameters. Seed Crystal Mount Alumina seed crystal mount Alumina crucible stage Vacuum Pump (Optional) 156 L/min Double Stage Rotary Vane Vacuum Pump Water Chiller (Optional) Recirculating Water Chiller with 16L/min Flow, 6K BTU/hr -KJ5300 Compliance CE Certified NRTL or CSA certification is available upon request at extra cost.

Power
  • 208V- 240V AC, 50/60Hz, single phase
  • 5 kW

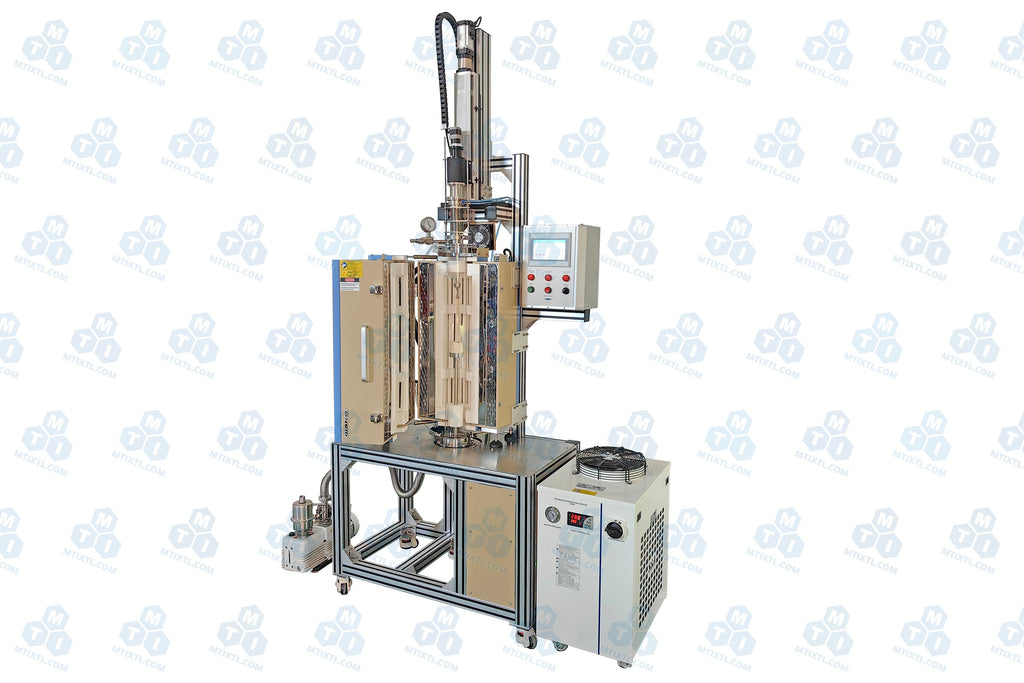

Heating Chamber
  • NiCrAl Kanthal heating coils
  • Three heating zone: 150mm+300mm+150mm with independent temperature control
  • Ø135 × 600 mm heating area
Working Temperature
  • <1100°C ( < 1 hr)
  • ≤1000°C (continuous)
Thermocouple
  • Type K
Temperature controller
  • Eurotherm 3004 Temperature Controllers

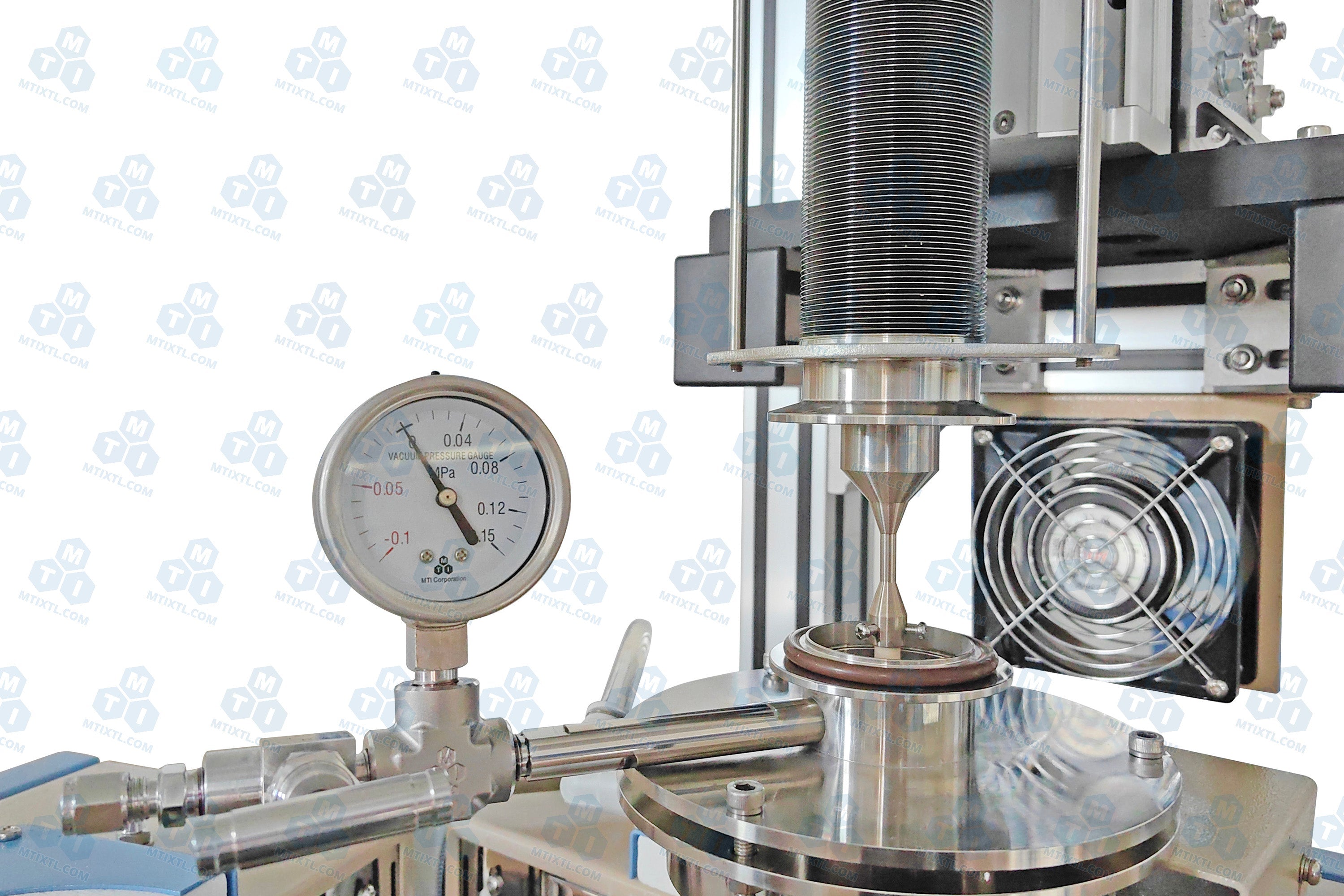

Growth Chamber

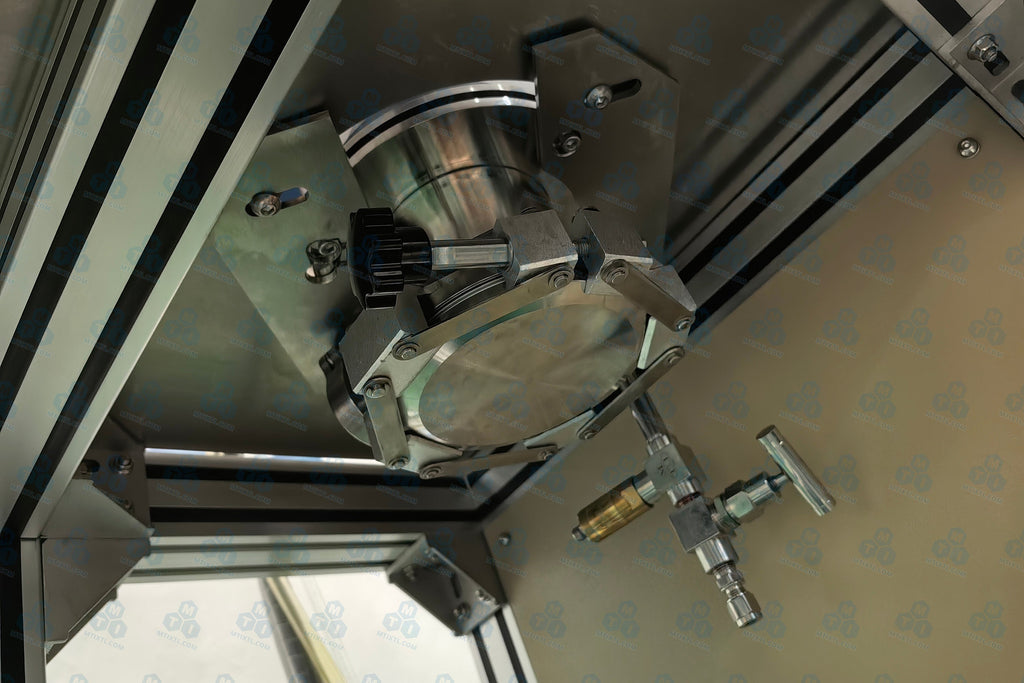

  • Water-cooled stainless steel flanges and quartz tube (Ø100×Ø90×900 mm) for hermetic growth conditions
  • Gas inlet / outlet: 1/4" compression tube fittings
  • KF25 vacuum port
  • Pressure relief valve @ 3 psig

Pulling Mechanism
  • Pulling speed 0.5 - 50 mm/hr
  • Rotation speed 0.1- 23 rpm
  • Maximum load < 2kg
  • Downward speed 40 mm/min
  • PLC touch screen panel for settings of temperature recipes and pulling parameters.

Seed Crystal Mount
  • Alumina seed crystal mount
  • Alumina crucible stage

Vacuum Pump (Optional)

Water Chiller (Optional)

Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at extra cost.
