500N Max. Compact Digital Tensile Tester with Laptop and Software - TST-500N
  • 500N Max. Compact Digital Tensile Tester with Laptop and Software - TST-500N
  • 500N Max. Compact Digital Tensile Tester with Laptop and Software - TST-500N
  • 500N Max. Compact Digital Tensile Tester with Laptop and Software - TST-500N
  • 500N Max. Compact Digital Tensile Tester with Laptop and Software - TST-500N
  • 500N Max. Compact Digital Tensile Tester with Laptop and Software - TST-500N
  • 500N Max. Compact Digital Tensile Tester with Laptop and Software - TST-500N
500N Max. Compact Digital Tensile Tester with Laptop and Software - TST-500N

500N Max. Compact Digital Tensile Tester with Laptop and Software - TST-500N

SKU: tst-500n

Price: RFQ

Specifications

 TST-500N is a compact digital tensile tester with a laptop and software up to 500N ( 50kg) via manual wheel displacement.  It is designed for testing thin foil, electrode strips, and metallic wire at a low cost. SPECIFICATIONS Features USB DATA OUTPUT - The Digital Force Gauge 500N can store up to 999 sets of PEAK test data. A USB data cable is included to connect to the laptop and export real-time measurement data. LAPTOP and SOFTWARE - a brand new laptop ( 15") and software are included that can export test data or charts (force versus time curve). VARIOUS ACCESSORIES - Digital Force Meter comes with Compression test parts, Tensile test parts, and Extension rod, which are able to meet most simple tests. The gauge and various accessories can be put into the carrying case for convenient storage. This Test Stand has a digital displacement scale (no output function), which can help you measure the displacement during the test. Measurement Range: 0-6"/ 0-150mm | Resolution: 0.0005"/ 0.01mm GAUGE PARAMETERS - Capacity: 500N/110lbf/50Kgf | Resolution: 0.1N/0.01lbf/0.01Kgf | Accuracy: ±0.5% Data Output: USB output Lithium Battery: 5V, 1700mAh Charger: Input (AC 100-240V 50-60Hz), Output (DC 5V 0.5A) Dimension Warranty One-year limited warranty (Consumable parts such as heating elements, SiC die, and pushing rod are not covered by the warranty ) Compliance CE Certified NRTL certification (UL61010)  or CSA certification is available upon request at extra cost. Operation Video

Features
  • USB DATA OUTPUT - The Digital Force Gauge 500N can store up to 999 sets of PEAK test data.

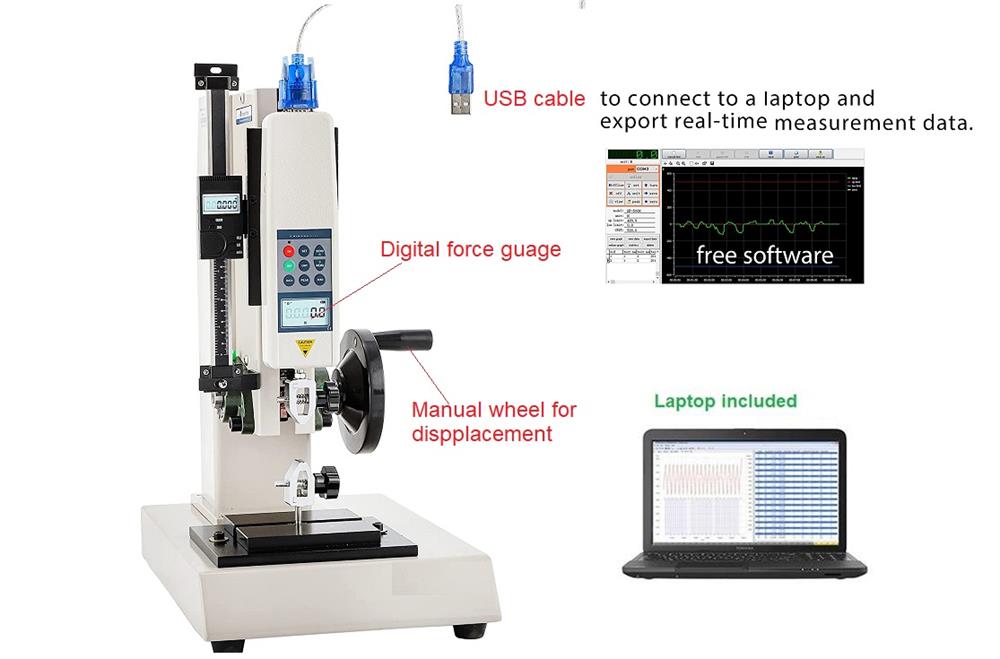

  • A USB data cable is included to connect to the laptop and export real-time measurement data.
  • LAPTOP and SOFTWARE - a brand new laptop ( 15") and software are included that can export test data or charts (force versus time curve).

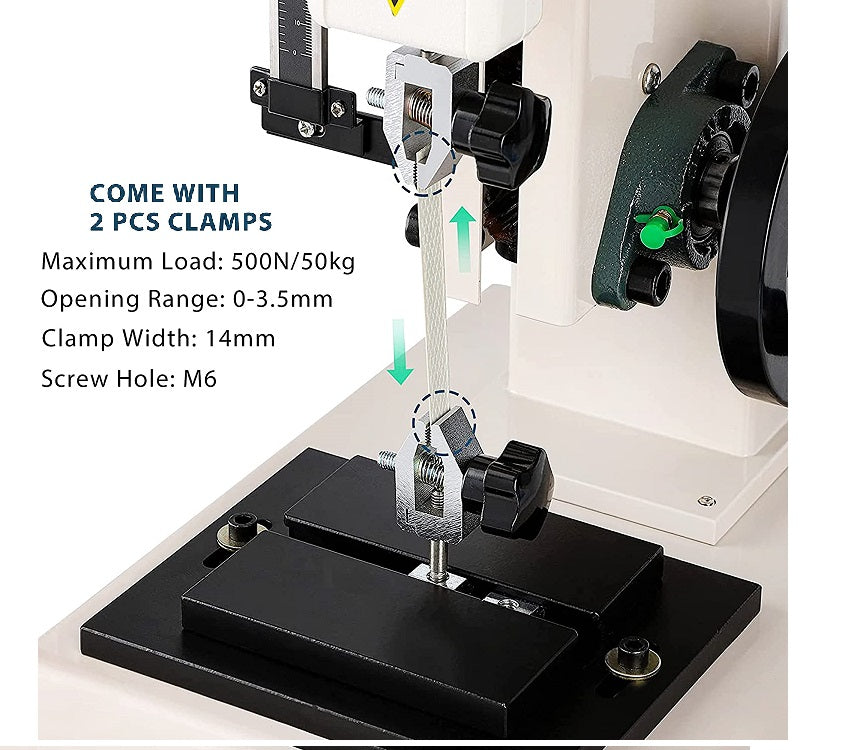

  • VARIOUS ACCESSORIES - Digital Force Meter comes with Compression test parts, Tensile test parts, and Extension rod, which are able to meet most simple tests. The gauge and various accessories can be put into the carrying case for convenient storage.

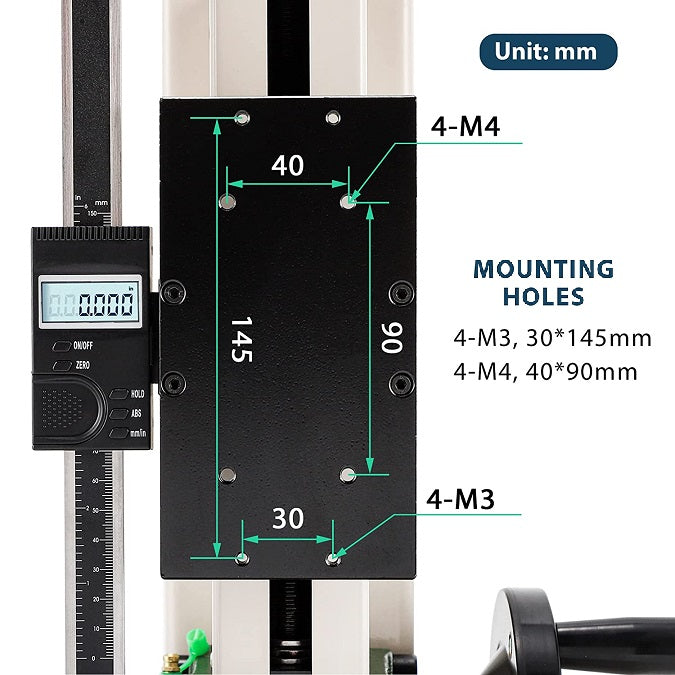

  • This Test Stand has a digital displacement scale (no output function), which can help you measure the displacement during the test. Measurement Range: 0-6"/ 0-150mm | Resolution: 0.0005"/ 0.01mm
  • GAUGE PARAMETERS - Capacity: 500N/110lbf/50Kgf |
    • Resolution: 0.1N/0.01lbf/0.01Kgf | Accuracy: ±0.5%
    • Data Output: USB output
    • Lithium Battery: 5V, 1700mAh
    • Charger: Input (AC 100-240V 50-60Hz), Output (DC 5V 0.5A)

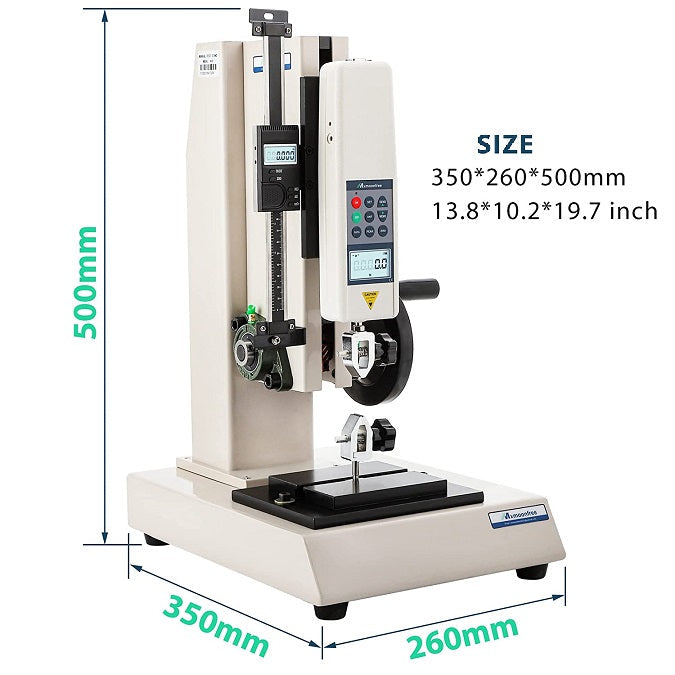

Dimension

Warranty
  • One-year limited warranty
  • (Consumable parts such as heating elements, SiC die, and pushing rod are not covered by the warranty )

Compliance
  • CE Certified
  • NRTL certification (UL61010)  or CSA certification is available upon request at extra cost.

Operation Video
