High Speed Diamond Cut-off Saw with 5 pcs 4" Diamond Blades - SYJ-40-LD
  • High Speed Diamond Cut-off Saw with 5 pcs 4" Diamond Blades - SYJ-40-LD
  • High Speed Diamond Cut-off Saw with 5 pcs 4" Diamond Blades - SYJ-40-LD
High Speed Diamond Cut-off Saw with 5 pcs 4" Diamond Blades - SYJ-40-LD

High Speed Diamond Cut-off Saw with 5 pcs 4" Diamond Blades - SYJ-40-LD

SKU: syj-40-ld

Price: RFQ

Specifications

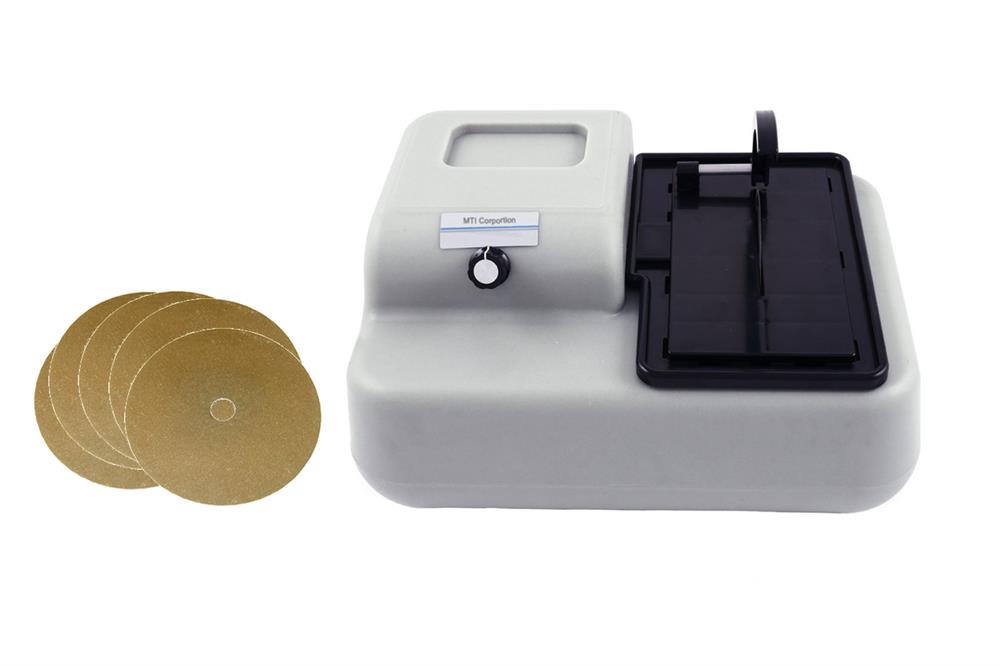

 SYJ-40 is a 4" Manual Cut-off Saw and is the perfect tool for cutting valuable materials quickly, such as rough crystal, ceramic, metal rod and almost any material before lapping and polishing. Notice: The vice is no longer included in the standard package since Sept. 2020.

Power

Motor & Spindle
  • The 1/4 HP equivalent variable speed ball bearing direct drive motor allows the saw to run fast enough to use ultra-thin diamond blades
  • Speed varies from 400 to 3250 RPM
Housing and Sample holder
  • The saw housing is flat and removable. It is easy to trim oversized slabs and be cleaned after the operation
  • Max. sample loading length: 6"
  • The sturdy table measures 6" x 10", easy to operate
  • The saw housing is made of unbreakable cross-linked polyethylene - no rusting, no messy oil, water only
  • Max. cutting depth: 1" (25.4 mm)
  • Max. sample width: 40 mm (limited by the opening of the sample holder)

Cutting Blade
Shipping Dimensions

  • 16" x 13" x 11”
Shipping Weight
  • 16 lbs
Application Notes Please note that this manual diamond saw is mainly for fast cutting. For more precise cutting, please select our precision low-speed diamond cutting saws such as SYJ-150 or SYJ-160
