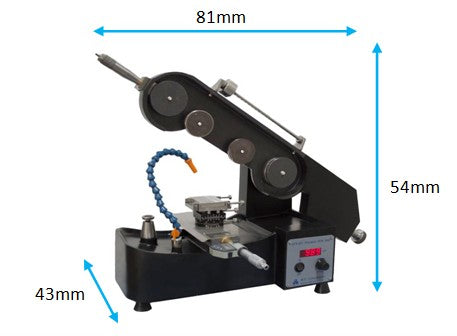

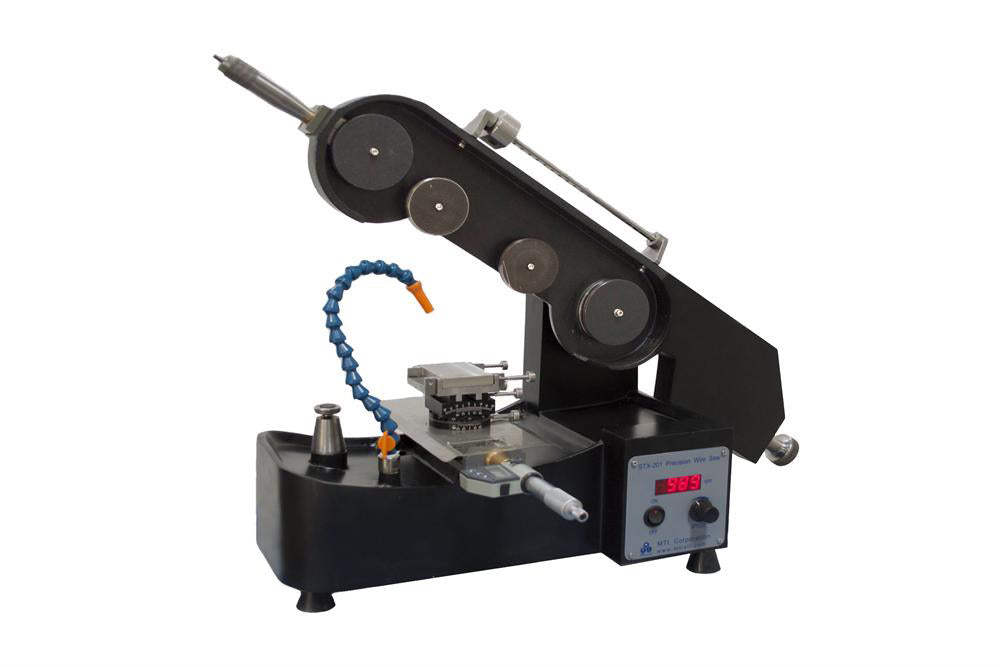

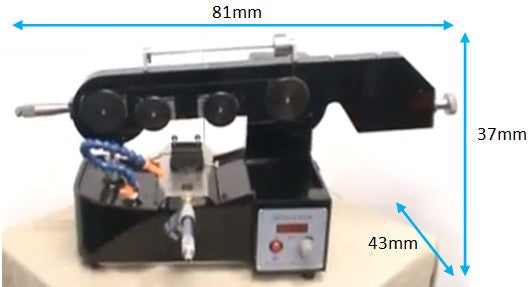

Endless Diamond Wire Saw with Digital Micrometer and Two Angle Adjustable Sample Stage - STX-201

Name: Endless Diamond Wire Saw with Digital Micrometer and Two Angle Adjustable Sample Stage - STX-201
Brand: MTI
SKU: STX201
Availability: OutOfStock

SKU: stx-201

Price: RFQ

Specifications

STX-201 is a CE Certified precision endless wire saw, designed to provide a very smooth cutting for almost all kinds of materials by using either a diamond impregnated or a plain wire blade with an abrasive slurry. It is an ideal tool suitable for cutting valuable delicate and fragile crystals such as SrTiO3, YVO4, and GaAs etc. (Updated to Digital Micrometer Version from 05/04/2016, We reserve the right to change the price without notice based on inventory)

Stage travel distance	Max. 50.8 mm (2") travel length 360 degree horizontal rotating and 30 degrees tilt stage
Traveling position accuracy	2'' Digital Micrometer Head with an accuracy of +/- 0.01 mm (10 microns)
2" Travel Digital Micrometer Head
Size of sample stage	80 x 51 mm
Wire traveling speed	0-3m/sec
Rotate speed	50-900rpm
Diamond Wire	One-piece loop type diamond wire (840 mm long, 0.4mm Dia. Diamond coated) is included for immediate use A Diamond Blade Dressing Stone is included for keeping the wire sharp Anti-corrosive coolant is required during cutting (please select in the optional product below table) The diamond wire is consumable. Please click the picture below to order spare
Cutting thickness	Up to 50 mm
Power Supply	AC 110~220 50/60Hz, 50W
Certification	CE certified. With an additional certification fee, MTI can arrange NRTL to perform UL/CSA inspection and label the machine per the customer's request.
Application Note	Diamond wire is very easily broken. Please carefully install the wire and balance gravity before cutting.
Warnings	It is required to use proper cutting fluid with the saw to prevent wire cold and from corrosion of the machine, We strongly recommend you use oil-based coolant or lube cool lubricant with the water pump. Do not use tap water directly, otherwise, the rusting components are not part of the warranty. Never cut any materials without the use of proper cutting fluid. If you do so, serious damages can be caused by the spooler driving mechanism. For cutting the sticky materials such as non-ferrous alloy, epoxy, and plastic, you must sharpen diamond wire frequently. We suggest that cutting sample along with the included dressing stone (Glue sample and the dressing stone side by side and cut them together, this process will help keep the wire sharp enough for efficient cutting. Please clean the machine after the completion of each use.

,

Part No	Description	Image
STX201	STX201 Wire Saw (main machine), 1 set

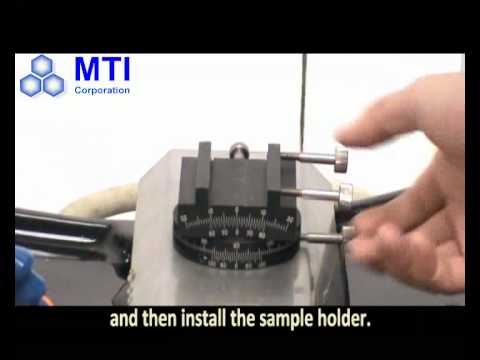

SXJ-2-3	2" Rotatable and tilt-able Sample Holder, 1 pc
S201VISE	Cross Vise for Holding Sample with sample holder, 1 pc
S201PW4	840 mm long, 0.4mm dia. Diamond Loop Wire, 1 pc
LSS-021	Diamond Blade Dressing Stone, 1 pc
S201SOR	Driving Belt, 1 pc pre-installed
SXJ-2-7	Wax Bulk, 1 pc
SXJ-2-8	Resin Bonded Ceramics for Samples Holding (50 x 50mm), 2 pcs
SXJ-2-9	Screw Driver, 1 set
SXJ-2-10	Allen hex-wrench 3 & 2.5mm, 1 set
SXJ-2-11	Fuse, 1 pc
SXJ-2-12	Leading wheel, 2 pcs
SXJ-2-13	Tension wheel, 2 pcs
SXJ-2-14	Water pipe, 2 pcs
MHD-50C	Digital Micrometer Head 2" Travel 0.005 mm accuracy, 1 set
	AC Power Cord,1 pc
	Operation Manual, 1 pc

,

Part No	Description	Image
EC0-417	Coolant Circulating Pump (320gl/hour)
Lube cool	Lube Cool 150 Lubricant, 1Oz/bag ( click to order)
ECO430	Heavy Duty Coolant Circulating Tank with Pump 4 liters (strongly suggested but the customer is responsible for the connection) ( click to order)
Consumables & Accessories (Click to view recommended spare parts list) * Optional parts are not included in standard package. You have to order separately. Prices are subject to change without notification.
