Specifications

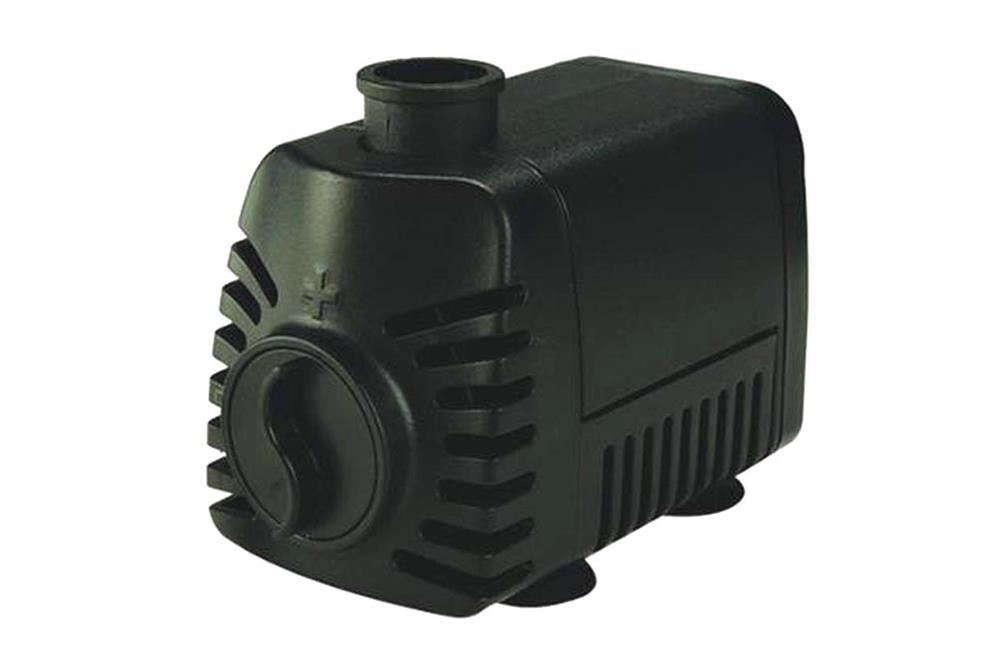

| Item | EQ-STX202-PUMP-LD is a Coolant Circulating Pump for Precision Wire Saw STX-202 | ||||||||||||||||||
| Pump voltage is the same as the saw voltage | |||||||||||||||||||
| |||||||||||||||||||
| Model | EQ-STX202-PUMP-LD | ||||||||||||||||||
| Specification |
|
| Voltage | 110V 60Hz (0.23A) | 220V 50Hz |
| Picture |  |
 |
| Watts | 17 W | 15 W |
| Max.Lift Height | 6.3 ft | 1.1 m |
| Q max |
264 GPH (U.S. gallon per hour) |
800 l/H |
|
Push to Connect Tube Fittings |
Push to connect 8mm | Push to connect 8mm |
