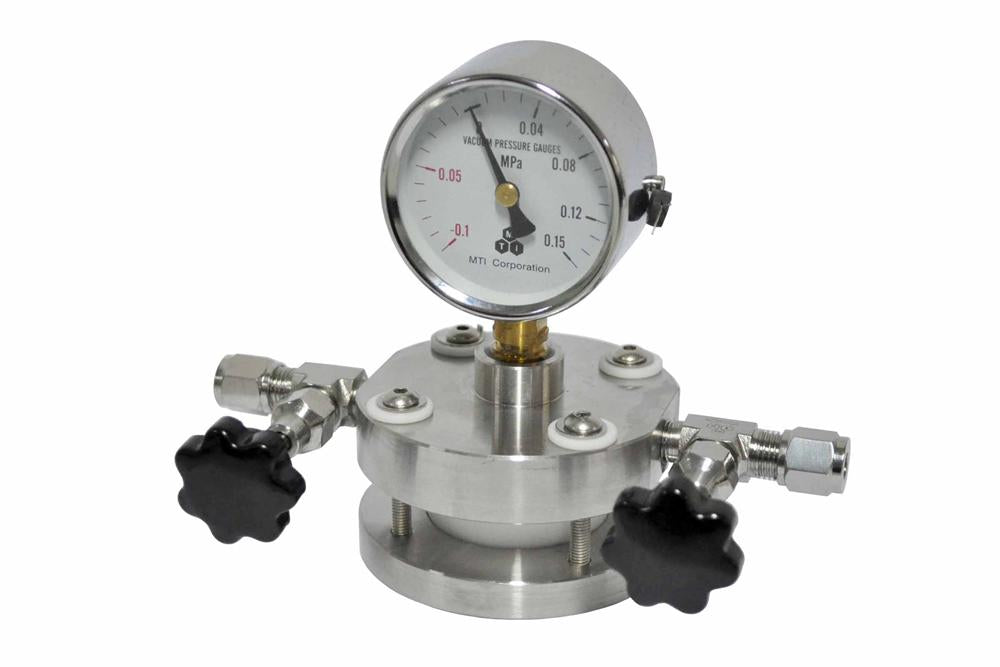

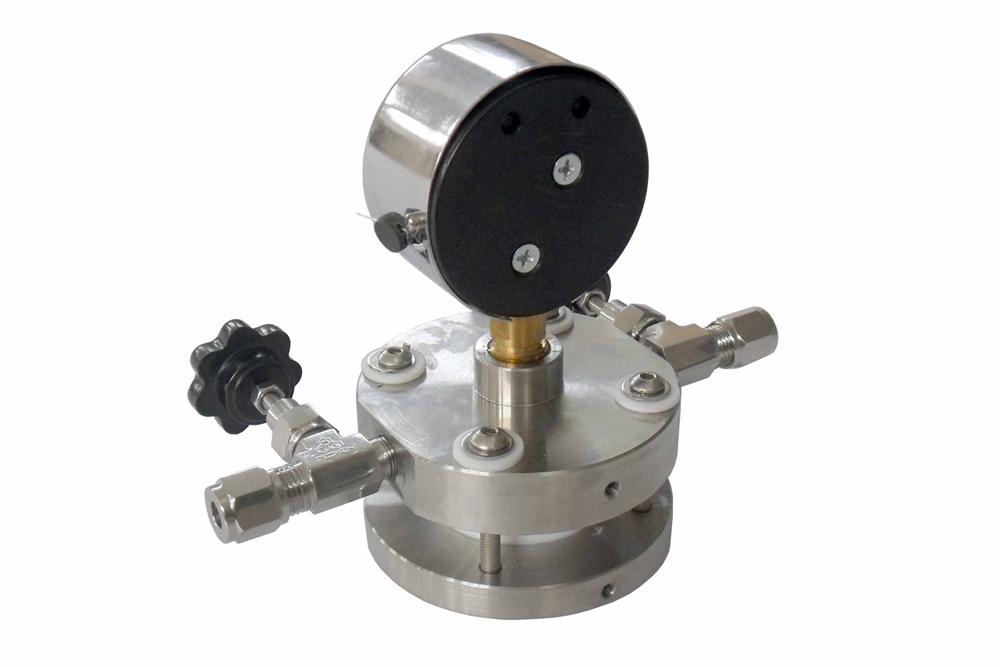

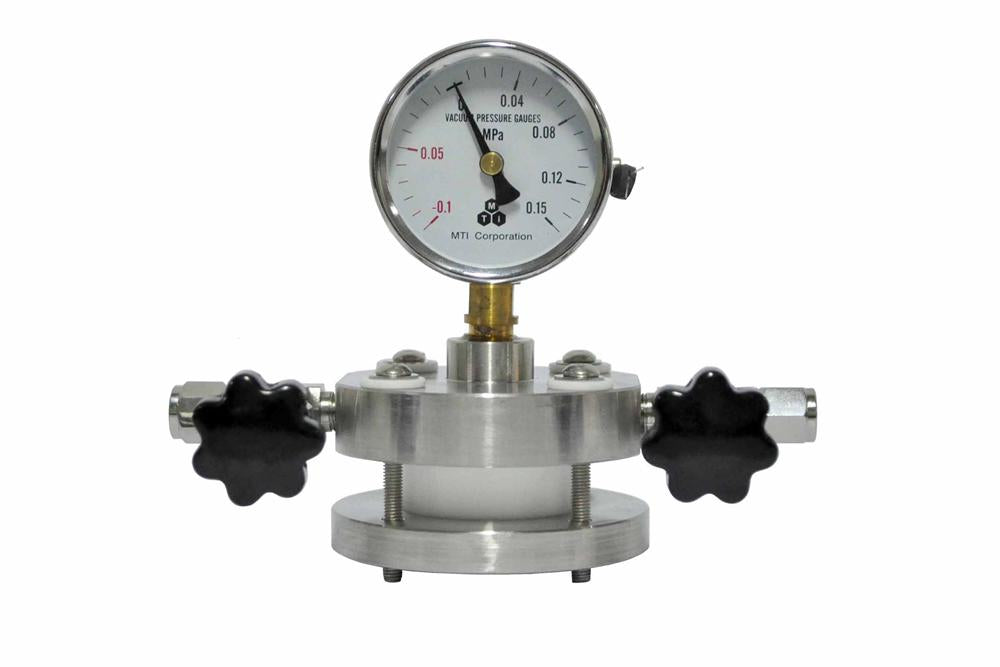

Split Test Cell for Lithium Air Battery Research - EQ-STC-AIR-1
  • Split Test Cell for Lithium Air Battery Research - EQ-STC-AIR-1
  • Split Test Cell for Lithium Air Battery Research - EQ-STC-AIR-1
  • Split Test Cell for Lithium Air Battery Research - EQ-STC-AIR-1
Split Test Cell for Lithium Air Battery Research - EQ-STC-AIR-1

Split Test Cell for Lithium Air Battery Research - EQ-STC-AIR-1

SKU: split-test-cell-for-lithium-air-battery-research-eq-stc-li-air-1

Price: RFQ

Specifications

 The EQ-STC-LI-AIR is a Split Test Cell for Lithium-Air Battery Research. You can control airflow pressure and test various anode and cathode materials. This cell has been successfully demonstrated in the Science paper of " A room temperature rechargeable Li2O-based lithium-air battery enabled by a solid electrolyte ". SPECIFICATIONS: Structure SS304 steel Structure with internal Silver-Clad surface treatment ensures high electrical conductivity and good corrosion protection Two electrodes design Electrolyte corrosive-proof PEEK Guide Sleeve and Sealing O-rings The compact design fits in any benchtop glove boxes Cell Thickness 1~3mm (cathode + separator + anode) Bottom Recess Area 20 mm Diam. Max. Working Temperature 200°C (The default PEEK sleeve works well in this temperature range) Pressure Gauge Mechanical pressure gauge with a display range from -0.1~0.15Mpa Valves & Fittings Two Stainless Steel needle valves with 1/4" O.D Tube Fittings

Structure
  • SS304 steel Structure with internal Silver-Clad surface treatment ensures high electrical conductivity and good corrosion protection
  • Two electrodes design
  • Electrolyte corrosive-proof PEEK Guide Sleeve and Sealing O-rings
  • The compact design fits in any benchtop glove boxes
Cell Thickness
  • 1~3mm (cathode + separator + anode)
Bottom Recess Area
  • 20 mm Diam.
Max. Working Temperature
  • 200°C (The default PEEK sleeve works well in this temperature range)
Pressure Gauge
  • Mechanical pressure gauge with a display range from -0.1~0.15Mpa
Valves & Fittings
  • Two Stainless Steel needle valves with 1/4" O.D Tube Fittings
