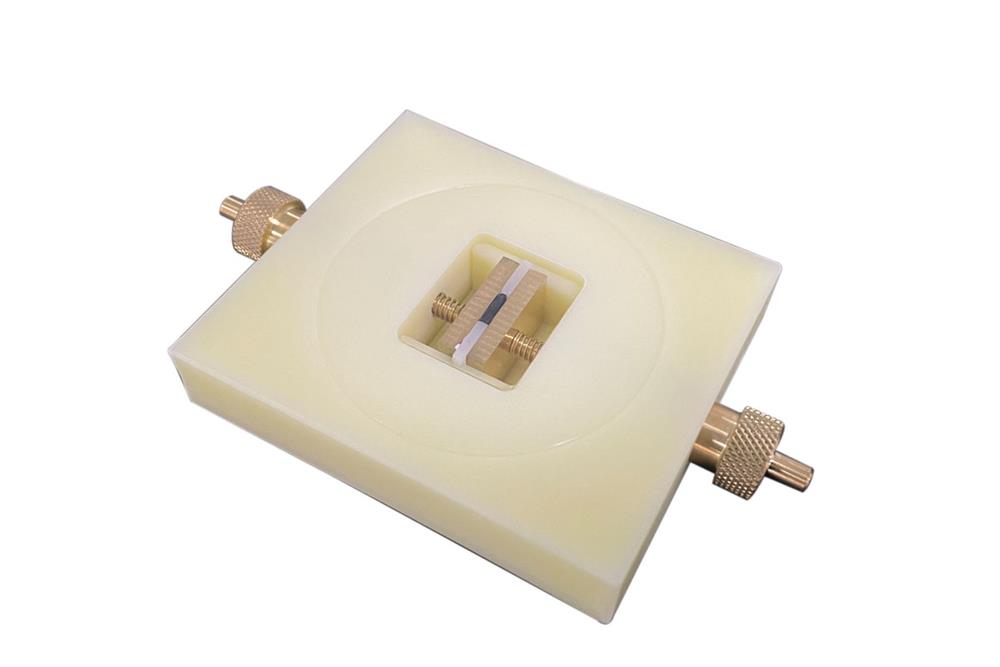

Small Split Cell with Quartz Window for In-Situ Optical Microscope Analysis of SSB Interface - STC-SSI
  • Small Split Cell with Quartz Window for In-Situ Optical Microscope Analysis of SSB Interface - STC-SSI
  • Small Split Cell with Quartz Window for In-Situ Optical Microscope Analysis of SSB Interface - STC-SSI
  • Small Split Cell with Quartz Window for In-Situ Optical Microscope Analysis of SSB Interface - STC-SSI
  • Small Split Cell with Quartz Window for In-Situ Optical Microscope Analysis of SSB Interface - STC-SSI
Small Split Cell with Quartz Window for In-Situ Optical Microscope Analysis of SSB Interface - STC-SSI

Small Split Cell with Quartz Window for In-Situ Optical Microscope Analysis of SSB Interface - STC-SSI

SKU: small-split-cell-with-quartz-window-for-in-situ-optical-microscope-analysis-of-ssb-interface-eq-stc-ssi

Price: RFQ

Specifications

 EQ-STC-SSI-S is a small splittable test cell with optical grade quartz widow to analyze the interface of solid-state battery electrodes, mainly dendrite growth,  via an optical microscope. Two small plates driven by screws would press the cathode, solid electrolyte, and anode electrode together. SPECIFICATIONS: Test Cell The cell case is made of Nylon Sealed by the silicone O-rings which is liquid-tight and air-tight Two pressing plates are made of stainless steel 304 with the gold coating Two brass pressing screws for Cathode ad Anode Max Force:  1500N Note:  May use a digital torque wrench to apply force accurately. Quartz Observation Window The window is made of optimal grade quartz glass Diameter: 50.8 mm Thickness: 0.5 mm Most microscope lenses are compatible Only clean the glass with lens wipes. Note: Glass is fragile and can be attached to the case with adhesive. Please handle with extreme care. In case of fracture or debonding, please click the link to order replacement glasses SSI-WD Cell Structure and Dimension Cell Structure: Cathode - Solid-state electrolyte - Anode Standard fixture for solid-state electrolyte: 6 mm × 6 mm × 1.5 mm Optional fixtures up to 12 × 12 × 1.5 mm Springs Test piece is compressed and held in place by two compression springs. Material: SUS 304 Spring Rate / Stiffness: 0.588 N/mm (60 g/mm) Dimensions when free: 4 mm OD × 3.2 mm ID × 16 mm L Length under maximum compression: 4.4 mm Please contact MTI to order replacement springs. Dimensions Assembly: 105 mm L × 60 mm W × 40mm H (Click the picture for detail) Operational Instruction Warranty Battery Test Cells are considered consumables and are not covered by warranty The gold coating on plates may be dissolved in liquid electrolyte, or even solid-liquid electrolyte. Please only use this type cell to study all-solid-state battery interface. Application Notes This test cell is compatible with MTI's microscope EQ-MM500T-USB . Microscopy pictures showing Steel-Lithium-Steel interface observation at various magnifications > X400 focus becomes difficult due to glass window. x 50 x100 x200 X400 (Optical Magnification = objective lens × eye lens

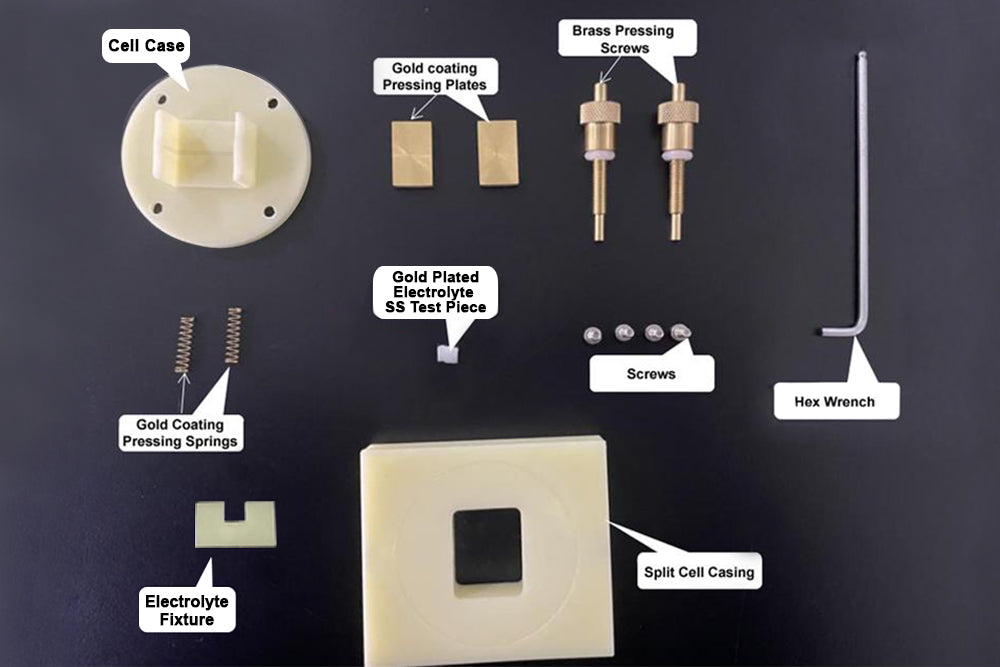

Test Cell
  • The cell case is made of Nylon
  • Sealed by the silicone O-rings which is liquid-tight and air-tight
  • Two pressing plates are made of stainless steel 304 with the gold coating
  • Two brass pressing screws for Cathode ad Anode
  • Max Force:  1500N
  • Note:  May use a digital torque wrench to apply force accurately.
  •
Quartz Observation Window
  • The window is made of optimal grade quartz glass
  • Diameter: 50.8 mm
  • Thickness: 0.5 mm
  • Most microscope lenses are compatible
  • Only clean the glass with lens wipes.
  • Note: Glass is fragile and can be attached to the case with adhesive. Please handle with extreme care. In case of fracture or debonding, please click the link to order replacement glasses SSI-WD

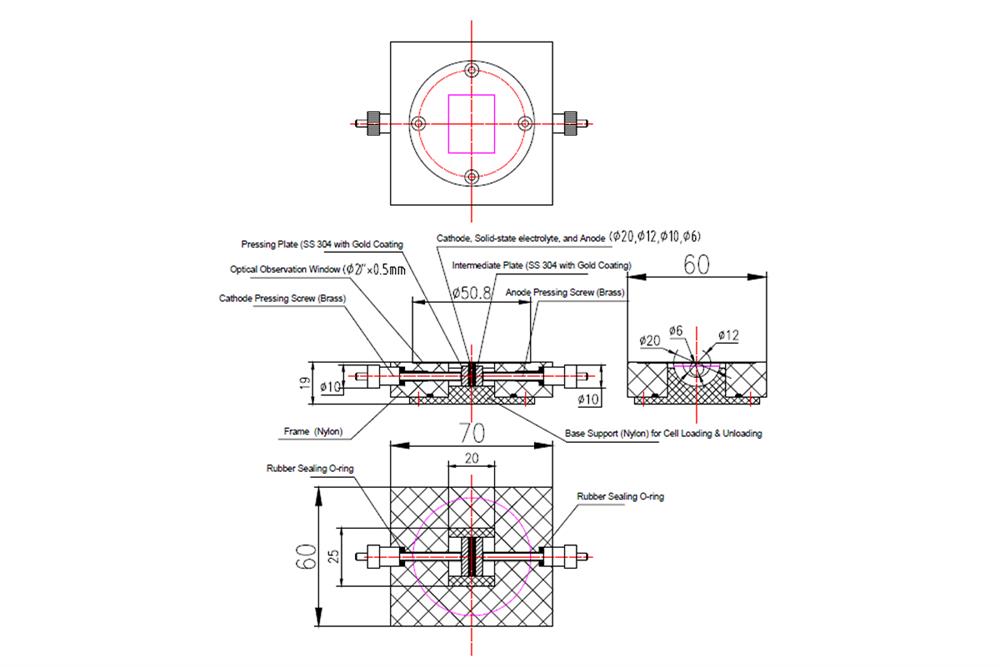

Cell Structure and Dimension
  • Cell Structure: Cathode - Solid-state electrolyte - Anode
  • Standard fixture for solid-state electrolyte: 6 mm × 6 mm × 1.5 mm
  • Optional fixtures up to 12 × 12 × 1.5 mm
Springs
  • Test piece is compressed and held in place by two compression springs.
  • Material: SUS 304
  • Spring Rate / Stiffness: 0.588 N/mm (60 g/mm)
  • Dimensions when free: 4 mm OD × 3.2 mm ID × 16 mm L
  • Length under maximum compression: 4.4 mm
  • Please contact MTI to order replacement springs.

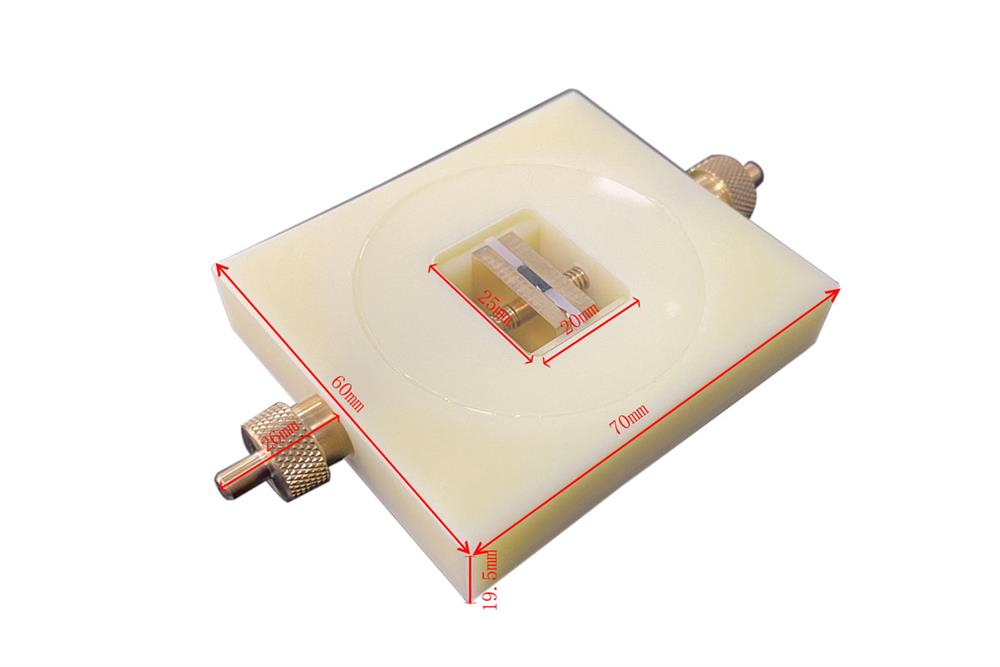

Dimensions
  • Assembly: 105 mm L × 60 mm W × 40mm H
  •   (Click the picture for detail)
Operational Instruction

Warranty
  • Battery Test Cells are considered consumables and are not covered by warranty
  • The gold coating on plates may be dissolved in liquid electrolyte, or even solid-liquid electrolyte. Please only use this type cell to study all-solid-state battery interface.
Application Notes
  • This test cell is compatible with MTI's microscope EQ-MM500T-USB.

  •

  • Microscopy pictures showing Steel-Lithium-Steel interface observation at various magnifications
  • > X400 focus becomes difficult due to glass window.
x 50    x100   x200     X400

(Optical Magnification = objective lens × eye lens
