SKZD-2 Automatic Slurry Feeder for any 8" -15" polishing machine - SKZD2
  • SKZD-2 Automatic Slurry Feeder for any 8" -15" polishing machine - SKZD2
  • SKZD-2 Automatic Slurry Feeder for any 8" -15" polishing machine - SKZD2
  • SKZD-2 Automatic Slurry Feeder for any 8" -15" polishing machine - SKZD2
SKZD-2 Automatic Slurry Feeder for any 8" -15" polishing machine - SKZD2

SKZD-2 Automatic Slurry Feeder for any 8" -15" polishing machine - SKZD2

SKU: skzd2

Price: RFQ

Specifications

 SKZD-2 slurry feeder is designed for both Unipol-802 and Unipol 1502 polishing machines. Also, it can be used for any small lapping and polishing machine to achieve abrasive and polishing slurry feeding automatically. SPECIFICATIONS Features Feeding rate is adjustable via a precision valve and rotating speed The plastic rolling container can take the volume of slurry up to 1.0 Gallon (~3.8L) for long time polishing Can feed any abrasive or polishing slurry with particle size < 40 microns Working Voltage AC 110V or AC 208~240V single-phase selectable Rotation Speed 8~20 RPM Dimensions of the control box and rolling container together L300mm × D200mm × H260mm(Details please refer to the first picture below) Dimensions of the control box L300mm × D200mm × H120mm(Details please refer to the first picture below) Dimensions of the rolling container Ø165mm × L190mm (Details please refer to the second picture below) Dimensions of shipment 18" x 14" x 15" Weight of shipment 21 lbs Application Notes Mixing abrasive ( < 40 microns ) with D.I. water or lubricant, and rotating 10 minutes before opening the valve to feed slurry at the fastest speed. If your abrasive powder size > 40 microns, we will enlarge feeding port diameter upon request A spare 1 gallon rolling slurry container is available at $495/ea Package Model Description Number Price pic SKZD-Container Spare 1-gallon rolling slurry container Optional $495/ea SKZD-Air vent Pre-installed Air vent Optional $9.95/ea


Features
  • Feeding rate is adjustable via a precision valve and rotating speed
  • The plastic rolling container can take the volume of slurry up to 1.0 Gallon (~3.8L) for long time polishing
  • Can feed any abrasive or polishing slurry with particle size < 40 microns
Working Voltage AC 110V or AC 208~240V single-phase selectable
Rotation Speed 8~20 RPM

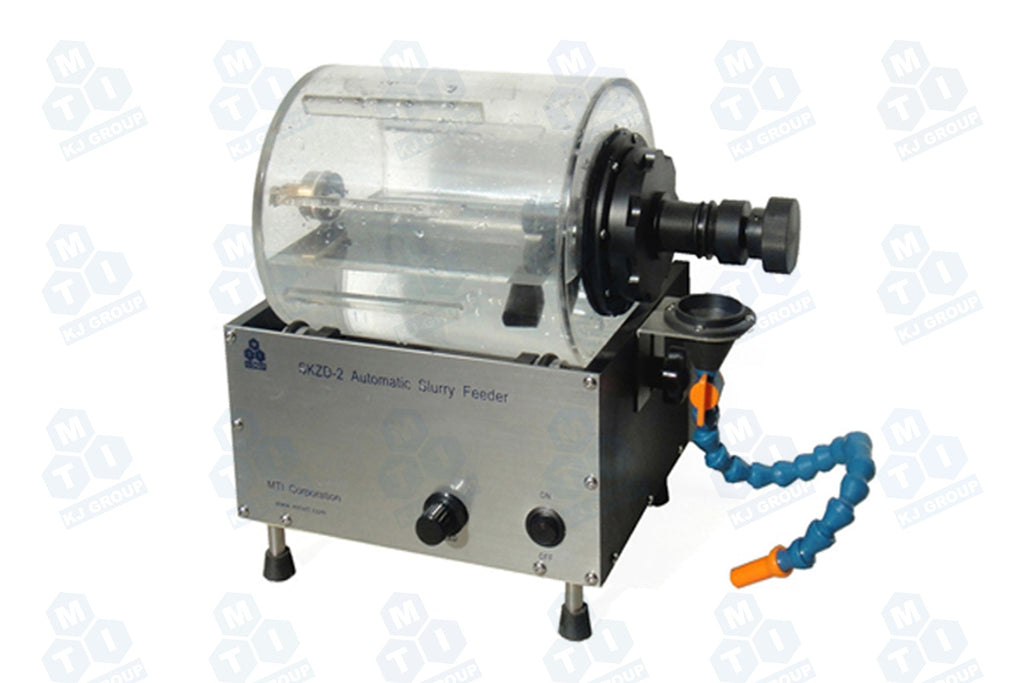

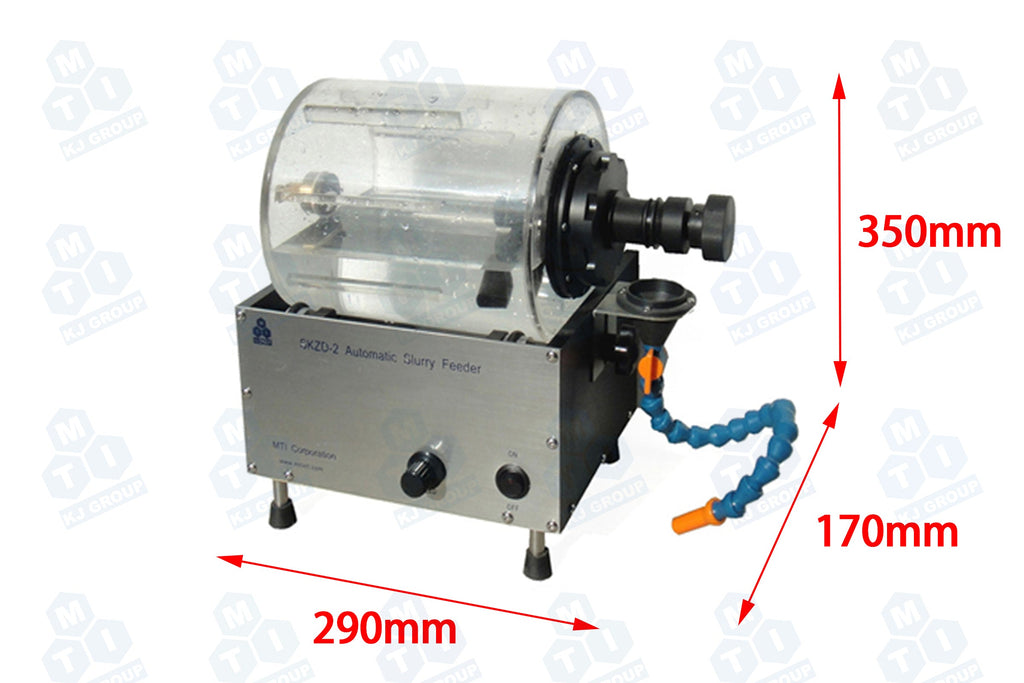

Dimensions of the control box and rolling container together L300mm × D200mm × H260mm(Details please refer to the first picture below)
Dimensions of the control box L300mm × D200mm × H120mm(Details please refer to the first picture below)
Dimensions of the rolling container Ø165mm × L190mm (Details please refer to the second picture below)
Dimensions of shipment 18" x 14" x 15"
Weight of shipment 21 lbs
Application Notes
  • Mixing abrasive ( < 40 microns ) with D.I. water or lubricant, and rotating 10 minutes before opening the valve to feed slurry at the fastest speed.
  • If your abrasive powder size > 40 microns, we will enlarge feeding port diameter upon request
  • A spare 1 gallon rolling slurry container is available at $495/ea
,
Model Description
 		Number  Price pic
SKZD-Container
 		Spare 1-gallon rolling slurry container Optional $495/ea
SKZD-Air vent Pre-installed Air vent Optional $9.95/ea
