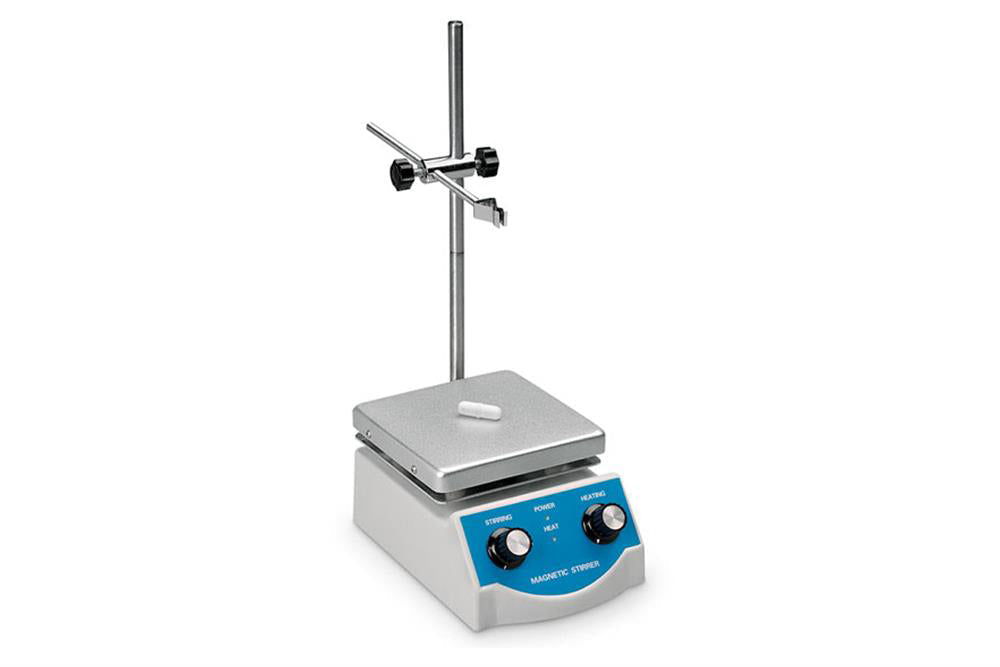

Hot Plate with Magnetic Stirring: 6.7"x6.7" SS Plate Max.300C - SH3

Hot Plate with Magnetic Stirring: 6.7"x6.7" SS Plate Max.300C - SH3

SKU: sh3v220

Price: RFQ

Specifications

Flat top and high-wattage heating elements combine to provide superior heating transfer and fast time-to-boil with Max. working temperature 350 o C. Magnetic stirring technology offers consistent speed control and stronger magnetic coupling. One Magnetic stirring bar is included for a more uniform mixture inside the compound. The integral ring-stand holder accommodates 0.5" (1.3 cm) diameter support rod. Rugged low-profile cast aluminum body provides stability and durability. Accommodates sample volume: 3000 ml. Adjustable speed range from 100 to 1600 rpm.



    • Flat top and high-wattage heating elements combine to provide superior heating transfer and fast time-to-boil with Max. working temperature 350oC.
    • Magnetic stirring technology offers consistent speed control and stronger magnetic coupling. One Magnetic stirring bar is included for a more uniform mixture inside the compound.
    • The integral ring-stand holder accommodates 0.5" (1.3 cm) diameter support rod.
    • Rugged low-profile cast aluminum body provides stability and durability.
    • Accommodates sample volume: 3000 ml.
    • Adjustable speed range from 100 to 1600 rpm.
    •


    ,

    Power
    • 500W max.
    Top plate Surface D
    • 6.7"  (17 cm)
    Heating Surface Material
    • Stainless Steel plate
    Top plate surface W
    • 6.7"  (17 cm)
    Power
    • Both 110V and 220V AC are available in optional bar
    Operating Temp Range C
    • oC - 350 oC
    Stirring Speed Range
    • 100 to 1600
    Application Note

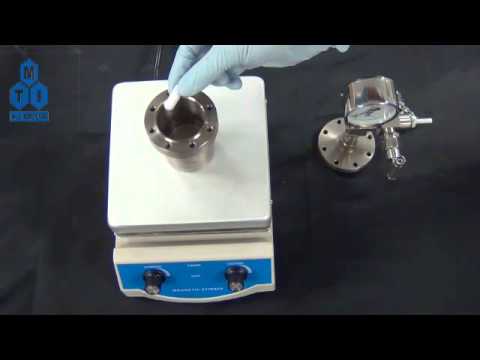

    • How to avoid sample movement
