Semi-Automatic Die Cutter for Pouch Cell Electrodes (Max. 200 Lx200W, mm) - MSK-180-N
  • Semi-Automatic Die Cutter for Pouch Cell Electrodes (Max. 200 Lx200W, mm) - MSK-180-N
  • Semi-Automatic Die Cutter for Pouch Cell Electrodes (Max. 200 Lx200W, mm) - MSK-180-N
  • Semi-Automatic Die Cutter for Pouch Cell Electrodes (Max. 200 Lx200W, mm) - MSK-180-N
  • Semi-Automatic Die Cutter for Pouch Cell Electrodes (Max. 200 Lx200W, mm) - MSK-180-N
Semi-Automatic Die Cutter for Pouch Cell Electrodes (Max. 200 Lx200W, mm) - MSK-180-N

Semi-Automatic Die Cutter for Pouch Cell Electrodes (Max. 200 Lx200W, mm) - MSK-180-N

SKU: semi-automatic-die-cutter-for-pouch-cell-electrodes-max-200-lx200w-mm-msk-180-n

Price: RFQ

Specifications

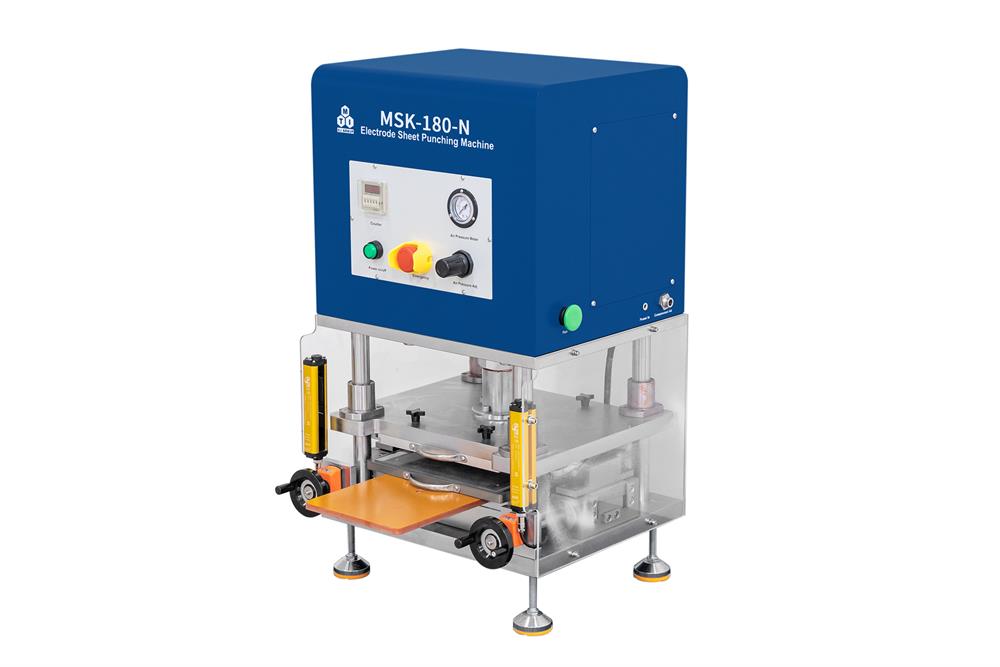

 MSK-180-N is a precision semi-automatic die cutter for pouch cell electrode sheets (Max. 200mm L x 200mm W). It is an updated version of MSK-180 with more stability and better accuracy at reducing the burrs and powder-shedding of the electrode sheets. A necessary tool in the production line of pouch cells to produce specific shapes of cathodes and anodes with current collector tabs. The size of the electrodes it cuts perfectly matches the standard pouches made by the MSK-120 cups forming machine, and the shape of the electrodes it produces is also handy for the later processing steps of tab welding by MSK-800 and electrode stacking by MSK-111A . The IR sensor (Safety Curtain) built in the front of the machine ensures operation safety when electrode sheets are fed from the front. SPECIFICATIONS: Power Single-phase, AC 110V or 220V±10% (DC24V adaptor is included), 50/60Hz, 100W Die Set Dimensions Two standard electrodes (Cathode & Anode) cutting dies are included for immediate use Cathode Die: 56 mm (L) x 43 mm (W) with a 14 mm (L) x 11 mm (W) protruding current collector Anode Die: 58 mm (L) x 45 mm (W) with a 13 mm (L) x 11 mm (W) protruding current collector 2 pcs of electrodes can be produced per cut. Customized dies with Max. dimension 200mm L x200mm W, including current collector, available at extra cost. Please indicates the customized electrode dimension of A,B,C,D in the following diagram. Safety Sensor Built-in IR sensor (Safety Curtain) to protect against hand injuries during electrode feeding. Cutting Accuracy ±0.1mm Air Cylinder 0.5-0.8MPa Air Pressured 3 Tons Max. Pressure Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator pic1 pic2 Product Dimensions 510mm(L) x 550mm(W) x 828mm(H) Net Weight ~162kg (357lbs) Compliance NRTL or CSA certification is available upon request. Warranty One-year limited warranty with lifetime support Shipping Weight ~ 536 Lbs Shipping Dimension 40“ x 28" x 43" Optional & Upgrade You may need a matching case forming machine MSK-120(Please click Pic.1 for more details). Please order the pre-formed pouch cell case and other accessories by clicking Pic.2 & 3 below. For Roll to Roll (R2R) automatic processing function, please check out MSK-180-AM (Pic. 4) Please click the link on the right to order more Consumable Clear Acrylic Sheets . Pic-1 Pic-2 Pic-4 Operation Video Operation Video How to Make Pouch Cells Application Notes A perfect fit for the cases formed by the standard size of MSK-120, with no rough edge, clippings, or creasings

Power
  • Single-phase, AC 110V or 220V±10% (DC24V adaptor is included), 50/60Hz, 100W
Die Set Dimensions
electrode die cutter
  • Two standard electrodes (Cathode & Anode) cutting dies are included for immediate use
    • Cathode Die: 56 mm (L) x 43 mm (W) with a 14 mm (L) x 11 mm (W) protruding current collector
    • Anode Die: 58 mm (L) x 45 mm (W) with a 13 mm (L) x 11 mm (W) protruding current collector
  • 2 pcs of electrodes can be produced per cut.
  • Customized dies with Max. dimension 200mm L x200mm W, including current collector, available at extra cost.
  • Please indicates the customized electrode dimension of A,B,C,D in the following diagram.


Safety Sensor

  • Built-in IR sensor (Safety Curtain) to protect against hand injuries during electrode feeding.
Cutting Accuracy
  • ±0.1mm
Air Cylinder
  • 0.5-0.8MPa Air Pressured
  • 3 Tons Max. Pressure
Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator
pic1         pic2
Product Dimensions
510mm(L) x 550mm(W) x 828mm(H)
Net Weight
  • ~162kg (357lbs)
Compliance
  • NRTL or CSA certification is available upon request.
Warranty
  • One-year limited warranty with lifetime support
Shipping Weight
  • ~ 536 Lbs
Shipping Dimension
  • 40“ x 28" x 43"
Optional & Upgrade
  • You may need a matching case forming machine MSK-120(Please click Pic.1 for more details).
  • Please order the pre-formed pouch cell case and other accessories by clicking Pic.2 & 3 below.
  • For Roll to Roll (R2R) automatic processing function, please check out MSK-180-AM (Pic. 4)
  • Please click the link on the right to order more Consumable Clear Acrylic Sheets.
