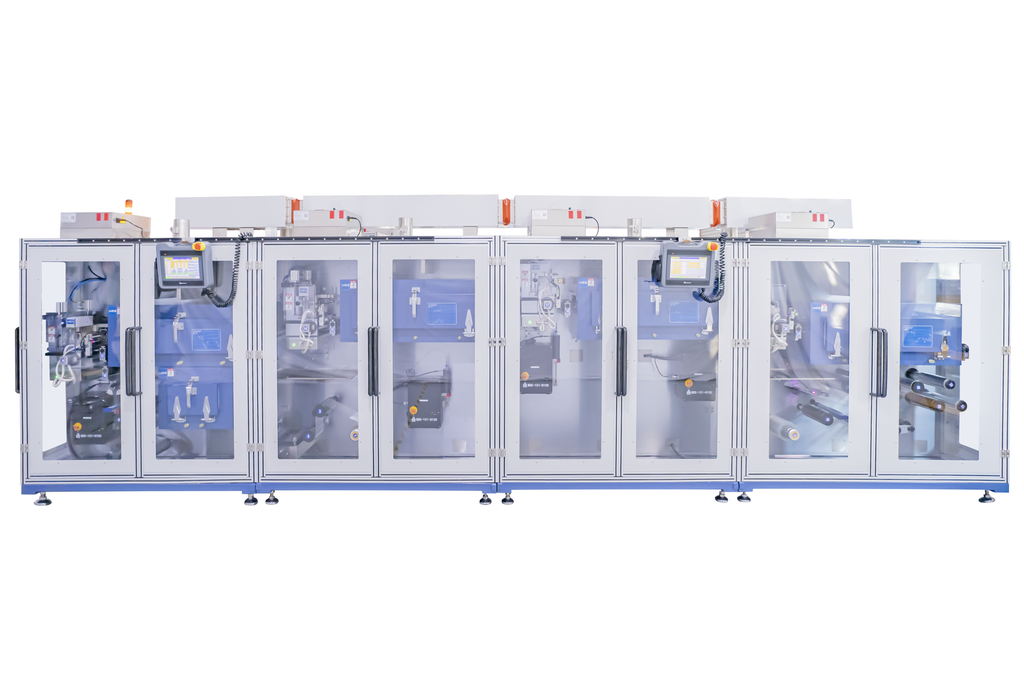

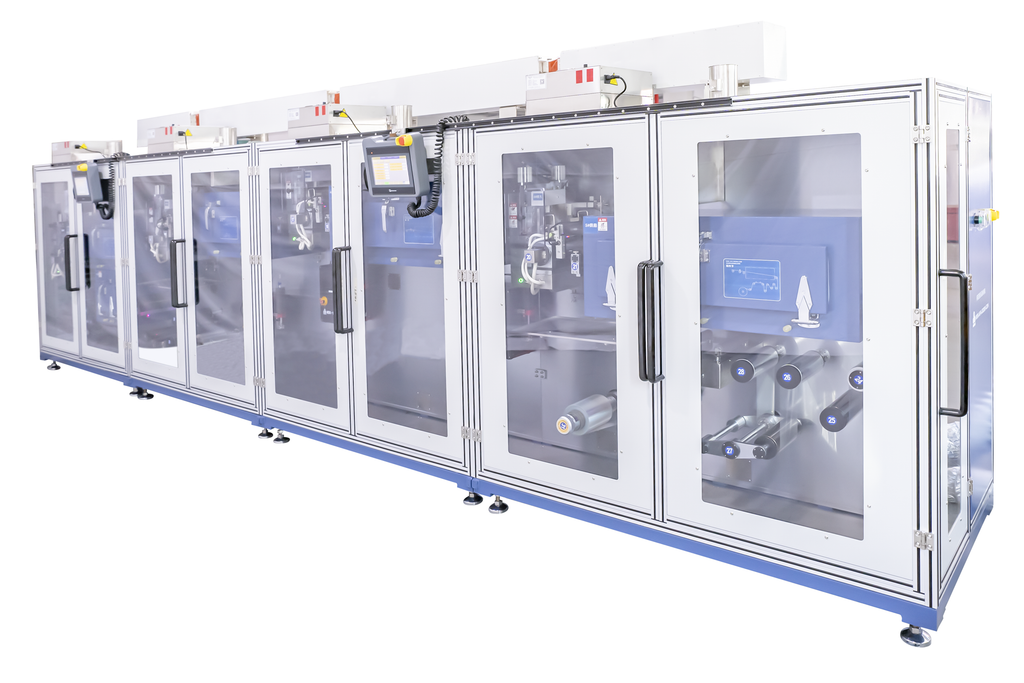

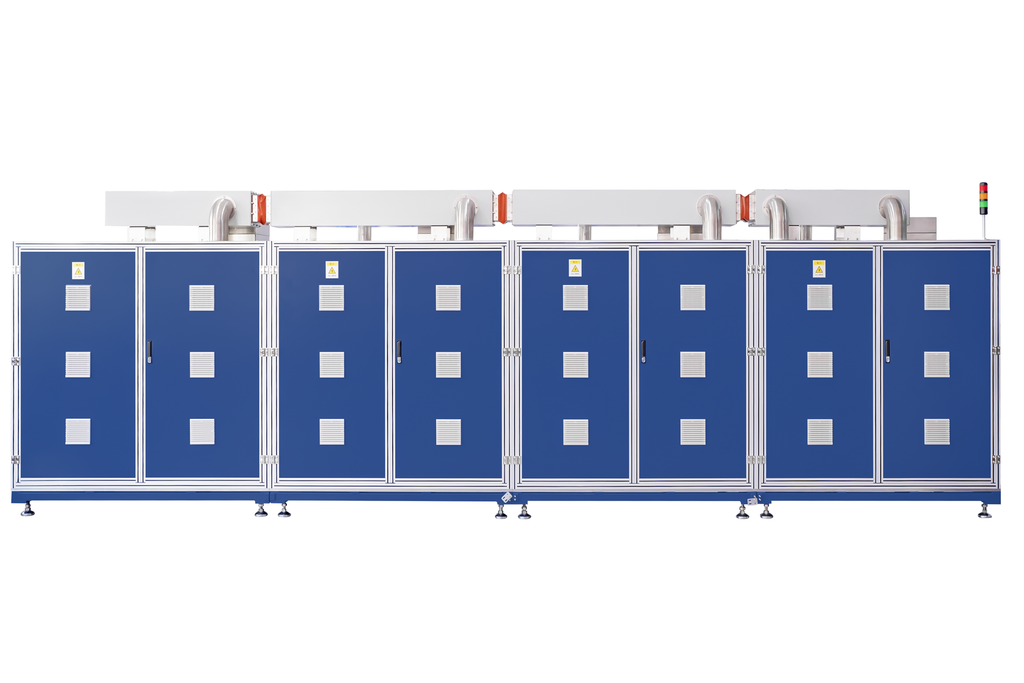

Roll-to-Roll Slot Die Coater for Continuous Multiple Layers Coating of Flexible Perovskite Solar Cells - MSK-AFA-SD200-CDH
  • Roll-to-Roll Slot Die Coater for Continuous Multiple Layers Coating of Flexible Perovskite Solar Cells - MSK-AFA-SD200-CDH
  • Roll-to-Roll Slot Die Coater for Continuous Multiple Layers Coating of Flexible Perovskite Solar Cells - MSK-AFA-SD200-CDH
  • Roll-to-Roll Slot Die Coater for Continuous Multiple Layers Coating of Flexible Perovskite Solar Cells - MSK-AFA-SD200-CDH
  • Roll-to-Roll Slot Die Coater for Continuous Multiple Layers Coating of Flexible Perovskite Solar Cells - MSK-AFA-SD200-CDH
  • Roll-to-Roll Slot Die Coater for Continuous Multiple Layers Coating of Flexible Perovskite Solar Cells - MSK-AFA-SD200-CDH
Roll-to-Roll Slot Die Coater for Continuous Multiple Layers Coating of Flexible Perovskite Solar Cells - MSK-AFA-SD200-CDH

Roll-to-Roll Slot Die Coater for Continuous Multiple Layers Coating of Flexible Perovskite Solar Cells - MSK-AFA-SD200-CDH

SKU: roll-to-roll-slot-die-coater-with-continuous-multiple-layers-for-flexible-perovskite-solar-cells-msk-afa-sd200-cdh

Price: RFQ

Specifications

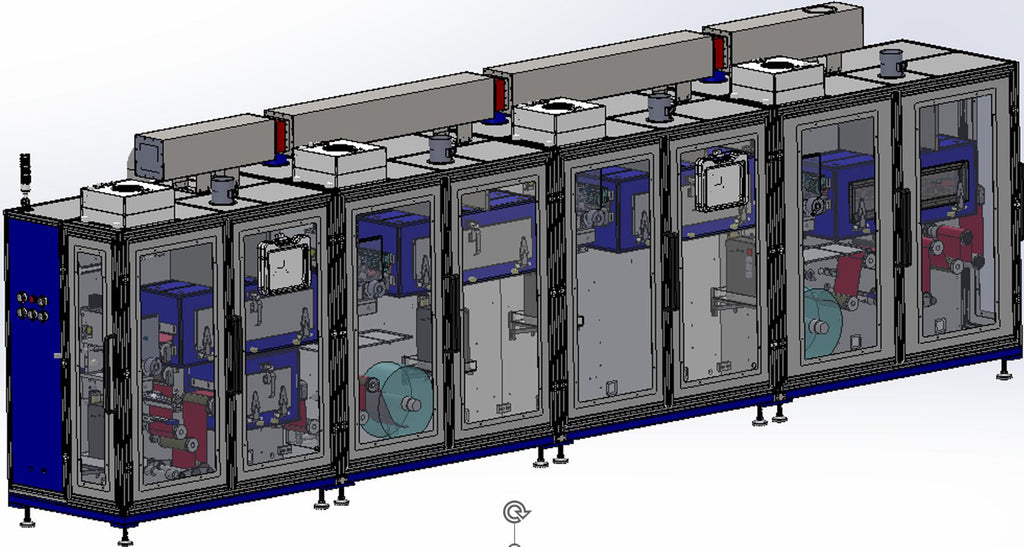

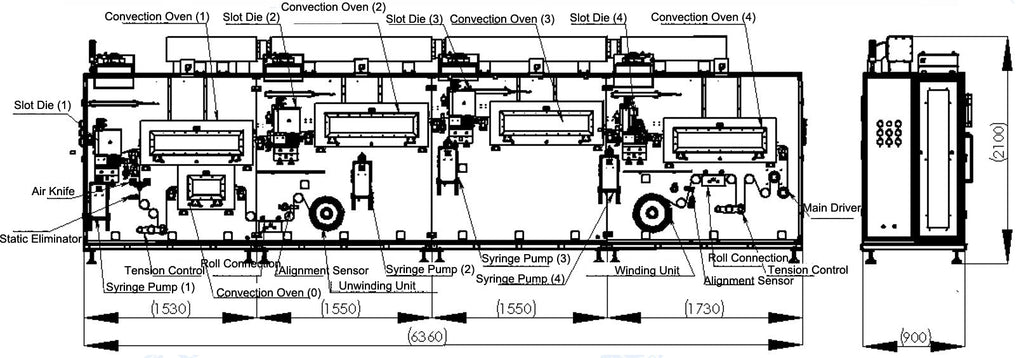

 MSK-AFA-SD200-CDH is a roll-to-roll slot die coater for continuous multiple layer coating, which is specially designed for flexible perovskite solar cell with ETL, perovskite, HTL, and conductive layer. Design Diagram and Configuration SPECIFICATIONS Power AC380V±10%, three-phase, 50/60Hz, 28 kW (AC220V, three-phase can be provided upon request) Coating Mode Continuous coating Coating Thickness 30-50 um (wet film) for perovskite solar cells. The thickness can be 3-500 um (wet film) for other application. Roller Width 200 mm Substrate Width Max. 180 mm Coating Speed 0.1 - 2 m/min Main Driving Motor Servo Motor Steel roller diameter: 80 mm Slot Die Coating width: 50-160 mm by changing shims Single  layer coating, fixing type One set of shims are included, the open mouth is determined by customer. Temperature: Max. 100℃, power:1 kw (for each) Movement: Pneumatic sliding and manual adjustment Steel coating roller: Ф80mm, flatness accuracy: ≤3μm Convection Oven For convection oven (0), length 0.5 mm, 2 kW For convection oven (1,2,3,4), length 1 m, each 4 kW Max. 130 ℃ Electrical heating and generate convection air flow for drying Syringe Pump MSK-151-H100 (customized) Driver: step motor + screw rod SS304, effective volume: 50 mL (I.D. of syringe is Ф25mm) Pump speed: 0.4-60 ml/min Size: L350 x W200 x H500mm, ~15 kg Four units for the whole system Tension Control Roller Swing roller Tension force: Max. 120 N Precise adjusting valve Guiding Roller Diameter: Ф80mm Al roller surface with Cr coating treatment and anodization Winding/Unwinding Rollers 3" diameter for roll loading/unloading Max roll diameter for loading: Ф400mm Max. loading weight: 50 kg Alignment accuracy: ±1mm Dimension L6360*W900*H2100mm Total Weight ~3800 kg

Power
  • AC380V±10%, three-phase, 50/60Hz, 28 kW (AC220V, three-phase can be provided upon request)
Coating Mode
  • Continuous coating

Coating Thickness
  • 30-50 um (wet film) for perovskite solar cells. The thickness can be 3-500 um (wet film) for other application.

Roller Width
  • 200 mm

Substrate Width
  • Max. 180 mm

Coating Speed
  • 0.1 - 2 m/min
Main Driving Motor
  • Servo Motor
  • Steel roller diameter: 80 mm
Slot Die
  • Coating width: 50-160 mm by changing shims
  • Single  layer coating, fixing type
  • One set of shims are included, the open mouth is determined by customer.
  • Temperature: Max. 100℃, power:1 kw (for each)
  • Movement: Pneumatic sliding and manual adjustment
  • Steel coating roller: Ф80mm, flatness accuracy: ≤3μm
Convection Oven
  • For convection oven (0), length 0.5 mm, 2 kW
  • For convection oven (1,2,3,4), length 1 m, each 4 kW
  • Max. 130 ℃
  • Electrical heating and generate convection air flow for drying
Syringe Pump
  • MSK-151-H100 (customized)
  • Driver: step motor + screw rod
  • SS304, effective volume: 50 mL (I.D. of syringe is Ф25mm)
  • Pump speed: 0.4-60 ml/min
  • Size: L350 x W200 x H500mm, ~15 kg
  • Four units for the whole system
Tension Control Roller
  • Swing roller
  • Tension force: Max. 120 N
  • Precise adjusting valve
Guiding Roller
  • Diameter: Ф80mm
  • Al roller surface with Cr coating treatment and anodization
Winding/Unwinding Rollers
  • 3" diameter for roll loading/unloading
  • Max roll diameter for loading: Ф400mm
  • Max. loading weight: 50 kg
  • Alignment accuracy: ±1mm
Dimension
  • L6360*W900*H2100mm
Total Weight
  • ~3800 kg
