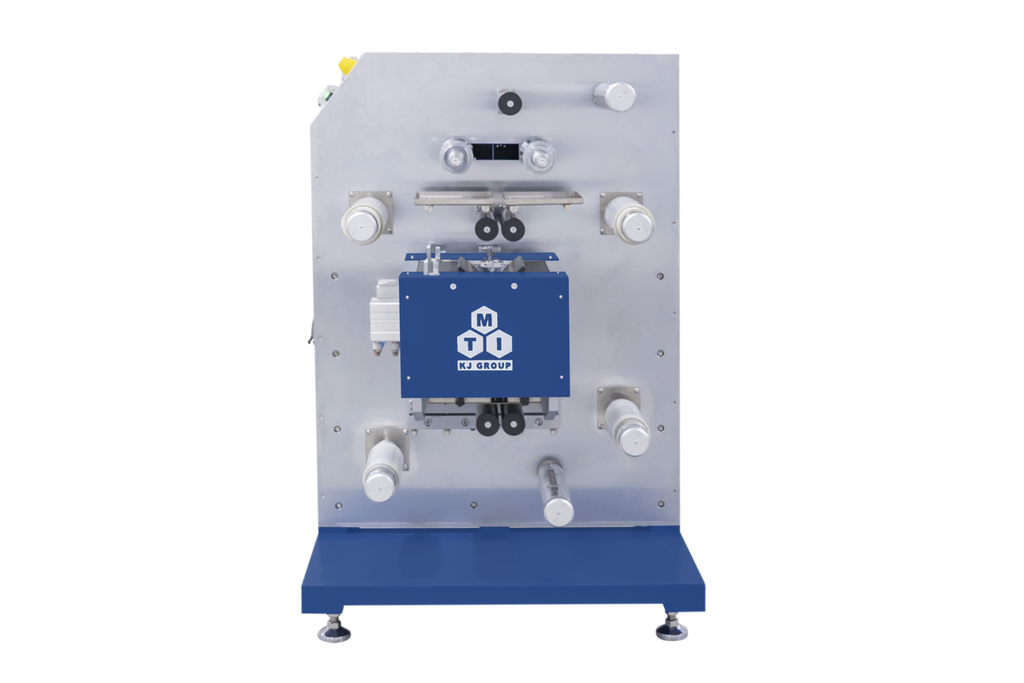

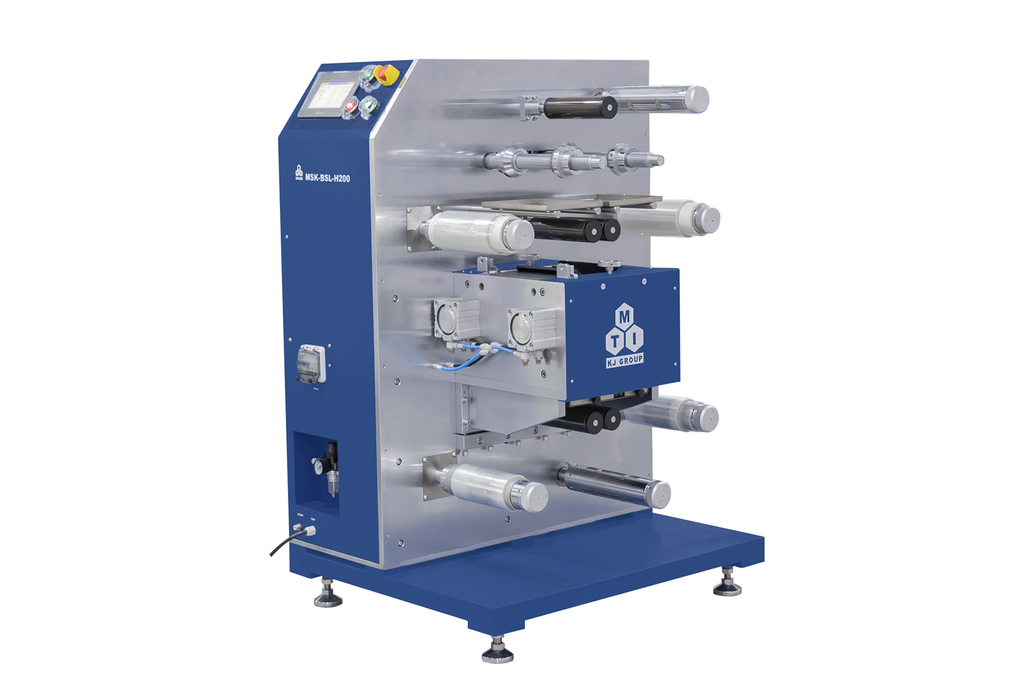

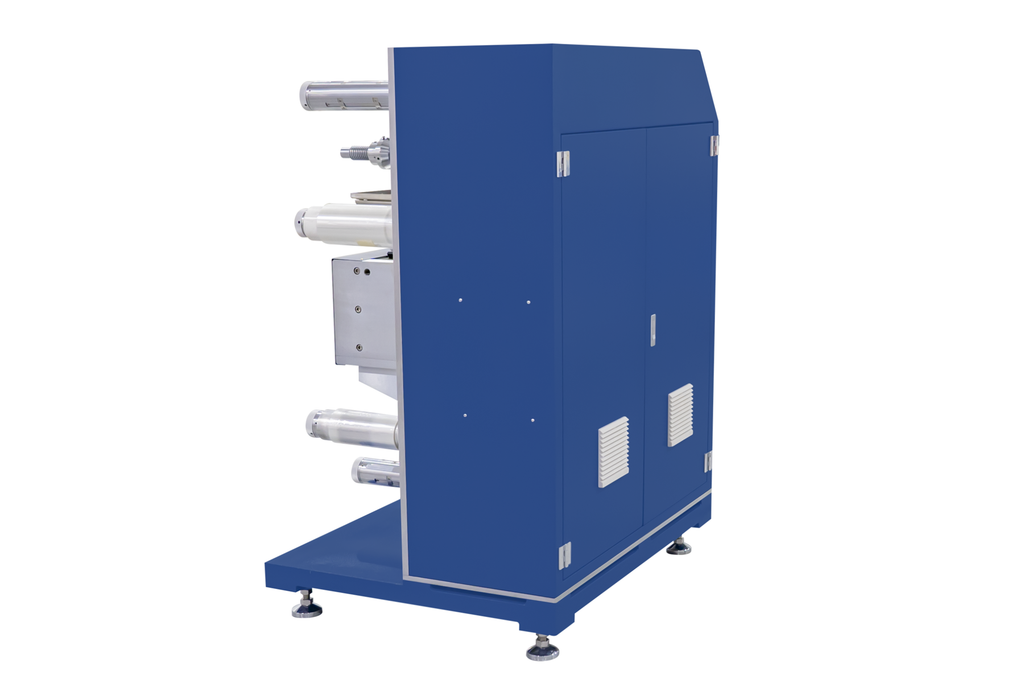

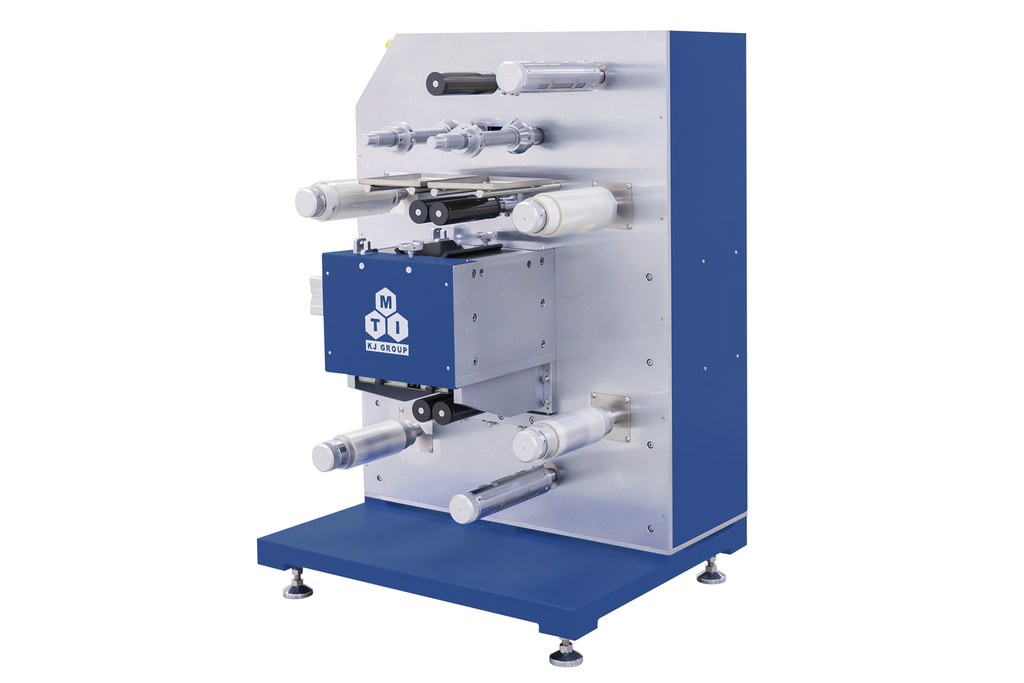

Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120℃, 0.6 T) - MSK-BSL-H200
  • Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120℃, 0.6 T) - MSK-BSL-H200
  • Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120℃, 0.6 T) - MSK-BSL-H200
  • Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120℃, 0.6 T) - MSK-BSL-H200
  • Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120℃, 0.6 T) - MSK-BSL-H200
  • Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120℃, 0.6 T) - MSK-BSL-H200
  • Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120℃, 0.6 T) - MSK-BSL-H200
Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120℃, 0.6 T) - MSK-BSL-H200

Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120℃, 0.6 T) - MSK-BSL-H200

SKU: roll-to-roll-hot-laminator-for-tri-layer-composite-w-200-mm-max-120-0-6-t-msk-bsl-h200

Price: RFQ

Specifications

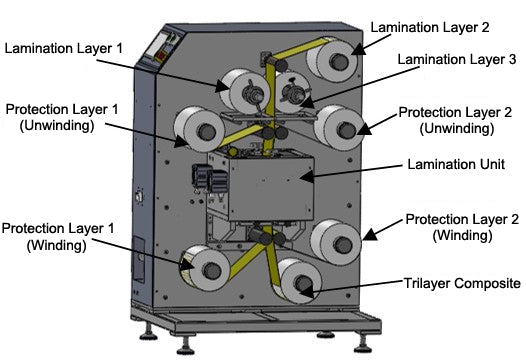

 MSK-BSL-H200 is a roll-to-roll hot laminator for forming trilayer composite. The protection layers can be used to protect the lamination layers during rolling press and then being removed after press. SPECIFICATIONS: Power ACAC220V±10%, 50/60Hz, single phase, 3.75 kW Rollers One stainless-steel roller, Ф120mm One rubber roller, Ф120mm Laminating Width The roller width is 200 mm The maximum width for lamination layers is 180 mm Laminating Speed Max. 1m/min Lamination Pressure Max. 0.6 T Lamination Gap Max. 2 mm (gauge resolution is 1 um) Lamination Temperature Max. 120℃ (adjustable) Winding Roller Diameter Max. Ф200mm Carboard diameter is 3" for loading on winding/unwinding roller Machine Size L1000 x W860 x H1500mm Weight ~600 kg Compliance NRTL or CSA certification is available upon request at the extra cost

Power
  •  ACAC220V±10%, 50/60Hz, single phase, 3.75 kW
Rollers
  • One stainless-steel roller, Ф120mm
  • One rubber roller, Ф120mm
Laminating Width
  • The roller width is 200 mm
  • The maximum width for lamination layers is 180 mm
Laminating Speed
  • Max. 1m/min
Lamination Pressure
  • Max. 0.6 T
 Lamination Gap
  • Max. 2 mm (gauge resolution is 1 um)
Lamination Temperature
  • Max. 120℃ (adjustable)
Winding Roller Diameter
  • Max. Ф200mm
  • Carboard diameter is 3" for loading on winding/unwinding roller
Machine Size

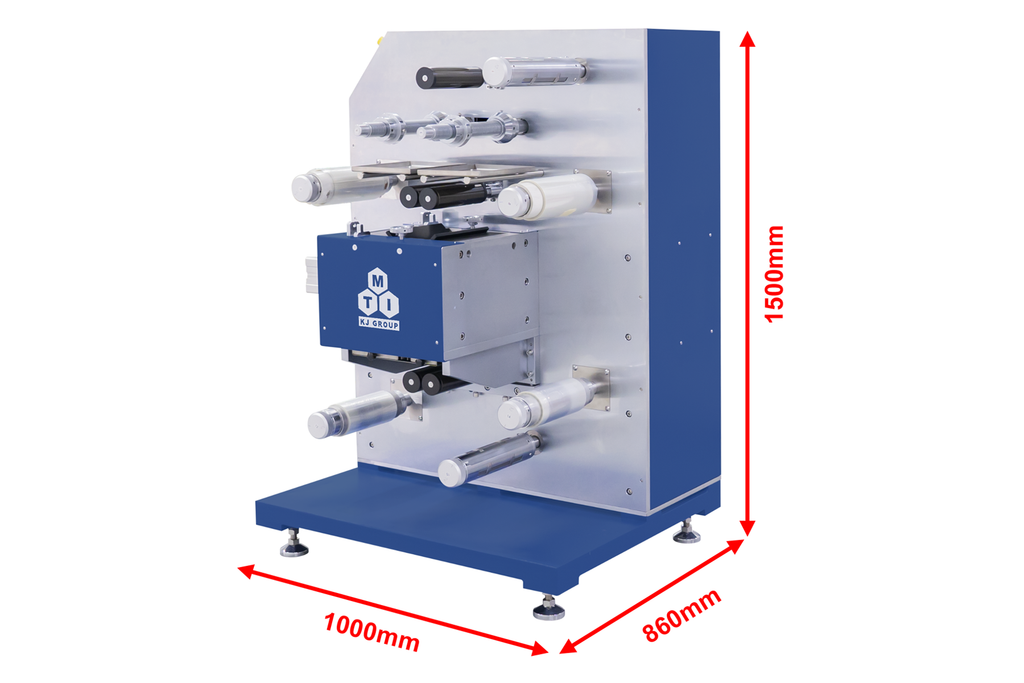

  • L1000 x W860 x H1500mm
Weight
  • ~600 kg
Compliance
  • NRTL or CSA certification is available upon request at the extra cost
